Page HANWHA TECHWIN 147 SM471 PLUS Axis IO Board (1/13) NO. Lev . PA R T N O . P ART NAME Q'T Y Old No. Supply Supply L T Reference 1 AM03-0055 28A CABLE ASSY -AXIO_BD_1_P WR 1 SM471-SC007-1 2 AM03-0206 55A CABLE AS…
Page
HANWHA TECHWIN
146
SM471
PLUS

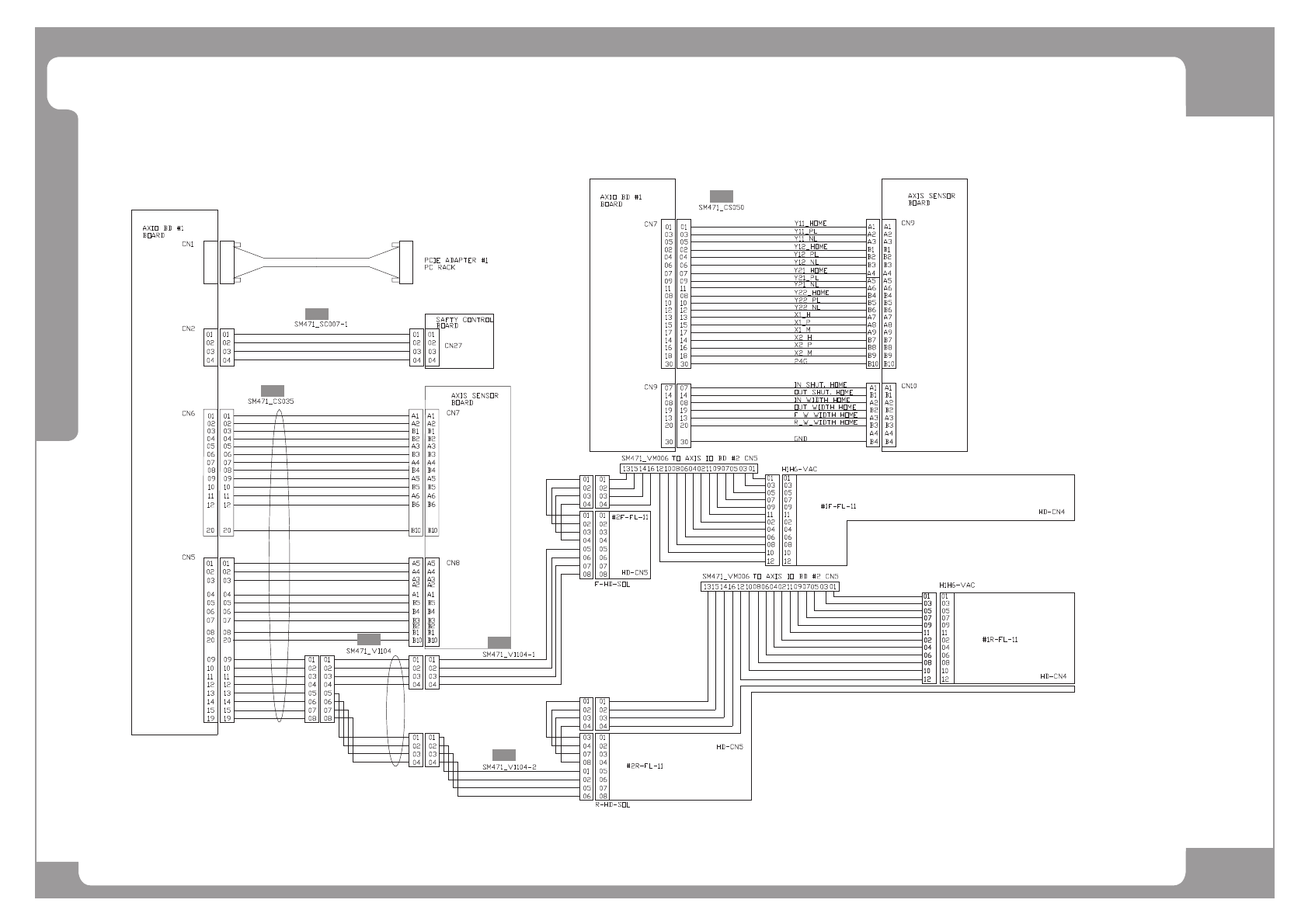

Axis IO Board (1/13)
^4`
^5`
^7`
^6`
^8`
^9`
Page
HANWHA TECHWIN
147
SM471
PLUS
Axis IO Board (1/13)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-005528A CABLE ASSY-AXIO_BD_1_PWR 1 SM471-SC007-1
2 AM03-020655A CABLE ASSY-AXIS_SNS_BD_CN7-8_CN9-10 1 AM03-008917A SM471-CS035
3 AM03-005538B CABLE ASSY-HD_VAC-BLOW_CTRL 1 AM03-005538A SM471-VI104
4 AM03-005539B CABLE ASSY-HD1_VAC-BLOW_CTRL 1 SM471-VI104-1
5 AM03-020633A CABLE ASSY-AXIO_BD_3_RFD_CAN_J8L-10L 1 AM03-005540B/ AM03-005540C SM471-VI104-2
6 AM03-020655A CABLE ASSY-AXIS_SNS_BD_CN7-8_CN9-10 1 AM03-008918A SM471-CS050
Page
HANWHA TECHWIN
148
SM471
PLUS

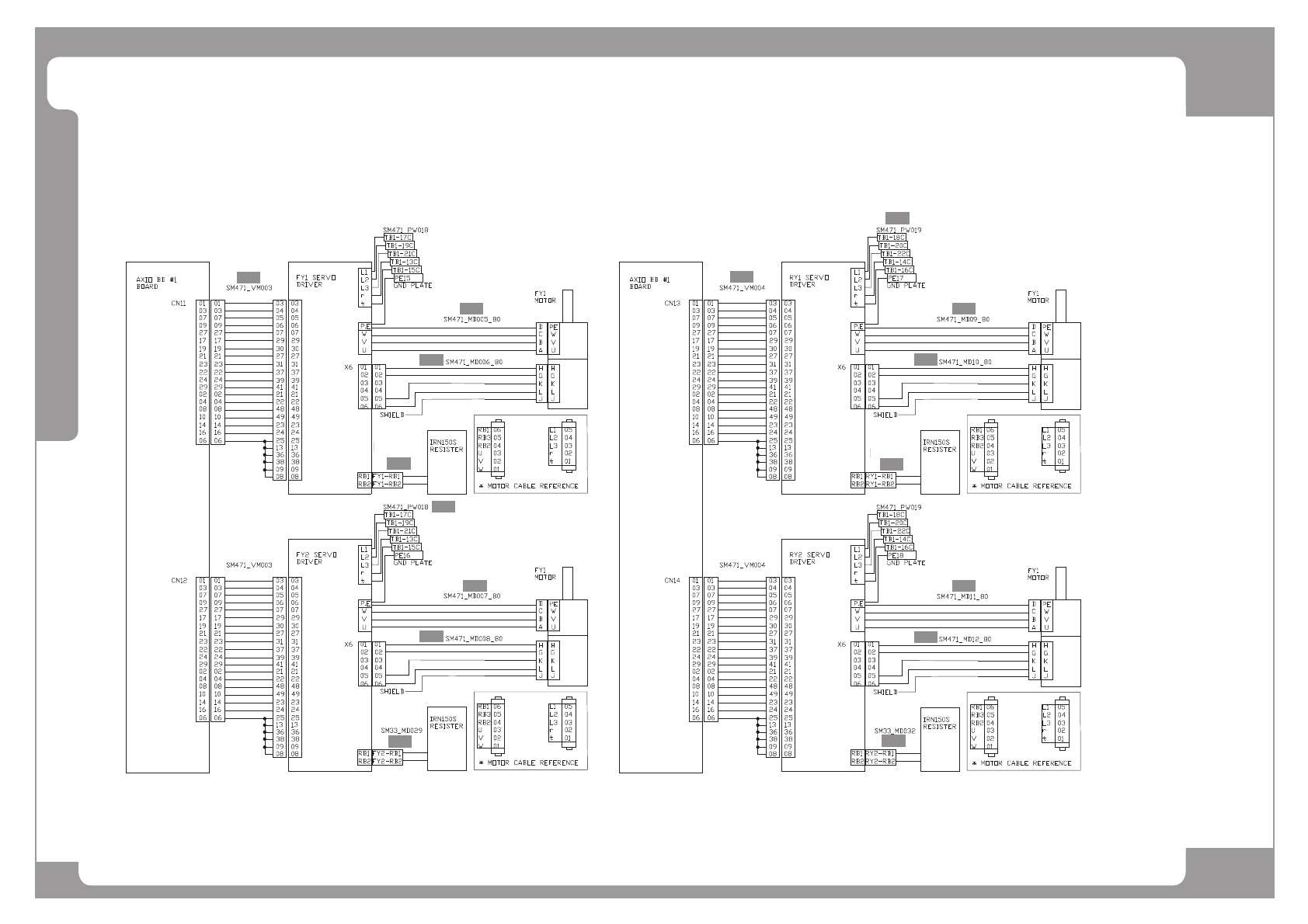

Axis IO Board (2/13)
[1]
[13]
[14]
[9]
[11]
[12]
[10]
[4]
[2]
[3]
[5]
[6]
[7]
[8]
[16]
[15]
SM471_M D006_80
SM471_MD010_80
