SM471_PLUS_TRM(Ver1.1_CS16.15) - 第154页
Page HANWHA TECHWIN 150 SM471 PLUS Axis IO Board (3/13) ^4` ^6` ^7` ^5` ^8` ^<` ^:` ^9` ^;`
Page
HANWHA TECHWIN
149
SM471
PLUS
Axis IO Board (2/13)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-005557B CABLE ASSY-FY1_FY2_DRV_COMMAND 2 SM471-VM003
2 AM03-020620A CABLE ASSY-FY1 MOTOR PWR_90 1 AM03-008735A SM471-MD005_80
3 AM03-020616A CABLE ASSY-FY1 MOTOR ENC_90 1 AM03-008736A SM471-MD006_80
4 AM03-020616A CABLE ASSY-FY1 MOTOR ENC_90 1 AM03-008736A SM471_MD028
5 AM03-005493B CABLE ASSY-FY1_FY2_SERVO_POWER 2 AM03-005493A SM471_PW018
6 AM03-020618A CABLE ASSY-FY2 MOTOR PWR_90 1 AM03-008744A SM471-MD007_80
7 AM03-020617A CABLE ASSY-FY2 MOTOR ENC_90 1 AM03-008739A SM471-MD008_80
8 J90831185A FY2_REGEN_RESISTOR_CABLE_ASSY 1 SM33_MD029
9 AM03-020621A CABLE ASSY-RY1 MOTOR PWR_90 1 AM03-008745A SM471-MD009_80
10 AM03-020613A CABLE ASSY-RY1_MOTOR_ENC_90 1 AM03-008746A SM471-MD010_80
11 AM03-020619A CABLE ASSY-RY2 MOTOR PWR_90 1 AM03-008747A SM471-MD011_80
12 AM03-020614A CABLE ASSY-RY2 MOTOR ENC_90 1 AM03-008748A SM471-MD012_80
13 AM03-005558B CABLE ASSY-RY1_RY2_DRV_COMMAND 2 SM471-VM004
14 AM03-005494B CABLE ASSY-RY1_RY2_SERVO_POWER 2 AM03-005494A SM471_PW019
15 J90831188A RY2_REGEN_RESISTOR_CABLE_ASSY 1 SM33-MD032
16 AM03-020613A CABLE ASSY-RY1_MOTOR_ENC_90 1 AM03-008746A SM471-MD031
Page
HANWHA TECHWIN
150
SM471
PLUS

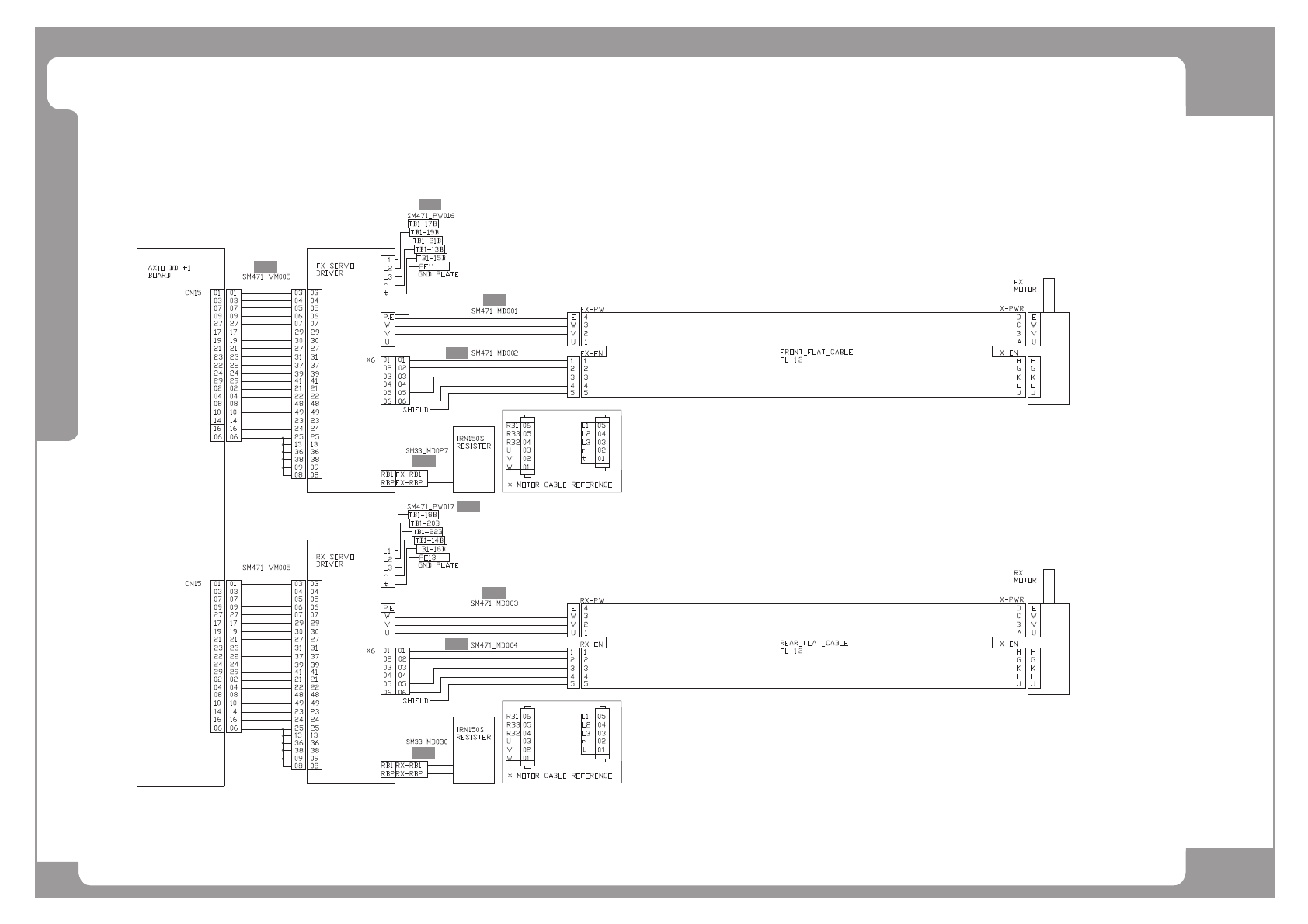

Axis IO Board (3/13)
^4`
^6`
^7`
^5`
^8`
^<`
^:`
^9`
^;`
Page
HANWHA TECHWIN
151
SM471
PLUS
Axis IO Board (3/13)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-005559B CABLE ASSY-FX_RX_DRV_COMMAND 2 SM471-VM005
2 AM03-014723 CABLE ASSY-FX,FS SERVO POWER 1 AM03-005491A SM471_PW016
3 AM03-008741A CABLE ASSY-FX_MOTOR_PWR 1 SM471_MD001
4 AM03-008740A CABLE ASSY-FX_MOTOR_ENC 1 SM471_MD002
5 J90831183A FX_REGEN_RESISTOR_CABLE_ASSY 1 SM33-MD027
6 J90831186A RX_REGEN_RESISTOR_CABLE_ASSY 1 SM33_MD030
7 AM03-008742A CABLE ASSY-RX_MOTOR_PWR 1 SM471_MD003
8 AM03-015477B CABLE ASSY-RX_MOTOR_ENC 1 AM03-008743A SM471_MD004
9 AM03-014724B CABLE ASSY-RX,RS SERVO POWER 1 AM03-005492A SM471_PW017
