Page HANWHA TECHWIN 22 SM471 PLUS Feeder Base Ass’y - DC (3/4) 3 4 CAN FEEDER EXTENSION B OARD LC1D096BD LC1D096BD CAN CONVEYO R BOARD 5 6 5 2 1
Page
HANWHA TECHWIN
21
SM471
PLUS
Feeder Base Ass’y - DC (2/4)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 HP06-900050 UNION Y FITTING 1
2 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 1 HP06-900047
3 HP09-900162 SILENCER AN101-01 4
4 J7057247A POSITIONNING GUIDE[J7057247A] 2
5 J71570100C GUIDE BLOCK 2
6 HP14-900026 SOLENOID VALVE [K180-4E1-21-DC24V] 4
7 AM03-006815A ASSY,FEEDER BASE-DC BLOCK L 1
7-1 HP14-900090 SPEED CON[ASP330F-01-06S] 1
7-2 HP06-900293 ELBOW FITTING[PT18EF] 2
7-3 HP14-900089 SPEED CON[AS2201F-01-06S] 1
7-4 J6710104B STRAIGHT FITTING[KQ2H04-00/PU4] 1 HP06-900093
7-5 HP06-900299 COUPLER[KD-M5-SA34697KR] 1
7-6 EP19-900112 PHOTO SENSOR[EE-SY672] 1
8 AM03-006816A ASSY,FEEDER BASE-DC BLOCK R 1
8-1 FC09-002061A BRACKET-DC-SME_SENSOR_BKT 1
Page
HANWHA TECHWIN
22
SM471
PLUS

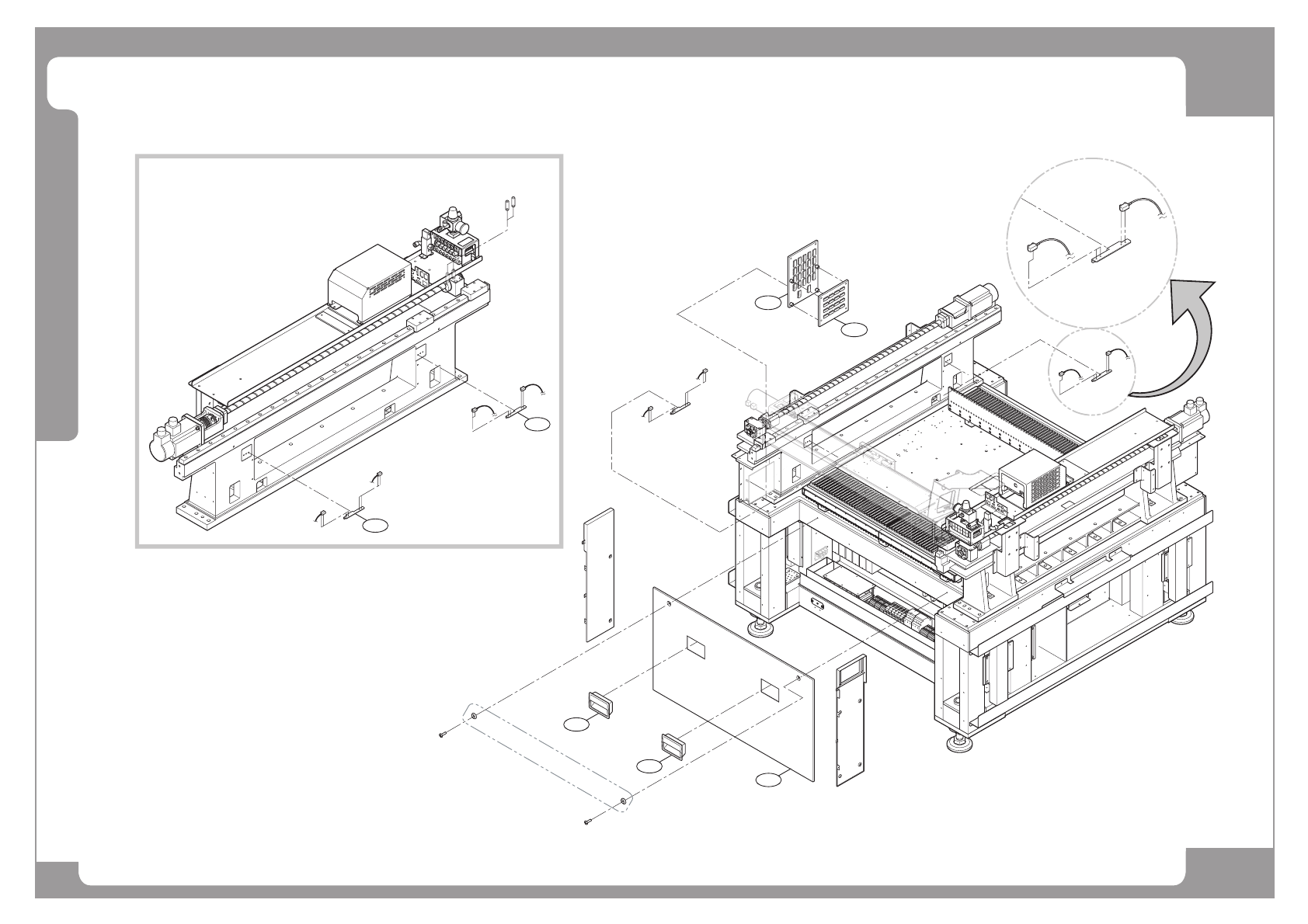

Feeder Base Ass’y - DC (3/4)
3
4
CAN FEEDER EXTENSION B
OARD
LC1D096BD
LC1D096BD
CAN CONVEYO
R BOARD
5
6
5
2
1
Page
HANWHA TECHWIN
23
SM471
PLUS
Feeder Base Ass’y - DC (3/4)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J91741071A FEEDER_INPUT_EXT_BOARD VER 1.1 1
2 AM03-015857C ASSY,BOARD-FEEDER IO VER 2.0 1 AM03-015857B
3 FC09-000977A FRONT SENSOR BKT2 1 J70540267B
4 FC09-000976A FRONT SENSOR BKT1 1 J70540266B/ J70540266C
5 FC29-900144 DRAWER PULL [HD-108] 2
6 FC15-001297A COVER LFM DC 1
