Page HANWHA TECHWIN 23 SM471 PLUS Feeder Base Ass’y - DC (3/4) NO. P ART NO. P ART NAME Q'TY Old No. Stoc k Apply Reference 1 J91741071A FEEDER_INPUT_EXT_BOARD VER 1.1 1 2 AM03-015857 C ASSY ,BOARD-FEEDER IO VER 2.0…
Page
HANWHA TECHWIN
22
SM471
PLUS
Feeder Base Ass’y - DC (3/4)
3
4
CAN FEEDER EXTENSION B
OARD
LC1D096BD
LC1D096BD
CAN CONVEYO
R BOARD
5
6
5
2
1
Page
HANWHA TECHWIN
23
SM471
PLUS
Feeder Base Ass’y - DC (3/4)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J91741071A FEEDER_INPUT_EXT_BOARD VER 1.1 1
2 AM03-015857C ASSY,BOARD-FEEDER IO VER 2.0 1 AM03-015857B
3 FC09-000977A FRONT SENSOR BKT2 1 J70540267B
4 FC09-000976A FRONT SENSOR BKT1 1 J70540266B/ J70540266C
5 FC29-900144 DRAWER PULL [HD-108] 2
6 FC15-001297A COVER LFM DC 1
Page
HANWHA TECHWIN
24
SM471
PLUS
Feeder Base Ass’y - DC (4/4)

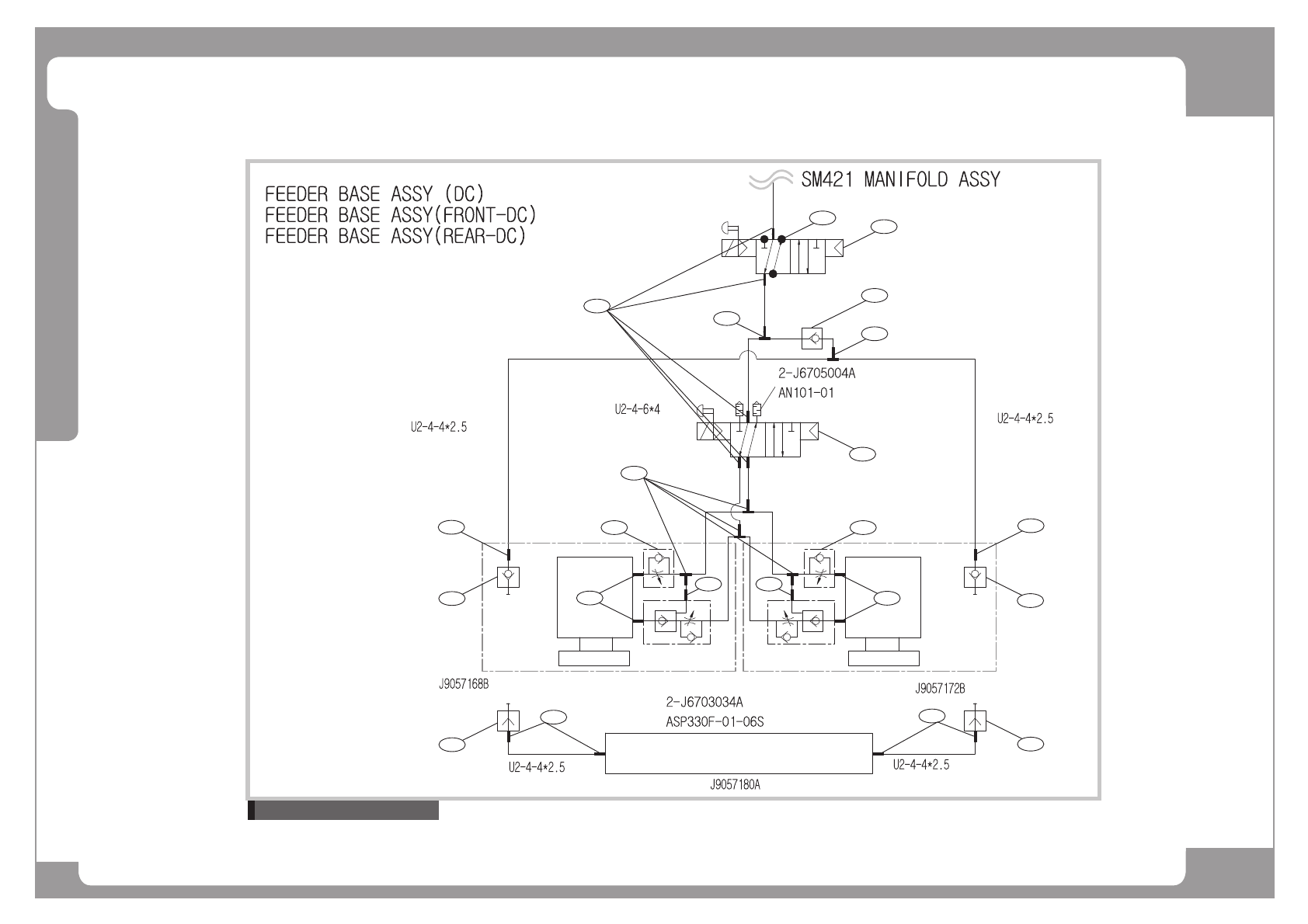

Reference to Air Ass'y
ڡۀۀڿۀۍٻڝڼێۀٻڃڟڞڄ
1
1
2
3
3
6
6
2
2
4
5 5
4
10
11
12
7
10
9
8
12
2
