Page HANWHA TECHWIN 77 SM471 PLUS Air Ass’y (5/6) NO. Lev . PA R T N O . P ART NAME Q'TY Old No. Supply Supply L T Reference 1 HP14-0009 78 V AL VE,SOLENOID-VUVG_L18_M52 1 2 HP06-900204 FITTING SQL10-02S(WHITE ) 1 3…
Page
HANWHA TECHWIN
76
SM471
PLUS

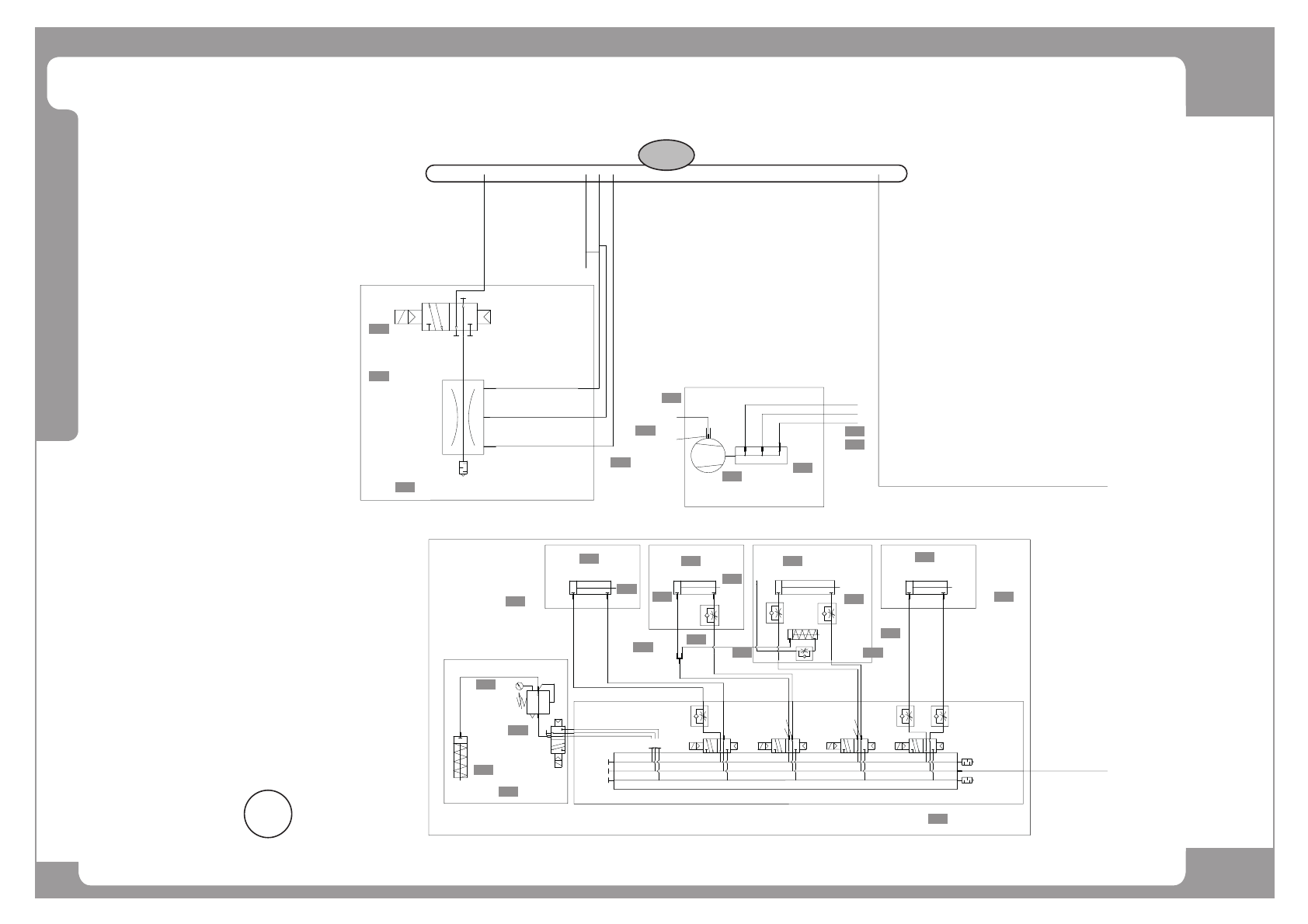

Air Ass’y (5/6)
D
A-B
VACUUM GENERATOR (AIR OPTION)
VACUUM GENERATOR (AIR OPTION)
HP03-001008
CQ2B12-30D
HP03-900015
WTS10*30-RS2
HP03-900013
CM2C32-50-XC3BB
HP06-900010
M-5HLH-4
HP06-900047
SQL04-M5
2-HP06-900056
KQ2L04-01
HP06-900263
M-5H-4
VACUUM PUMP (AIR OPTION)
초기 진공도달압 : -93.3 kPa 이하
교체
기준
: -87 kPa
VACUUM PUMP (OPTION)
HP06-900054
KQ2U04-00
3-HP06-900027
KQ2L04-M5
FRONT CONVEYOR ASS'Y
FITTING KQ2R10-12
(GENERATOR OPTION 㢰 ᷱ㟤
㥐ᶤ䚌Ḕ ⵤ㉔䚔 ᶷ)
HP11-000058
P6010-AK-01-LA52SG
HP06-900204
SQL10-02S
HP03-900017
BDAS6X5-1A-ZC153A2
HP14-000718
SOLENOID VALVE ASS'Y
SY3120-05-CJQZ1771
U2-4-4*2.5(BLUE)
U2-4-4*2.5(YELLOW)
U2-4-4*2.5(BLACK)
HP03-900054
ACP1B16-20T-R6224
2-HP14-900085
SS4-M5M-A
미터 아웃
HP06-900027
KQ2L04-M5
HP14-900083
AS1201F-M5
-04-X214
미터
아웃
3-KPT18
U2-4-8*5
'a'
'b'
'a'
'b'
'c'
'c'
ADAPTER M3/4"-F1/2"
ELBOW FITTING 12-04S
ADAPTER M3/4"-F1/2"
ELBOW FITTING 12-04S
ELBOW FITTING 04-01S
HP11-000059
VACUUM PUMP
KHA400A-301-G1
HP06-000250
KQ2VT12-03S
HP06-000234 / KQ2R08-12
HP06-900046 / KQ2R04-08
FC28-000105
STRAIGHT NIPPLE
M3/8-ID9.5
J67191083A
HOSE BAND 1" W8
HP13-000042
N2-4-12x9MW, 320mm
SS5Y3-20-05
2-AN10-01
KQ2H08-01S
4-SY3120-5MZ-M5
EB
P
EA
SY3000-26-9A
2-AS1211F-M5-04
미터 인
KQ2L04-M5A
KQ2W04-M5A
A
B
A
B
KQ2L04-M5A
KQ2W04-M5A
A
B
KQ2W04-M5A
A
B
2-AS1211F-M5-04
미터 인
U2-4-4*2.5(BLUE)
HP14-900088
AS1211F-M5-04
미터 인
HP06-900255
KQ2H04-M5
U2-4-4*2.5(BLUE)
U2-4-4*2.5(BLACK)
U2-4-4*2.5(BLUE)
U2-4-4*2.5(BLACK)
A
B
HP14-000725
SOLENOID VALVE
SY3120-5LZ-CJQZ1876
HP09-900109
REGULATOR
AR10-M5BG
HP03-900044
CQ2B6-2-CJK2341
HP14-000978
SOLENOID VALVE
VUVG_L18_M52
3-DIN908-G1/4
2-QSL-E-1/4-10
VUVG-L18-M52-RT-G14-1H2L
STOPPER ASSY(WORK)
STOPPER ASSY(IN or OUT)
ANC ASSY
BUT ASSY
EDGE FIXER OPTION (SPECIAL)
^4`
^5`
^6`
^7`
^8`
^9`
^:`
^43`
^;`
^<`
^44`
^45`
^46`
^49`
^47`
^48`
^43`
^4:`
^56`
^55`
^4;`
^4<`
^53`
^57`
^58`
^59`
^5:`
^5;`
^54`
^5<`
Page
HANWHA TECHWIN
77
SM471
PLUS
Air Ass’y (5/6)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 HP14-000978 VALVE,SOLENOID-VUVG_L18_M52 1
2 HP06-900204 FITTING SQL10-02S(WHITE) 1
3 HP11-000058 PUMP-P6010-AK-01-LA52SG 1
4 HP13-000042 TUBE-NYLON TUBE N2-4-12x9-MW;12,OD12/ID9 1
5 FC28-000105 NIPPLE-STRAIGHT NIPPLE M3/8-ID9.5;BRASS 1
6 J67191083A (OLD_ERP)HOSE_BAND 1",W8 1
7 HP11-000059 PUMP-PUMP KHA400A-301-G1 1
8 HP06-000234 FITTING-KQ2R08-12;STRAIGHT 1
9 HP06-900046 JOINT KQ2R04-08 1
10 HP06-000250 FITTING-FITTING KQ2VT12-03S;ELBOW 1
11 HP03-001008 CYLINDER-STOPPER CYLINDER;1.0MPA,30MM 1
12 HP06-900263 HOSE NIPPLE [M-5H-4](D/C) 1
13 HP06-900010 ELBOW FITTING [M-5HLH-4] 1
14 HP03-900015 STOPPER CYLINDER 1 [WTS10*30-RS2] 1
15 HP06-900255 STRAIGHT FITTING KQ2H04-M5/SQL04-M5-W 1
16 HP06-900047 ELBOW FITTING 1
17 HP03-900017 AIR CYLINDER BDAS 6X5-1A-ZC153A2 1
18 HP14-900085 SPEED CONTROLLER [SS4-M5MA] 2
19 HP03-900054 AIR_CYLINDER 1
20 HP14-900088 SPEED CONTROLLER[AS1211F-M5-04] 1
21 HP06-900054 UNION Y FITTING[KQ2U04-00] 1
22 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 1
23 HP03-900013 CYLINDER CM2C32-50-XC3BB 1
24 HP06-900056 ELBOW FITTING KQ2L04-01/SQL04-01S-W 2
25 HP09-900109 REGULATOR 1
26 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 3
27 HP14-000725 VALVE,SOLENOID-SY3120-5LZ-CJQZ1876 1
28 HP03-900044 CYLINDER 1
29 HP14-000718 VALVE,SOLENOID-SY3120-05-CJQZ1771 1
Page
HANWHA TECHWIN
78
SM471
PLUS

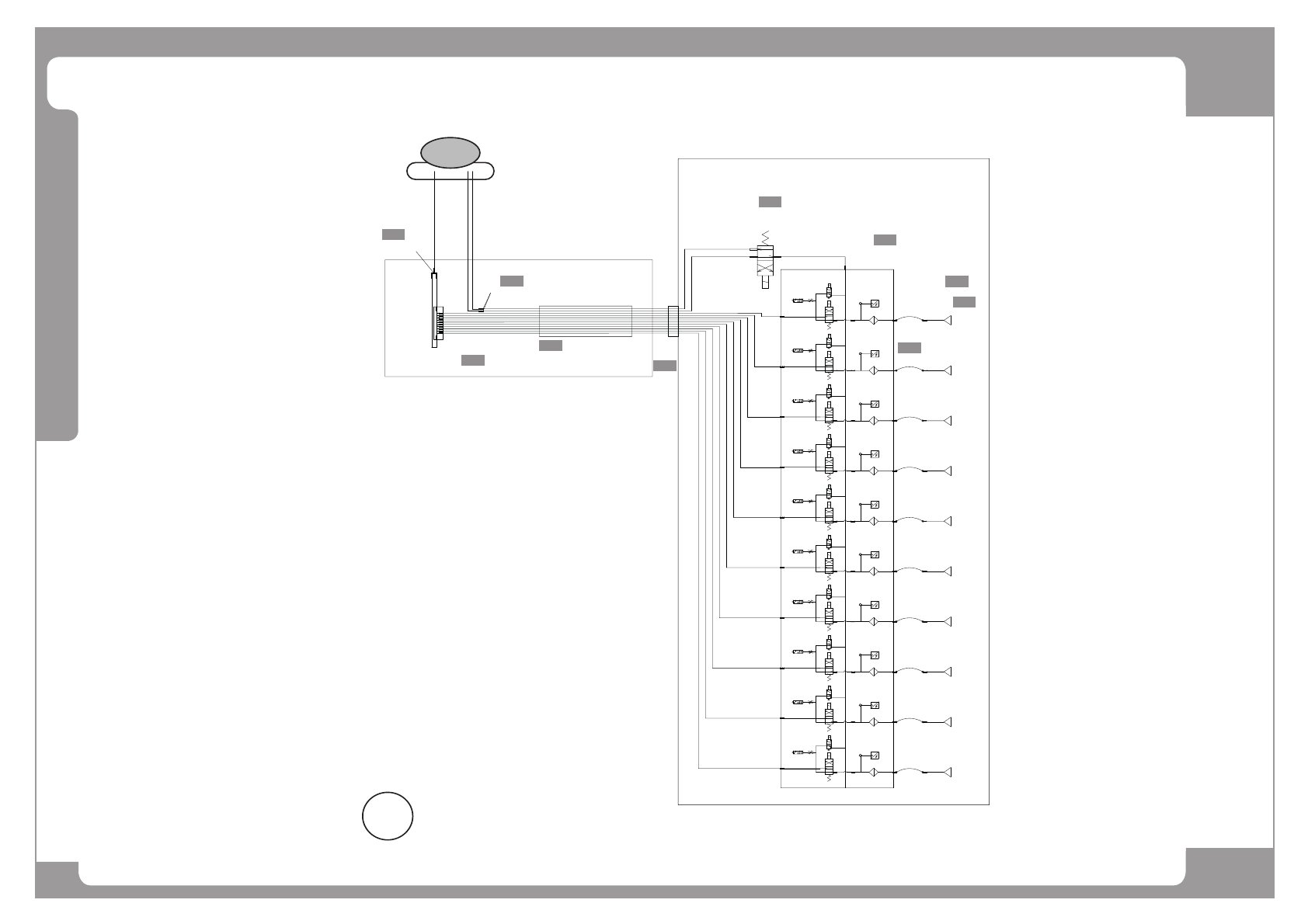

Air Ass’y (6/6)
E
Front HEAD Air Module
1
3
2
(A)
4
(B)
2
3
(R)
1
(P)
1
3
2
(A)
4
(B)
2
3
(R)
1
(P)
1
3
2
(A)
4
(B)
2
3
(R)
1
(P)
1
3
2
(A)
4
(B)
2
3
(R)
1
(P)
1
3
2
(A)
4
(B)
2
3
(R)
1
(P)
1
3
2
(A)
4
(B)
2
3
(R)
1
(P)
1
3
2
(A)
4
(B)
2
3
(R)
1
(P)
1
3
2
(A)
4
(B)
2
3
(R)
1
(P)
1
3
2
(A)
4
(B)
2
3
(R)
1
(P)
1
3
2
(A)
4
(B)
2
3
(R)
1
(P)
SUPPLY BLOW
∅4
(A)
4
(B)
2
3
(R)
1
(P)
BLOW
∅4
0.1MPa
OVER BLOW
∅4
0.5MPa
HP09-000127
KM11-04-08-10
Y CABLE DUCT ASSY
HP13-000037A
UML-412
BU1-YL1-BK10
3.7M
12
1
2-HP06-900089
KQ2H04-06
HEAD 10 HEAD 1HEAD 2HEAD 3HEAD 4HEAD 5HEAD 6HEAD 7HEAD 8HEAD 9
HP06-000457
QSY12-8
U2-4-8*5, BLACK
10-HP04-900036
FILTER VYF44-M-50M
10-HP06-000074
FITTING KQ2S04-M5N
10-HP06-900059
FITTING M-5ALU-4
HP09-000129
AIR MODULE (SOL)
VQD1151W-10-CJQZ0012
HP14-002040
SOLENOID VALVE
VQZ115R-5LO1-C1-PR
6-J1301070
CONNECT FITTING
QC4-4M
A-E
