Page HANWHA TECHWIN 91 SM471 PLUS Cover Ass’y (1/3) NO. Lev . PA R T N O . P ART NAME Q'TY Old No. Supp ly Supply L T Reference 1 FC15-001006A COVER-CONVEYOR_COVER 2 FC15-001786A CONVEYOR_COVER 2 LST T ray Option 2 …
Page
HANWHA TECHWIN
90
SM471
PLUS

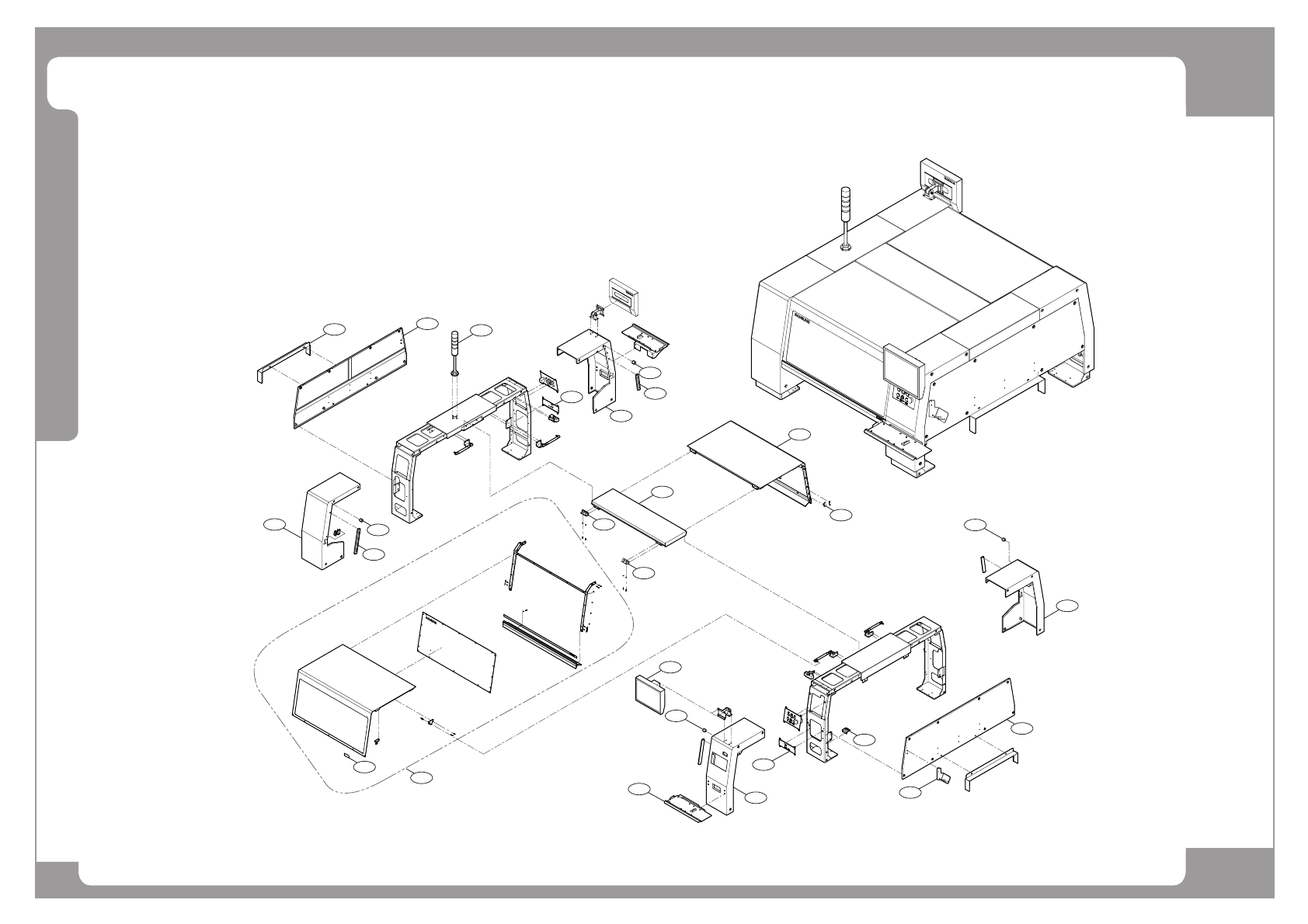

Cover Ass’y (1/3)
Z
Y^
Y]
Y[
X
^
`
\
YZ
[
]
Y\
_
Y\
`
j
l
Y_
Y`
Z
Z
_
Z
Y
m
XW
XX
Page
HANWHA TECHWIN
91
SM471
PLUS
Cover Ass’y (1/3)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC15-001006A COVER-CONVEYOR_COVER 2
FC15-001786A CONVEYOR_COVER 2 LST Tray Option
2 EP13-900134 TOWER_LAMP PTE-APV-302-RYG(510) 1
3 FC29-004382A DOOR CUSHION 4 J73520001B
4 FC15-000946B COVER-UPPER FL 1 FC15-000946A
5 FC12-900009 MAGNETIC C-179 4
6 FC09-000693B BRACKET-BARCODE_HANGER 1
7 FC15-000955A COVER-TOP_CENTER 1
8 J70521087A WINDOW_HINGE J70521087A 2
9 FC15-000953A COVER-UPPER_SIDE_R 2
10 AM03-015041A ASSY,COVER-SM482_DOOR_NEW 1 ESD
11 PT03-002335A STICKER-MODEL NAME SM471+;STD 1
18 FC09-000705A BRACKET-GAS_SPRING_BRACKET2 2 J70521081A
23 FC15-000947B COVER-UPPER RL 1 FC15-000947A
24 J7070352A CONNECTOR BRACKET 1
25 J70521025A LOWER_OP_PANEL 2
26 FC15-000945B UPPER_FR_RR 2 FC15-000945A
27 J90831139A FRONT AREA SENSOR CABLE ASSY 1 OPTION (Left, Right 1 set)
28 J90831759A REAR AREA SENSOR CABLE ASSY 1 OPTION (Left, Right 1 set)
Page
HANWHA TECHWIN
92
SM471
PLUS

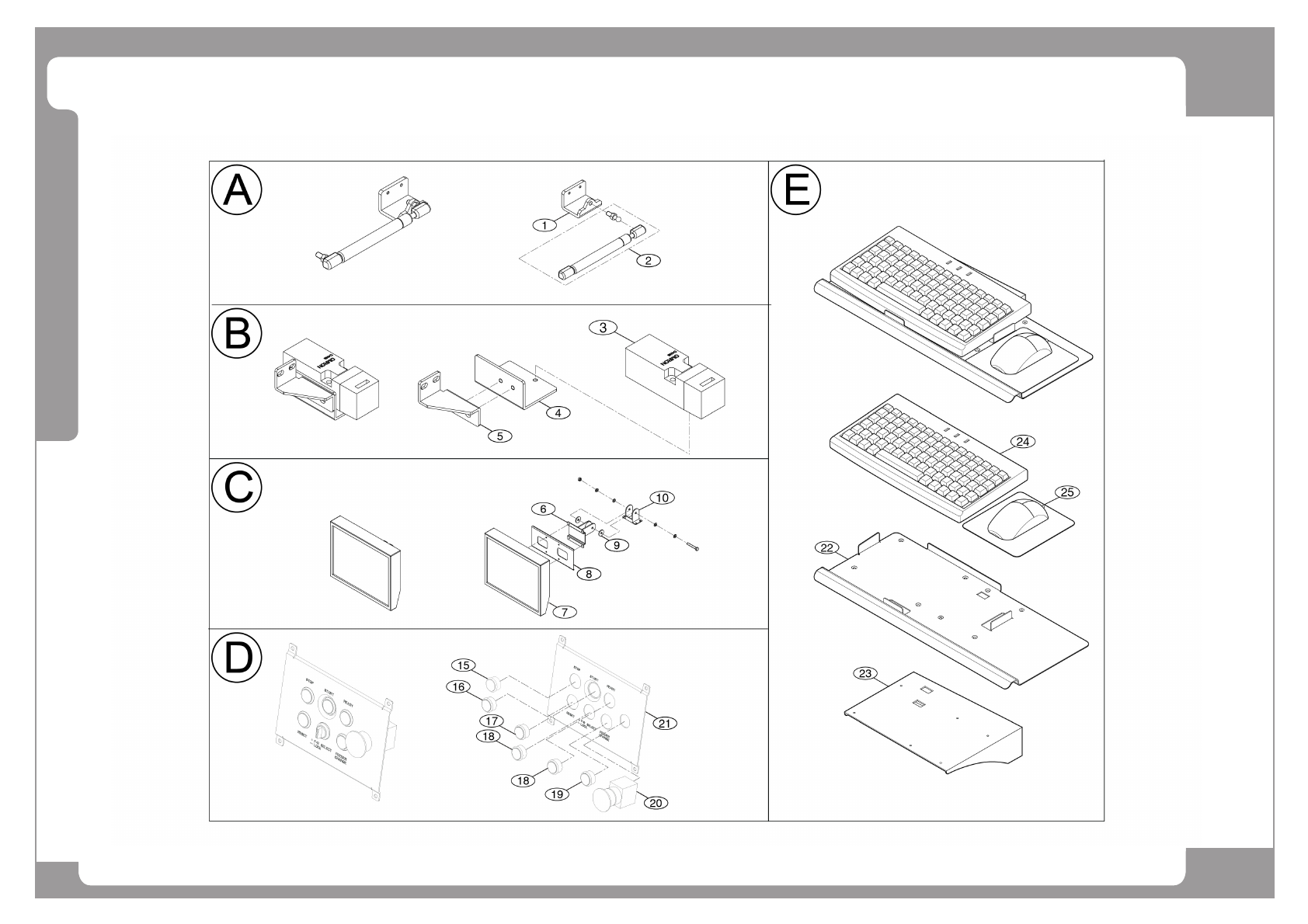

Cover Ass’y (2/3)
