Page HANWHA TECHWIN 95 SM471 PLUS Cover Ass’y (3/3) NO. Lev . PA R T N O . P ART NAME Q'TY Old No. Supply Supply L T Reference 1 EP07-901 528 F AN_FIL TER 120MM(NMB) 2 2 J9083331 6A F AN_CABLE_ASSY SM-F AN00 4 3 FC1…
Page
HANWHA TECHWIN
94
SM471
PLUS

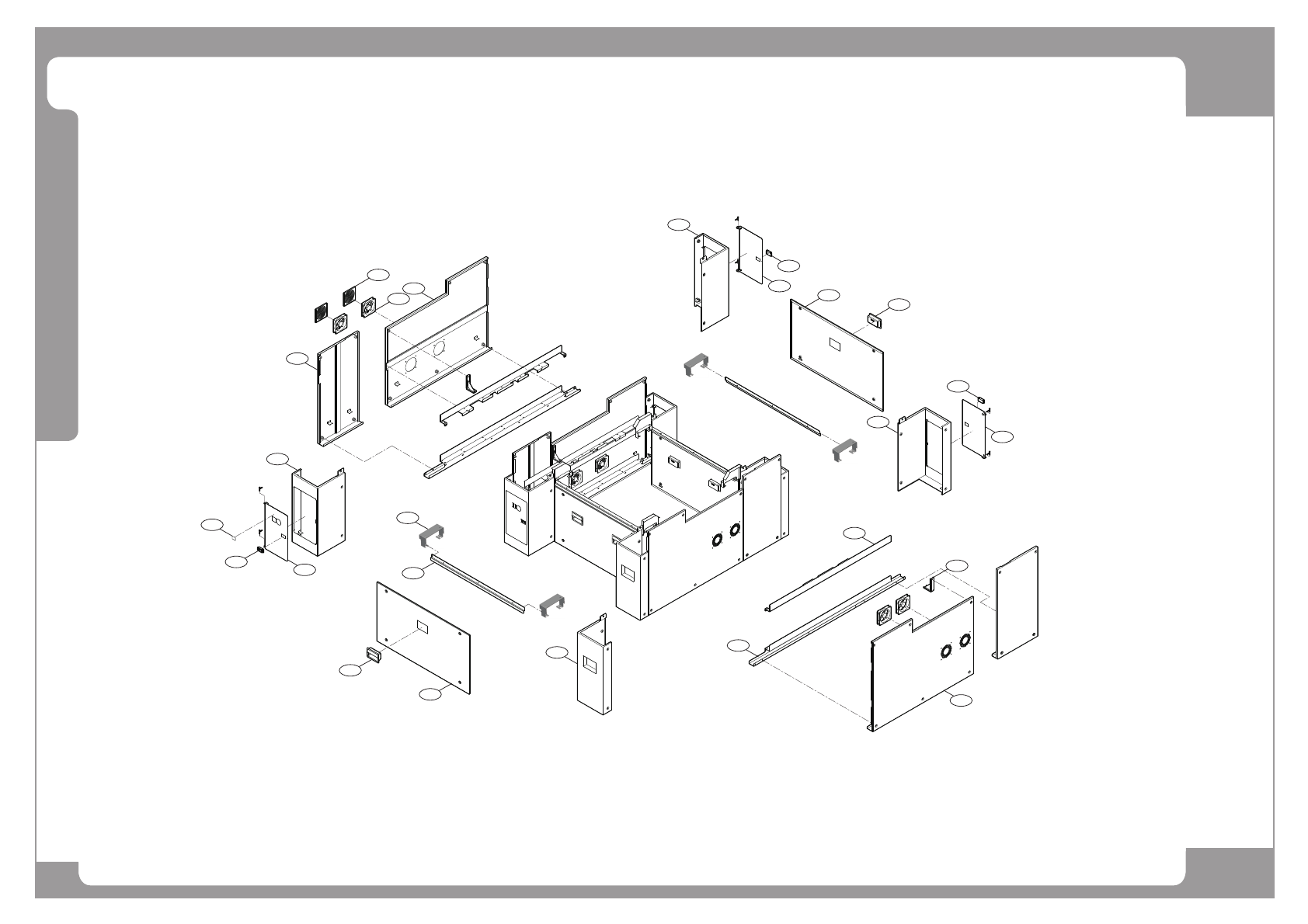

Cover Ass’y (3/3)
6
15
14
22
20
19
21
7
4
23
18
5
13
17
3
16
2
1
9
10
11
8
9
8
24
Page
HANWHA TECHWIN
95
SM471
PLUS
Cover Ass’y (3/3)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 EP07-901528 FAN_FILTER 120MM(NMB) 2
2 J90833316A FAN_CABLE_ASSY SM-FAN00 4
3 FC15-000943B COVER-LOWER_SIDE_2_L 1 FC15-000943A
4 FC15-000952A COVER-LOWER_SIDE_1 2
5 FC15-000949B COVER-LOWER FL 1 FC15-000949A
6 FC29-900217 SLIDE_LATCH A3-40-625-12 1
7 FC15-000960A COVER-OPEN_DOOR_A 1
8 FC29-900144 DRAWER PULL [HD-108] 4
9 J70521033B COVER_LFM 2
10 FC15-001147B COVER-FB SIDE COVER 4
11 J70521088B FB-COVER 2
13 FC15-000948B COVER-LOWER FR 1 FC15-000948A
14 FC29-900217 SLIDE_LATCH A3-40-625-12 1
15 J70511018B CABLE_DUCT_S-V 6
16 J70521049B SIDE_COVER_SUPPORT 1 J70521049A
17 FC15-000944B COVER-LOWER_SIDE_2_R 1 FC15-000944A
18 FC15-000949B COVER-LOWER FL 1 FC15-000949A
19 FC15-000961A COVER-OPEN_DOOR_B 1
20 FC29-900217 SLIDE_LATCH A3-40-625-12 1
21 FC15-000961A COVER-OPEN_DOOR_B 1
22 FC29-900217 SLIDE_LATCH A3-40-625-12 1
23 FC15-000951B COVER-LOWER RR 1 FC15-000951A
24 PT03-000206A STICKER-STICKER-MAIN_PRESSURE 1
Page
HANWHA TECHWIN
96
SM471
PLUS
Control Rack Ass’y
1
8
6
7
5
5
4
3
1
2
