3 5 Pressure Adjust Box Head KGK-081030 No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati. 1 KGK-M6401-00X PLA TE 1 1 2 KGK-M6402-00X PLA TE 2 1 3 KGK-M1 174-00X CONNECTOR PLA TE 3 1 4 KW7-M8585…
2
5

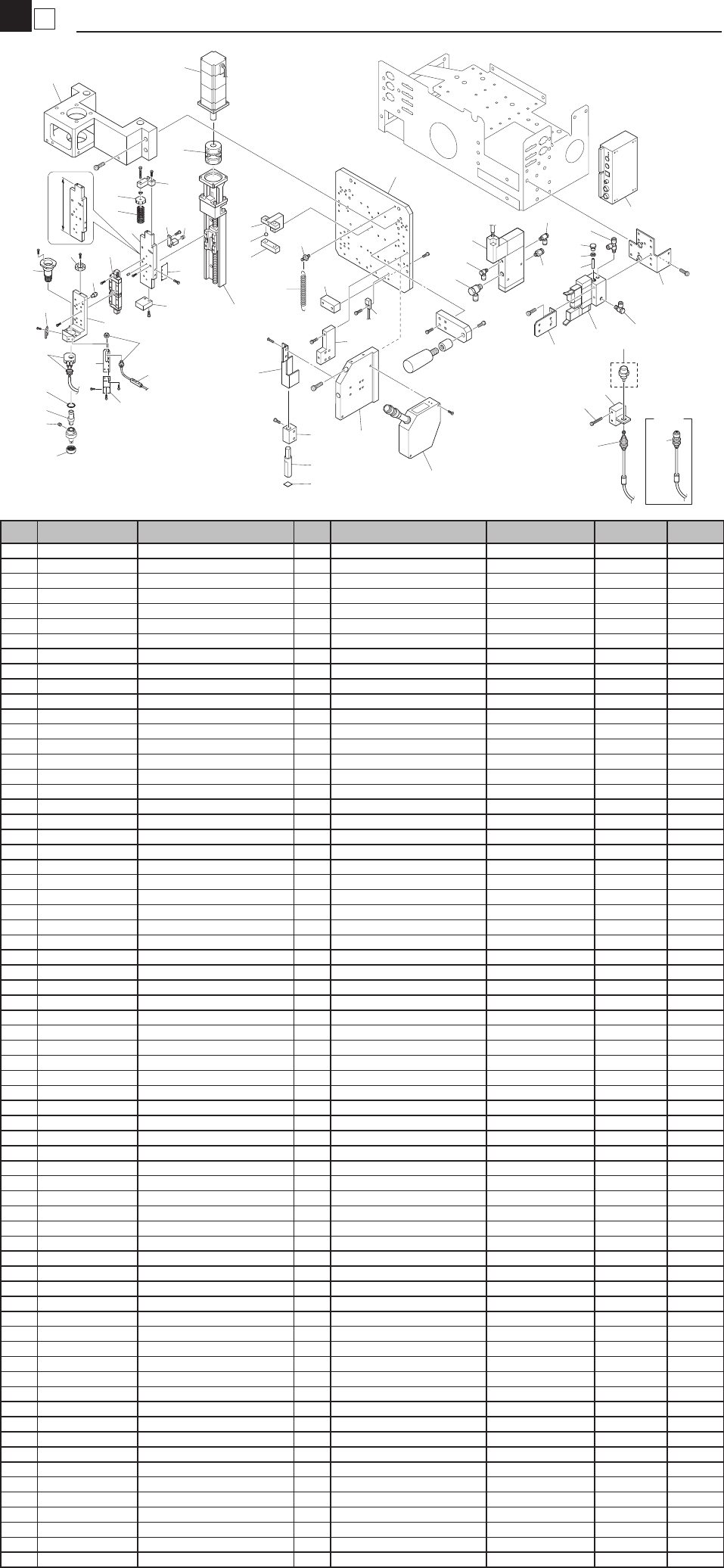

D Head
Head
KGK-081030
19, (47)
7
34
38
60
20
14
37
21
33
11
41
43
42
9
4
5
12
11
10
6
44
46
45
57
35
36
52
53
54
56
55
59
58
40
48
51
49
50
23
30
8
29
13
1
25
24
32
26
28
27
2
15
16
17
3
39
31
18
22
49
OLD
H
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGK-M8101-50X BLOCK, HEAD 1
2 KGK-M8102-00X PLATE, HEAD 1
3 KGK-M2235-00X STAY, EJECTOR 1
4 KGK-M8212-01X PLATE 2,Z AXIS 1 H=130mm
4-1 KGK-M8212-02X PLATE 2,Z AXIS 1 H=125mm (2004/6/11) MA60032 NG
5 KGK-M8213-00X PLATE 3, Z AXIS 1
6 KW7-M8214-70X GUIDE, LINEAR 1
7 KW7-M8215-70X SHAFT, NOZZLE 1
8 KGK-M8136-00X BLOCK, LOWER 1
9 KGK-M8217-00X STOPPER 1
10 KGK-M8218-01X STAY, SPRING 1
11 KW7-M8219-70X PLATE, SPRING 2
12 KW7-M8220-70X SPRING 1
13 KGK-M8156-00X STAY, SPG.POST 1
14 KW7-M8248-70X BRACKET, HARNESS 1
15 KGK-M8192-00X BRKT. 1, MULTI MACS 1
16 KGK-M8194-01X PIN, MULTI MACS 1
17 KGB-M71E4-00X SEAL, MULTI MACS 1
18 KGK-M8193-00X BRKT. 2, MULTI MACS 1
19 KGK-M8196-00X COVER, MULTI MACS 2 1
20 KGK-M8260-00X HEATER UNIT ASSY 1
20-1 KGK-M7120-10X HEATER UNIT ASSY 1 (2004/2/25) M420132 NG
21 KW7-M8249-70X STAY, HEATER 1
22 KGK-M8137-01X DOG, SENSOR Z 1
23 KW7-M8142-01X SPRING, RETURN 1
24 KGK-M8103-00X Z AXIS ASSY 1
25 KV7-M8123-00X COUPLING, MOTOR 1
26 KGK-M8127-00X STAY, STOPPER 1
27 KV7-M8128-00X STOPPER Z 1
27-1 KGK-M8128-10X STOPPER Z 1 (2007/10/24) MD00066 OK
28 KV7-M8129-00X COLLAR,STOPPER 2
28-1 90990-41J055 COLLAR 2 (2008/4/17) ME20197 OK
29 KV7-M8134-00X POST 2, SPG Z 1
30 KV7-M8135-00X POST 1, SPG Z 1
31 KGK-M653A-00X SENSOR 1 ASSY 1
32 90K63-201410 AC SERVO MOTOR 1 Z2
33 KM4-M7173-00X LOCATING PIN 2
33-1 90990-43J011 PIN 2 (2008/6/3) ME30136 OK
34 99009-15400 CIRCLIP : 1
35 KV6-M7171-A0X VALVE ASSY 1
36 $SL4-M5 JOINT 1
37 KU4-M7114-00X NUT, NOZZLE 1
38 KV6-M7114-10X JOINT NOZZLE 1
39 KGK-M8182-00X EJECTOR 1
40 KGK-M8166-50X STAY, HARNESS/FD 1
41 KW7-M8291-70X STAY, FIBER 1 Glue Empt.(OP)
42 KGK-M7186-A0X SENSOR AMP ASSY 1 Glue Empt.(OP)
43 KV6-M7187-00X FIBER 1 Glue Empt.(OP)
44 KGK-M82A1-00X SENSOR HEAD, LASER 1 Laser Unit (OP)
45 KGK-M82A2-00X CONTROLLER,LASER 1 Laser Unit (OP)
45-1 KGK-M82A2-01X CONTROLLER,LASER 1 Laser Unit (OP) (2003/5/8) M350009 NG
46 KGK-M8258-01X BRACKET,LASER 1 Laser Unit (OP)
46-1 KGK-M8258-10X BRACKET,LASER 1 Laser Unit (OP) (2004/3/31) M430127 OK
47 KGK-M8197-00X COVER, MULTIMACS 2 1 Laser Unit (OP)
48 KGK-M8551-00X BRACKET, SENSOR 1 Touch S.(OP)
49 KGK-M8552-A0X TOUCH SENSOR 1 Touch S.(OP)
49-1 KGK-M8552-A1X TOUCH SENSOR 1 Touch S.(OP) (2004/8/3) MA80014 NG
50 91317-04030 BOLT HEX. SOCKET HEAD 2 Touch S.(OP)
51 KGK-M8555-00X TOOL, TOUCH ASSY 1 Touch S.(OP)
52 $SL8-02 JOINT 1
53 $SL10-02 JOINT 1
54 $TL4-02 JOINT 1
55 $SL8-01 JOINT 1
56 $TB4-M5 JOINT 1
57 KM5-M7174-F0X FILTER CAP 1
58 K46-M8527-C0X FILTER 1
59 90990-17J008 O-RING 1
60 92A90-03103 SCREW, SET 2
3
5
Pressure Adjust Box
Head
KGK-081030
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGK-M6401-00X PLATE 1 1
2 KGK-M6402-00X PLATE 2 1
3 KGK-M1174-00X CONNECTOR PLATE 3 1
4 KW7-M8585-00X PRESSURE SENSOR 1
5 KW7-M8586-00X PRESSURE SENSOR 1
6 KW7-M8589-00X PANEL. SENSOR 2
7 KU4-M8591-00X REGULATOR 1
8 KM4-M8588-00X AQUMRATE REGULATOR 1
9 KGE-M53E3-00X TRANS 1 ASSY 1
9-1 Delete (2004/3/5) M430030
10 KW7-M8582-00X COVER, TRANS 1
10-1 Delete (2004/3/5) M430030
11 KGK-M6403-00X BASE, TRANS 1
11-1 Delete (2004/3/5) M430030
12 K40-M8527-00X MICRO EJECTOR ME12 1
13 $TL4-01 JOINT 4
14 $TL10-01 JOINT 1
15 $TS4-01 JOINT 2
16 $SL10-02 JOINT 2
17 K11-M1578-00X PLUG SCREW (GM 1/8) 1
18 $SL4-01 JOINT 1
7
13
12
15
18
13
15
16
16
5
1
6
3
8
2
10
11
9
4
17
14
OLD
4
5

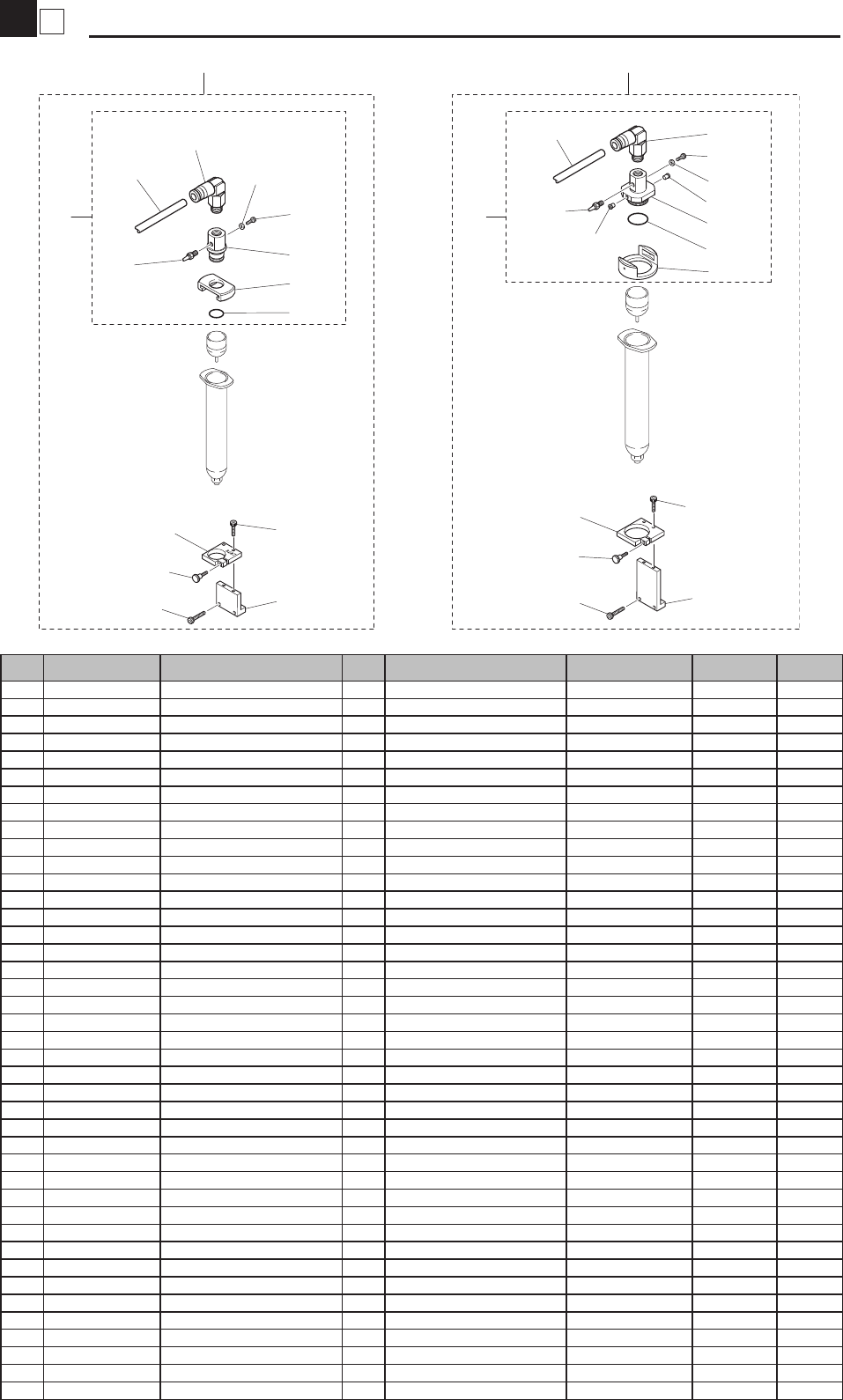

Attachment Assy Selection
Head
KGK-081030
11
12
13
15
14
3
23
24
26
25
19
21
21
22
20
29
18
2
9
10
8
4
5
6
7
17
16
30
31
28
27
1
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGK-M82M1-00X ATTACH. ASSY., 10cc 1
IEI 10cc
1 KGK-M82M1-20X ATTACH. ASSY., E10cc 1
EFD 10cc
2 KW7-M8280-70X ADAPTA, 10cc 1
IEI
2 KW7-M8280-80X ADAPTA,EFD 10cc 1
EFD
3 KW7-M7880-00X MUFFLER 1
4 KM4-M7180-00X CAP, SYRINGE 10cc 1
5 KM4-M7181-00X SYRINGE COVER 1
IEI
6 KM4-M7181-10X SYRINGE COVER EFD 10 1
EFD
6 90200-20J110 O-RING 1
7 KM4-M7182-00X TUBE: TSU0805N-100<#> 300
8 $TLR8-01 JOINT 1
9 90990-22J005 PACKING 1
10 91317-05006 BOLT HEX. SOCKET HEAD 1
11 KGK-M8286-00X BRACKET, 10cc SYRINGE 1
IEI
11 KGK-M8286-20X BRACKET2, EFD 10cc SYRINGE 1
EFD
12 KGK-M8287-00X STAY 1, 10cc SYRINGE 1
IEI
12 KGK-M8287-20X STAY 2, EFD 10cc SYRINGE 1
EFD
13 KW7-M8245-70X SCREW, CLAMP 1
14 91317-03010 BOLT HEX. SOCKET HEAD 2
15 91317-03016 BOLT HEX. SOCKET HEAD 2
16 KGK-M82M1-10X ATTACH. ASSY., 30cc 1
IEI 30cc
16 KGK-M82M1-30X ATTACH. ASSY., 30cc 1
EFD 30cc
17 KW7-M8270-70X ADAPTA, 30cc 1
IEI
17 KW7-M8270-80X ADAPTA, EFD 30cc 1
EFD
18 KW7-M7880-00X MUFFLER 1
19 KU2-M7176-00X CAP, SYRINGE 30cc 1
20 KU2-M7177-00X SYRINGE, COVER 30cc 1
IEI
20 KU2-M7177-00X SYRINGE, COVER 30cc 1
EFD
21 KU2-M7178-00X PLUNGER 2
22 90990-17J019 O-RING 1
23 KM4-M7182-00X TUBE: TSU0805N-100<#> 300
24 $TLR8-01 JOINT 1
25 90990-22J005 PACKING 1
26 91317-05006 BOLT HEX. SOCKET HEAD 1
27 KGK-M8246-00X BRACKET, 30cc SYRINGE 1
IEI
27 KGK-M8246-20X BRACKET 2,EFD 30cc SYRINGE 1
EFD
28 KGK-M8247-00X STAY 1, 30cc SYRINGE 1
IEI
28 KGK-M8247-20X STAY 2, EFD 30cc SYRINGE 1
EFD
29 KW7-M8245-70X SCREW, CLAMP 1
30 91317-03010 BOLT HEX. SOCKET HEAD 2
31 91317-03016 BOLT HEX. SOCKET HEAD 2
