KGK_YHP2_PL - 第18页
8 5 4M Head-2 Head KGV -1002 2 1 13 12 42 11 14 11 12 18 26 27 18 26 27 20 20 21 16 16 17 17 29 29 29 29 30 35 8 35 35 35 30 30 30 47 46 19 19 15 21 15 10 9 22 25 32 44 44 45 15 21 15 21 23 28 64 64 73 65 65 74 24 41 43 …
7
5
4M Head-1
Head
KGV-1110
OLD
3
1
37
37
1
21
22
25
2
5
30
26
20
29
27
7
6
49
62
52
28
43
44
41
34
54
35
33
60
57
56
56
54
55
59
55
55
55
58
56
32
31
36
34
39
40
42
45
38
8
9
10
19
4
48
47
63
46
13
17
13
12
12
18
64
18
17
14
14
15
16
15
16
24
23
51
11
11
13
12
18
17
14
15
16
53
56
61
57
42
50
14
65
65
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGV-M7111-00X PULLEY, HEAD 4
2 KGV-M7114-00X SPACER 2,PULLEY 2
2-1 90990-41J084 COLLAR 2 (2008/4/11) ME30019 OK
3 KGV-M7172-01X PLATE,BEARING 1
4 90185-00J00 NUT U : FU00SS(M10) 4
5 91317-03018 BOLT HEX. SOCKET HEAD 16
6 90933-02J625 BEARING 4
7 95604-05100 NUT U 1
7-1 95602-05100 NUT U 1 (2006/1/10) MBY0154 OK
8 KGV-M7106-00X BALL SPLINE 4
9 KGV-M7161-00X SHAFT, NOZZLE 4
10 KGV-M7162-00X PIN,SHAFT NOZZLE 4
10-1 90990-19J012 NEEDLE PIN 4 (2006/10/17) MC90117 OK
11 KV7-M81D0-00X NOZZLE ARM ASSY. 8
12 KV7-M81D1-00X ARM, NOZZLE 8
13 KV7-M81D2-00X BRACKET, ARM 8
14 KV7-M81D3-00X PIN 8
14-1 KV7-M81D3-01X PIN 8 (2011/10/4) MH80088 OK
15 KV7-M81D4-00X ROLLER 8
16 KV7-M81D5-000 CIRCLIP(E0.8) 16
16-1 90440-02J008 CIRCLIP 16 (2001/12/28) M1Y0129 OK
16-2 90440-10J008 CIRCLIP 16 (2009/10/9) MF00020 OK
16-3 90440-10J008 CIRCLIP 8 (2011/10/4) MH80088 OK
17 KV7-M8171-00X PLATE, SPLING 16
18 90115-02J006 BOLT HEX. SOCKET HEAD 8
19 KGV-M7105-00X COLLAR, BEARING 4
20 91317-03008 BOLT HEX. SOCKET HEAD 24
21 KGV-M7113-00X SPACER 1,PULLEY 2
21-1 90990-41J083 COLLAR 2 (2008/4/11) ME30019 OK
22 KGV-M7115-00X SPACER 3,PULLEY 2
22-1 90990-41J085 COLLAR 2 (2008/4/11) ME30019 OK
23 90K63-001J07 AC SERVO MOTOR 1
R
24 KGV-M7101-00X HOUSING, HEAD 1
25 KGV-M7103-00X PLATE, BEARING 1
26 KGV-M7104-00X PLATE 1 4
27 KGV-M7129-00X GUIDE, Z SPRING 4
28 KGV-M7130-00X ARM,Z AXIS 4
28-1 KGV-M7130-01X ARM,Z AXIS 4 (2004/3/19) M430076 OK
29 KGV-M7138-00X SPRING, RETURN 4
30 KGV-M7139-00X GUIDE, SHAFT 4
31 KGV-M7141-00X HOLDER 1, R AXIS 1
32 KGV-M7143-00X FLANGE, MOTOR R 1
33 KGV-M7144-00X PULLEY, MOTOR R 1
34 KGV-M7145-00X BLOCK, ADJUST R 2
35 KGV-M7146-00X SHAFT 1, TENSION 1
36 KGV-M7147-00X SHAFT 2, TENSION 1
37 KGV-M7148-00X BELT, HEAD R 2
38 KGV-M7151-00X BRACKET, STOPPER R 1
39 KGV-M7152-00X SHAFT, STOPPER R 1
40 KGV-M7153-00X STOPPER R 1
41 KGV-M7154-00X PIN 1
41-1 90990-19J016 NEEDLE,PIN 1 (2007/11/30) MD00140 OK
42 KGV-M7155-00X WASHER 2
42-2 90990-28J049 WASHER,PLAIN 2 (2007/12/20) MDX0104 OK
43 KGV-M7156-00X BLOCK1, STOPPER R 1
44 KGV-M7157-00X BLOCK2, STOPPER R 1
45 90440-01J030 CIRCLIP 1
46 KGV-M7168-00X BRACKET 1, SPRING 4
47 KGV-M7164-00X BRACKET 2, SPRING 4
48 KGV-M7165-00X SPRING, BUFFING 4
49 KGV-M7171-01X BLOCK,JOINT AIR 4
50 92907-03200 WASHER, PLAIN 4
51 92907-03600 WASHER, PLAIN 16
52 KGV-M7175-00X JOINT,AIR(BF4U) 4
52-1 $BF4U JOINT 4 (2007/9/14) MD80065 OK
53 90990-22J009 PACKING 4
54 99009-08800 CIRCLIP : 2
55 91317-03008 BOLT HEX. SOCKET HEAD 32
56 91317-03010 BOLT HEX. SOCKET HEAD 52
57 91317-03014 BOLT HEX. SOCKET HEAD 4
58 91317-04014 BOLT HEX. SOCKET HEAD 2
59 92A08-03303 SET SCREW M3X3 1
60 92A08-04304 SET SCREW M4X4 2
61 99480-04008 PIN, PARALLEL 24
62 $PF-M3 PLUG 4
63
KGV-M711S-A0X STD SHAFT 1, SPARE 1
64
KGV-M711H-A0X ROLLER LOCK, SPARE 1
65
90990-25J016 BEARING 4
8
5
4M Head-2
Head
KGV-1002
2
1
13
12
42
11
14
11
12
18
26
27
18
26
27
20
20
21
16
16
17
17
29
29
29
29
30
35
8
35
35
35
30
30
30
47
46
19
19
15
21
15
10
9
22
25
32
44
44
45
15
21
15
21
23
28
64
64
73
65
65
74
24
41
43
5
19
19
7
3
4
31
31
59
59
59
59
59
60
37
6
36
60
33
34
38
40
45
39
48
52
52
50
50
50
57
69
70
63
67
72
72
72
72
68
49
49
52
52
50
58
51
51
51
51
50
50
50
50
56
56
55
55
54
52
52
53
53
71
61
62
62
66
BLACK
GRAY
bit type
non bit type
75
76
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 90K55-3U07GA AC SERVO MOTOR 1 Z1
2 90K55-3U073B AC SERVO MOTOR 1 Z2
3 90K55-3U07GF AC SERVO MOTOR 1 Z3
4 90K55-3U073S AC SERVO MOTOR 1 Z4
5 KGV-M7102-00X PLATE, HEAD 1
6 KGV-M7109-00X BRACKET, HANDLE 1
7 KGV-M7121-00X PLATE 1, Z AXIS 1
8 KGV-M7122-00X PLATE 2, Z AXIS 1
9 KGV-M7123-00X PLATE 3, Z AXIS 1
10 KGV-M7124-00X HOLDER, BEARING 1
11 KGV-M7125-00X DAMPER Z 2
12 KGV-M7126-00X COLLAR, DAMPER Z 10
13 KGV-M7127-00X BRACKET 1, DAMPER Z 1
14 KGV-M7128-00X BRACKET 2, DAMPER Z 1
15 KGV-M7131-00X PLATE, BEARING 4
16 KGV-M7132-00X GEAR 1 2
17 KGV-M7133-00X GEAR 2 2
18 KGV-M7134-00X BRACKET, RACK Z 4
19 KGV-M7135-00X HOLDER, MOTOR 4
20 KGV-M7136-00X GUIDE, Z AXIS 4
21 KGV-M7137-00X COUPLING, Z AXIS 4
22 KGV-M7181-00X BRACKET, EJECTOR 1
23 KGV-M7182-00X BRACKET 1, HARNES 1
24 KGV-M7183-00X BRACKET 2, HARNES 1
25 $UK4M JOINT 4
26 KGV-M71L1-00X SHIM,Z RACK (16)
26-1 KGV-M71L1-00X SHIM,Z RACK (8) (2004/3/25) M430112 OK
27 KGV-M71L2-00X SHIM, Z RACK (4)
28 KGV-M7163-00X EJECTOR, RESIN 1
28-1 KGV-M71G1-00X EJECTOR, RESIN 1 Bit type (2008/5/23) ME30096 NG
29 90933-03J684 BEARING 4
30 90933-02J604 BEARING 4
31 KGA-M7195-00X RACK, Z AXIS 4
32 KM1-M4592-12X VAC SENSOR BOARD ASSY 4
32-1 KM1-M4592-13X VAC SENSOR BOARD ASSY 4 (2005/4/19) MB40065 OK
33 KV7-M8159-00X SHAFT, HANDLE 1
34 KV7-M2256-00X GRIP 1
35 KGV-M71R3-00X COLLAR,BEARING 4
35-1 KGV-M71R3-01X COLLAR,BEARING 4 (2004/5/20) MA50043 OK
35-2 90990-41J026 COLLAR 4 (2008/4/14) ME20133 OK
36 99480-06014 PIN PARALLEL 2
37 KGV-M7184-00X BRACKET, HEAD COVER 2
38 KGV-M7185-00X COVER 1, HEAD 1
39 KGV-M7186-00X COVER 2, HEAD 1
40 KGV-M7187-00X SPACER BOLT 2
40-1 90990-05J011 SPACER BOLT 2 (2007/11/12) MD00058 OK
40 KGV-M7187-00X SPACER BOLT 2
41 KGV-M7189-00X COVER 3, HEAD 1
42 KGV-M718A-00X COVER 4, HEAD 1
43 91317-04014 BOLT HEX. SOCKET HEAD 2
44 91317-03006 BOLT HEX. SOCKET HEAD 4
45 91317-04006 BOLT HEX. SOCKET HEAD 12
46 KGV-M71E1-00X MULTI MACS R ASSY. 1
47 KGV-M71E2-00X MULTI MACS L ASSY. 1
48 91317-03006 BOLT HEX. SOCKET HEAD 20
49 91317-03008 BOLT HEX. SOCKET HEAD 32
50 91317-03010 BOLT HEX. SOCKET HEAD 52
51 91317-03012 BOLT HEX. SOCKET HEAD 16
52 91317-03006 BOLT HEX.SOCKET HEAD 4
53 91317-04010 BOLT HEX. SOCKET HEAD 8
54 91317-04012 BOLT HEX. SOCKET HEAD 7
55 91317-04035 BOLT HEX. SOCKET HEAD 4
56 91317-04055 BOLT HEX. SOCKET HEAD 6
57 91317-06020 BOLT HEX. SOCKET HEAD 4
58 91317-06060 BOLT HEX. SOCKET HEAD 4
59 99480-04008 PIN, PARALLEL 24
60 99480-06012 PIN, PARALLEL 2
61 KU1-M7180-00X NEEDLE PIN 8
62 90563-14J400 SPACER BOLT 2
63 91317-04005 BOLT HEX. SOCKET HEAD 4
64 KM1-M7163-30X VALVE 1 SPARE
65 KM1-M7163-20X VALVE 1 SPARE
66 KM5-M7174-11X EJECTOR 1 SPARE
67 $UL4M JOINT 4
68 91317-08020 BOLT HEX. SOCKET HEAD 1
69 91317-05016 BOLT HEX. SOCKET HEAD 3
70 91317-04020 BOLT HEX. SOCKET HEAD 4
71 91317-04016 BOLT HEX.SOCKET HEAD 3
72 90440-015030 CIRCRIP 4
73
KHW-M71G4-00X BIT 4
KGB-M8C06-00X BIT SET 4 1 4 SET of parts numbers (2014/11/03) H020054
74
KGB-M7163-A0X EJECTOR 4 SPARE non bit type
KGB-M8C04-10X EJEC.SET NONBIT 4 1 4 SET of parts numbers (2014/8/22) H019710 OK
KGB-M71G2-00X EJECTOR 4 SPARE bit type
KGB-M8C04-30X EJEC.SET BIT 4 1 4 SET of parts numbers (2014/8/22) H019710 OK
75 KGB-M7163-B0X EJECTOR 4 SPARE
76 KGB-M71G2-10X EJECTOR SPARE 4 bit type (2009/12/22) MFY0099
9
5

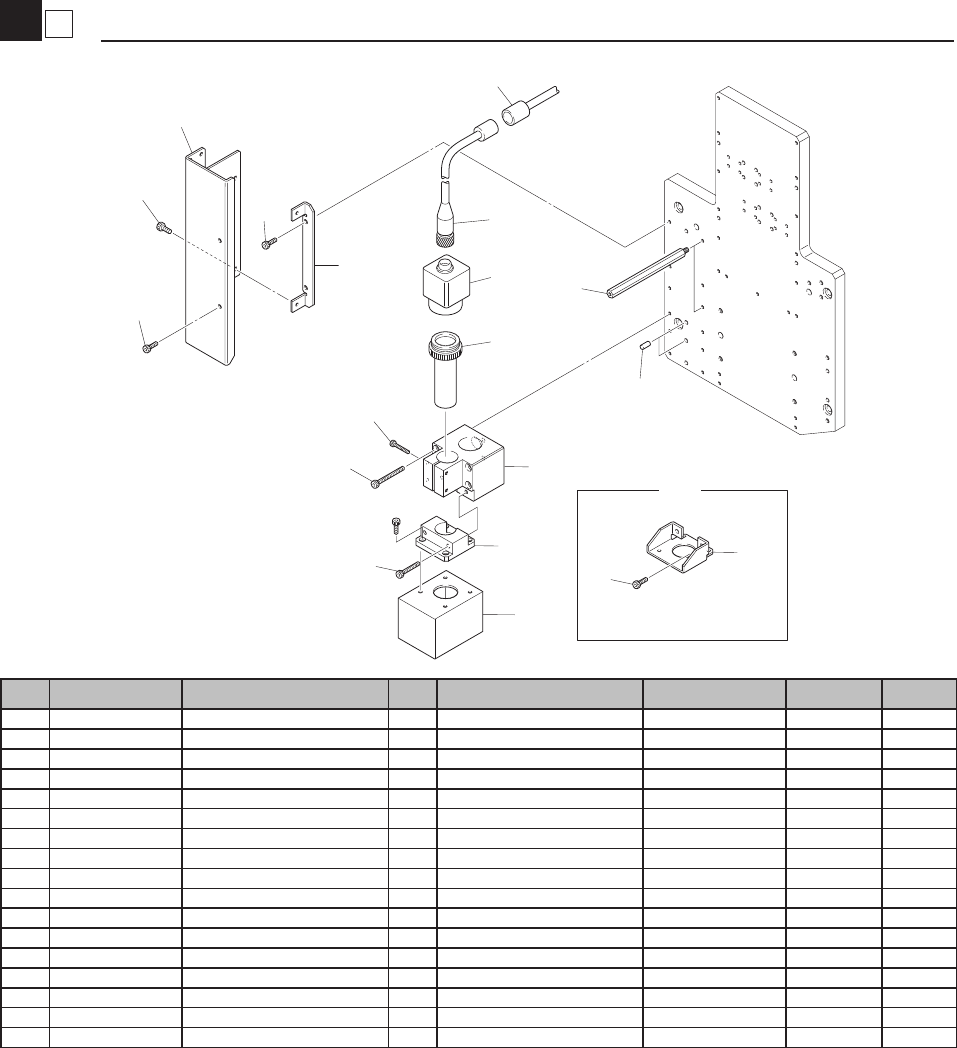

4M Vision Attachment
Head
KGV-081030
1
2
11
10
5
4
3
6
7
14
15
13
13
8
9
12
12
6
13
OLD
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGA-M7210-01X CCD CAMERA 1
2 KV7-M7211-00X LENS 095 1
3 KV7-M7600-00X FIDUCIAL LIGHT ASSY. 1
4 KGK-M66F2-00X C. CABLE ASSY:L6M 1
5 KGK-M66F4-00X C. CABLE ASSY :1. 7M 1
6 KGV-M71H8-00X BRACKET,FID LIGHT 1
6-1 KGV-M71H8-01X BRACKET,FID.LIGHT 1 (2006/7/28) MC70032 OK
7 KGV-M7191-00X STAY, CCD CAMERA 1
8 KGV-M7192-00X COVER1, CCD CAMERA 1
9 KGV-M7193-00X COVER2, CCD CAMERA 1
10 90563-14J750 SPACER BOLT 2
11 99480-04008 PIN, PARALLEL 2
12 91317-04006 BOLT HEX. SOCKET HEAD 4
13 91317-04008 BOLT HEX.SOCKET HEAD 2
13-1 91317-04025 BOLT HEX.SOCKET HEAD 2 (2006/7/28) MC70032 OK
14 91317-04045 BOLT HEX. SOCKET HEAD 4
15 91317-03020 BOLT HEX. SOCKET HEAD 2
