KGK_YHP2_PL - 第29页
5 8 Push Up Conveyor KGK-801030 38 35 26 24 32 27 7 15 16 14 9 40 39 42 9 41 44 9 12 13 5 4 1 1 1 6 45 33 34 25 31 19 18 22 37 29 30 28 36 9 17 9 28 20 23 21 43 12 10 10 3 2 7 7 3 7 7 8 8 46 No. Part No. Part Name Q&apos…
4
8
Exit Stopper
Conveyor
KGK-101007
2
7, (8)
6, (8)
10
9
9
1
4
3
10
11
5
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGK-M9161-00X PLATE, STOPPER 1
2 KV7-M9282-00X STOPPER, SUB 1
3 KV7-M9283-00X CYL., YMDA16X35 1
4 $SL4-M5 JOINT 2
5 KGK-M9273-00X BRKT. SENSOR 2 1
6 KGK-M927A-00X SENSOR UP 1
6-1 KGK-M927A-01X SENSOR UP 1 (2017/1/12) MNX0076 OK
7 KGK-M927B-00X SENSOR LOW 1
7-1 KGK-M927B-01X SENSOR LOW 1 (2017/1/12) MNX0076 OK
8 KU0-M655C-00X SENSOR 1-3 1
8-1 KU0-M655C-01X SENSOR 1-3 1 (2006/6/19) MC30083 NG
9 91317-04008 BOLT HEX, SOCKET HEAD 4
10 91317-03012 BOLT HEX, SOCKET HEAD 4
11 91317-03010 BOLT HEX, SOCKET HEAD 2
5
8

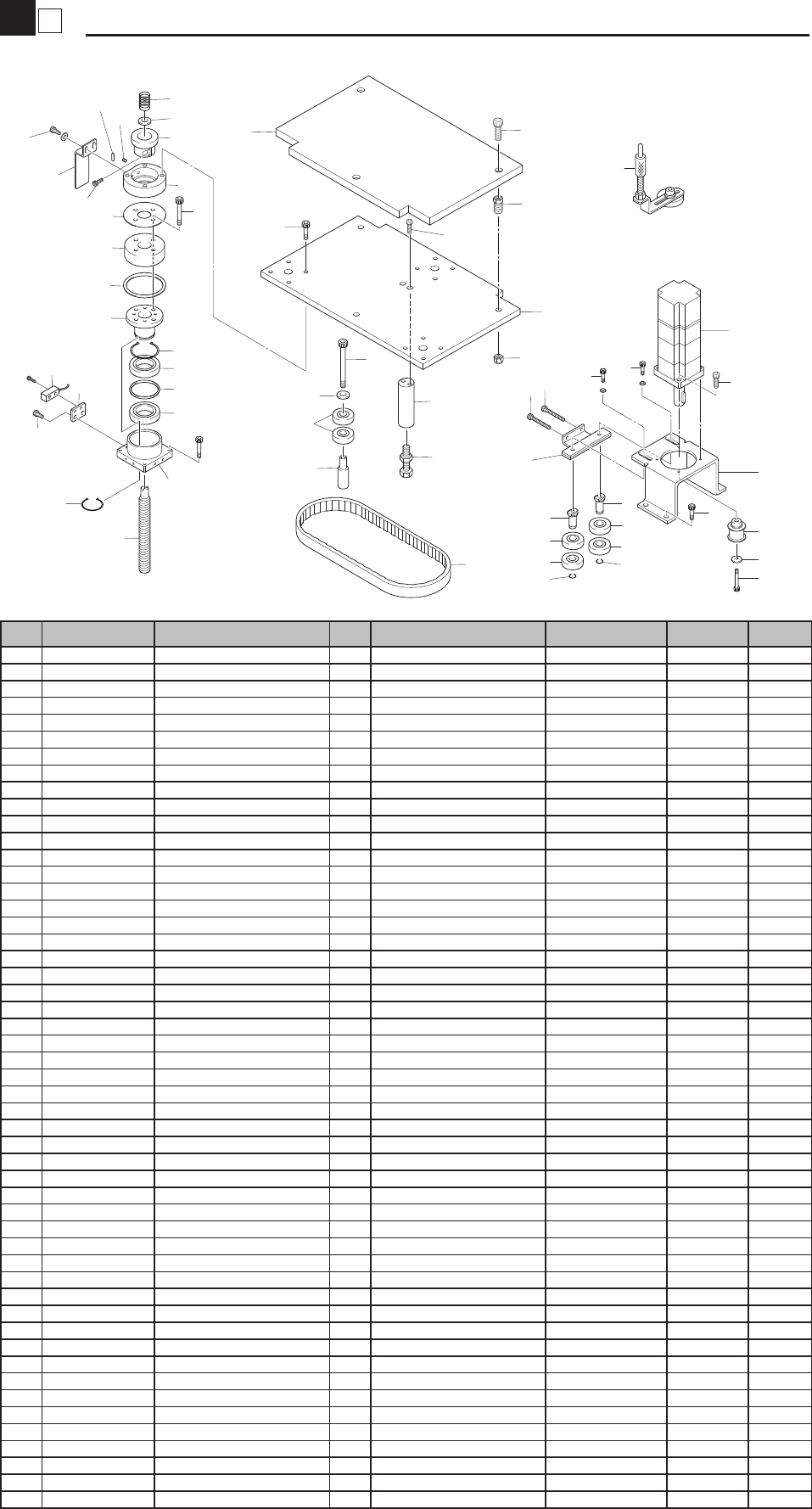

Push Up
Conveyor
KGK-801030
38
35
26
24
32
27
7
15
16
14
9
40
39
42
9
41
44
9
12
13
5
4
1
11
6
45
33
34
25
31
19
18
22
37
29
30
28
36
9
17
9
28
20
23
21
43
12
10
10
3
2
7
7
3
7
7
8
8
46
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV7-M9201-00X BRACKET, MOTOR 1
2 KV7-M9202-00X STAY, ADJUST 1
3 KV7-M9203-00X SHAFT 1 2
4 KV7-M9205-01X PULLEY 1: P22-3GT 1
5 KV7-M9206-00X WASHER 1
5-1 90990-28J076 WASHER 1 (2007/12/18) MDX0125 OK
6 90K63-331512 AC SERVO MOTOR 1
7 90933-01J200 BEARING 8
8 99009-10400 CIRCLIP : 2
9
91317-04010 BOLT HEX. SOCKET HEAD
14
10 91317-04022 BOLT HEX. SOCKET HEAD 2
11 91317-05014 BOLT HEX. SOCKET HEAD 4
12 91317-05016 BOLT HEX. SOCKET HEAD 2
13 91317-04012 BOLT HEX. SOCKET HEAD 1
14 KV7-M9204-00X SHAFT 2 2
15 91317-06060 BOLT HEX. SOCKET HEAD 2
16 92907-06200 WASHER PLAIN 2
17 KV7-M9207-00X FRANGE 1 3
18 KV7-M9208-00X FLANGE 2 3
19 KV7-M9209-01X PULLEY 2: P60-3GT 3
20 KV7-M9211-00X HOUSING 3
21 KV7-M9212-00X COLLAR 2 1
21-1 90990-41J060 COLLAR 1 (2008/4/17) ME20197 OK
22 KV7-M9213-00X NUT 3
23 KV7-M9214-00X SCREW 3
24 KV7-M9215-00X JOINT 3
25 KV7-M9217-00X FLANGE 3
26 KV7-M9218-00X SPRING 3
27 KV7-M921C-00X ROLLER 3
28 90933-01J905 BEARING 6
29 99009-42500 CIRCLIP 3
30 99009-25400 CIRCLIP 3
31 91317-05020 BOLT HEX. SOCKET HEAD 24
32 92A08-03306 SCREW, SET 3
33 KV7-M9219-00X STOPPER 1
34
KV7-M921B-00X BOLT,STOPPER 1
34-1
90990-33J011 BOLT,STOPPER 1 (2008/6/18) ME20019 OK
35 KV7-M920D-00X DOG 1
36 KV7-M920E-00X BRACKET 1
37 KGA-M921G-00X SENSOR, ORG 1
38 91317-04008 BOLT HEX. SOCKET HEAD 2
39 KGK-M920A-00X PLATE 1
40 91317-05012 BOLT HEX. SOCKET HEAD 16
41 KGK-M920C-00X STAY 1
42 KGA-M921T-00X BOLT 3
43 KGK-M921A-00X BELT: 1050-3GT-15 1
44 95604-10100 NUT U 3
44-1 95304-10700 NUT HEXAGON 3 (2003/5/10) M350061 OK
44-2 95302-10700 NUT HEXAGON 3 (2006/2/17) MBY0200 OK
45 KV7-M921D-10X PUSH UP PIN UNIT 9
46 92907-10600 WASHER PLAIN 1
6
8
Main Conveyor-1
Conveyor
KGK-081030
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV7-M9101-02X STAY, FOOT 4
2 KGK-M9102-00X PLATE 1 2
3 KGK-M9103-00X PLATE 2 2
4 KGK-M9104-00X PLATE 3 2
5 KGK-M9115-00X PLATE LINEAR 2
6 KGK-M9113-S00 LM RAIL & BLOCK 2
7 KGK-M9114-00X BRKT. GUIDE 2
8 KGK-M9106-00X BRKT. CONV.MOTOR 1
9 KGK-M9105-00X BRKT. SPLINE 1
10 KGK-M9117-00X SCREW, W 2
11 KGK-M9116-00X FRANGE NUT 2
12 KGK-M9140-00X COLLAR CONVEYOR 1
13 KGK-M9142-00X PULLEY 1, MOTOR 1
13-1 KGK-M9142-01X PULLEY 1, MOTOR 1 (2013/12/18) MKY0039 OK
14
KGK-M9141-00X O-RING 4
14-1
90990-17J052 O-RING 4 (2007/11/21) MD00121 OK
15 KGK-M9143-00X SPLINE 1
16 KGK-M9170-00X DC MOTOR ASSY 1
17
18 KGK-M9173-00X DRIVER 1
19 KGK-M9111-00X BRKT. COLLAR 1
20 KH2-M9105-11X PULLEY, MOTOR: P30-3GT 2
21 KV7-M9146-00X BELT (300-3GT-9) 2
22 90K63-201606 AC SERVO MOTOR 1
23 KGK-M9147-00X BRKT. MOTOR 1
24 KGJ-M9127-00X BELT 2, W.AXIS 1
25 KG7-M9111-01X PULLEY 1 1
26 KG7-M9112-01X PULLEY 2 1
27 KG7-M9113-01X PULLEY 3 1
28 KV7-M9118-00X PLATE, BRG. 2
29 90933-01J200 BEARING 2
30 KH2-M9121-00X BEARING 4
31 KV7-M9148-00X BRKT., TENSION 2
32 90933-02J608 BEARING 2
33 90933-03J608 BEARING 2
34 KGK-M9145-00X PULLEY, TENSIONER 2
35 KV7-M9149-00X COLLER,BRG 2
35-1 90990-41J057 COLLAR 2 (2008/4/17) ME20197 OK
36 91317-05020 BOLT HEX. SOCKET HEAD 2
37 KGK-M9151-00X DAMPER F 2
38 KGK-M9152-00X DAMPER R 2
39 KGK-M9150-00X DOG 1, ORIGIN 1
40 KGA-M911F-00X SENSOR, ORG 1
41 91317-04040 BOLT HEX. SOCKET HEAD 16
42 91317-06025 BOLT HEX. SOCKET HEAD 16
43 91317-06020 BOLT HEX. SOCKET HEAD 16
44 91317-06014 BOLT HEX. SOCKET HEAD 16
45 91317-05012 BOLT HEX. SOCKET HEAD 22
46 91317-04016 BOLT HEX. SOCKET HEAD 8
47 91317-05025 BOLT HEX. SOCKET HEAD 8
48 91317-05014 BOLT HEX.SOCKET HEAD 8
48-1 92017-05016 BOLT BUTTON HEAD 8 (2003/4/16) M340075 OK
49 92A08-03306 SCREW, SET 10
50 91317-03012 BOLT HEX. SOCKET HEAD 38
51 91317-04012 BOLT HEX. SOCKET HEAD 4
52 91317-04006 BOLT HEX. SOCKET HEAD 8
53 91317-03008 BOLT HEX. SOCKET HEAD 18
54
91312-04008 BOLT HEX. SOCKET HEAD 1 (2013/12/18) MKY0039
55
90990-28J018 WASHER,PLAIN 1 (2013/12/18) MKY0039
56
90990-41J006 COLLAR 3
15
A
37
1
14
53
45
13
16
18
8
45
49
20
49
21
30
52
20
43
24
27
49
51
28
B
50
42
2
50
37
42
22
23
50
49
25
49
26
21
51
28
45
45
43
2
1
47
48
11
11
43
3
1
4
4
38
30
52
41
46
7
44
1
3
43
30
52
40
38
41
46
7
47
6
47
47
44
10
10
44
6
5
5
29
48
44
39
50
45
9
35
36
34
33
32
31
12
19
14
29
45
35
36
34
33
32
31
30
52
54
55
56
