KGK_YHP2_PL - 第7页
2 3 Y -axis Moving-axis KGK-081028 18 19 17 16 18 33 8 50 28 1 2 18 18 8 30 43 31 32 66 21 72 21 65 48 57 52 49 55 13 7 41 42 37 50 67 51 29 54 47 4 49 6 45 60 55 49 13 7 20 23 16 17 19 57 54 47 4 6 45 60 59 44 38 39 56 …

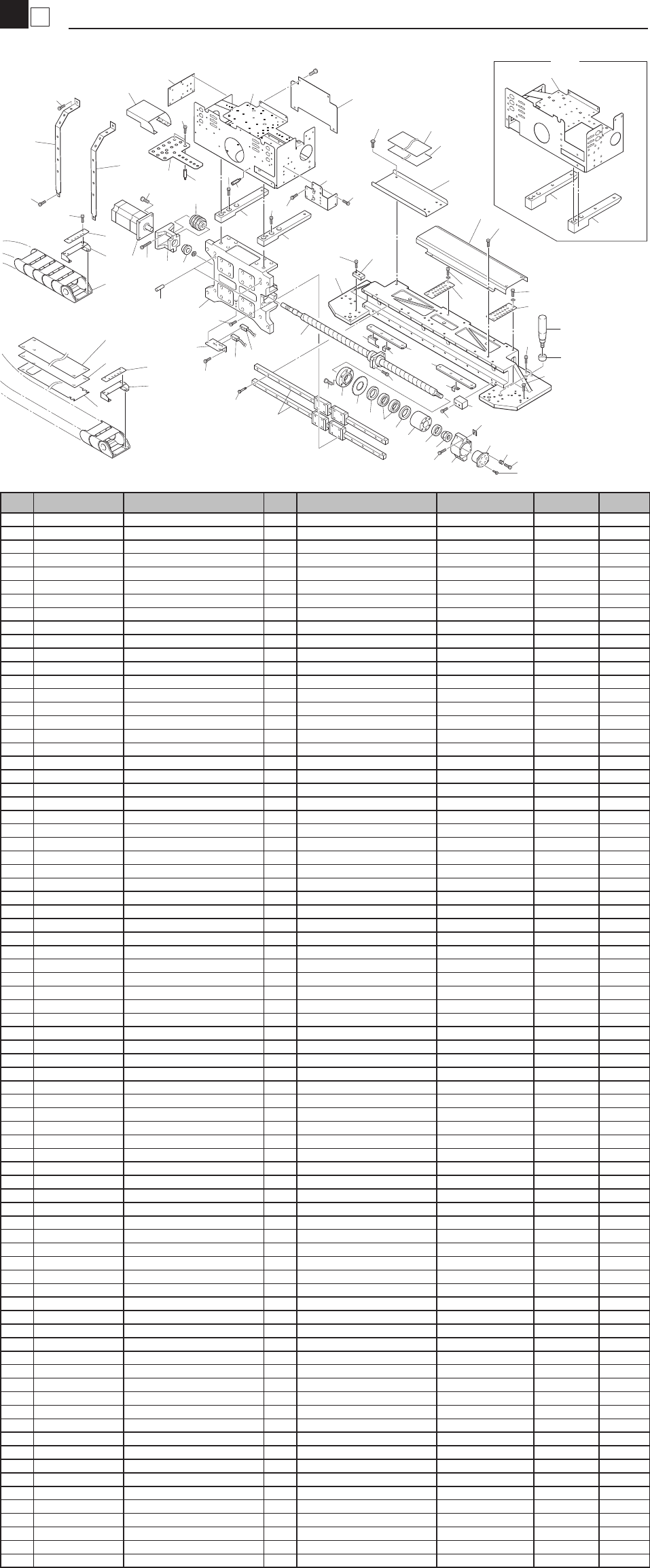

1
3
X-axis
Moving-axis
KGK-081028
35
35
55
32
44
38
33
34
53
66
62
63
63
49
11
28
50
52
60
61
50
1
7
59
54
51
62
41
42
57
56
58
59
55
64
43
9
3
31
2
27
6
63
26
21
8
19
14
18
4
17
13
16
49
36
46
45
37
37
22
23
40
40
38
38
65
39
39
65
32
OLD
40
40
65
67
25
10
29
5
16
24
12
20
15
30
48
48
64
47
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGK-M2211-01X FRAME,X-AXIS 1
2 KM0-M2220-00X COUPLING, X-AXIS 1
3 KM0-M2241-00X HOLDER, MOTOR X AXIS 1
4 KV7-M2242-00X HOLDER, BRG X AXIS 1
5 KV7-M2645-00X BRG.,ANGULAR 1
5-1 90990-25J005 BEARING 1 (2007/12/4) MDX0031 OK
5-2 90990-26J014 BEARING 1 (2008/4/24) ME40191 OK
6 KGK-M2261-00X HOLDER, HEAD 1
7 KGK-M2271-00X SCREW BALL X AXIS 1
8 KGK-M2276-S0X X-AXIS GUIDE SET 1
9 90K63-511403 AC SERVO MOTOR 1
10 KGK-M2251-00X DAMPER R 1
11 KGK-M2251-50X DAMPER L 1
12 KV7-M2240-00X SLEEVE, BRG. 1
13 KV7-M2243-00X HOUSING, BRG. X 1
14 KV7-M2244-00X COVER, BRG. HOUSING 1
15 KV7-M2246-00X COIL SPRING 6
16 KV7-M2647-00X OIL SEAL 2
17 KV7-M2648-00X SPACER 3
17-1 90990-41J100 COLLAR 3 (2008/4/11) ME30019 OK
18 KG2-M9173-00X LOCK NUT 1
19 KV7-M224S-XXX SHIM, RING SEL. 1
20 KV8-M224S-10X SHIM, PLATE SEL. 1
21 KV7-M2604-00X SUPPORT UNIT 1
22 91317-04010 BOLT HEX. SOCKET HEAD 22
23 KV7-M2251-00X NYLOCK BOLT(M4X16) 22
23-1 91317-04016 BOLT HEX.SOCKET HEAD 22 (2005/2/7) MB20025 OK
24 91317-05014 BOLT HEX. SOCKET HEAD 4
25 91317-05020 BOLT HEX. SOCKET HEAD 4
26 91317-05035 BOLT HEX. SOCKET HEAD 4
27 91317-06018 BOLT HEX. SOCKET HEAD 4
28 91317-05016 BOLT HEX. SOCKET HEAD 2
29 91317-05040 BOLT HEX. SOCKET HEAD 2
30 91317-04030 BOLT HEX. SOCKET HEAD 6
31 99480-06014 PIN, PARALLEL 2
32 KGK-M2236-00X PLATE A 1
32-1 KGK-M2236-01X PLATE A 1 TYPE : FF,FD (2008/3/27) ME30100 SET
33 KGK-M2237-00X PLATE B 1
34 KGK-M2239-00X PLATE D 1
35 KGK-M2233-00X PLATE, CABLE 2
36 KGK-M2235-00X STAY, EJECTOR 1
37 91317-03006 BOLT HEX. SOCKET HEAD 2
38 91317-04005 BOLT HEX. SOCKET HEAD 17
39 90563-04J200 SPACER BOLT 2
40 KV7-M2239-00X BRACKET 1 2
40-1 KV7-M2239-01X BRACKET 1 2 (2008/3/27) ME30100 SET
41 KGK-M2205-00X SENSOR, ORG(L=850) 1
42 KGK-M2206-01X SENSOR, OT(L=850) 1
43 KGK-M2267-A0X CABLE,DUCT 1
43-1 KGT-M2678-A0X GUIDE,CABLE Y 1 (2004/7/8) MA70037 OK
43-2 KGT-M2678-A1X GUIDE,CABLE Y 1 (2004/7/12) MA70035 OK
44 KV7-M221A-A0X COVER, DUCT ASSY 1
45 K94-M220A-00X TAPE X-AXIS 1
46 K94-M220A-10X TAPE X-AXIS 1
47 KV7-M2282-00X DOG, ORG 1
48 KV7-M2283-00X DOG, 2ND LIMIT 2
49 KGK-M2202-00X BRKT. DOG 2
50 KV7-M226B-00X PLATE 2
51 KV7-M2291-00X BRACKET, SENSOR 1
52 KGK-M226A-00X COVER CABLE 1
53 KGK-M2201-00X DUCT PLATE 1
53-1 KGK-M2201-01X DUCT PLATE 1 (2008/10/23) ME00096 OK
54 KV7-M2268-00X BRACKET 1, TAPE 1
55 KV7-M2269-00X BRACKET 2, TAPE 1
56 KGK-M220A-00X TAPE , X DUCT 1
57 KGK-M220B-00X TAPE 2, X DUCT 1
58 KGK-M220C-00X TAPE 3, X DUCT 1
59 KV7-M2266-00X PLATE, NUT 2
60 KV7-M2256-00X GRIP 1
61 KV7-M2257-00X SPACER, GRIP 1
62 91317-04008 BOLT HEX. SOCKET HEAD 16
63 91317-04010 BOLT HEX. SOCKET HEAD 26
64 91317-06012 BOLT HEX. SOCKET HEAD 8
65 91317-06018 BOLT HEX. SOCKET HEAD 12
66 K16-90101-08X BOLT:TP-M4X8 2
66-1 90990-46J002 BOLT,THIN HEAD 2 (2008/6/3) ME30136 OK
67 91317-05025 BOLT HEX. SOCKET HEAD 16
68 KGV-M2236-00X PLATE A 1 TYPE : 4M

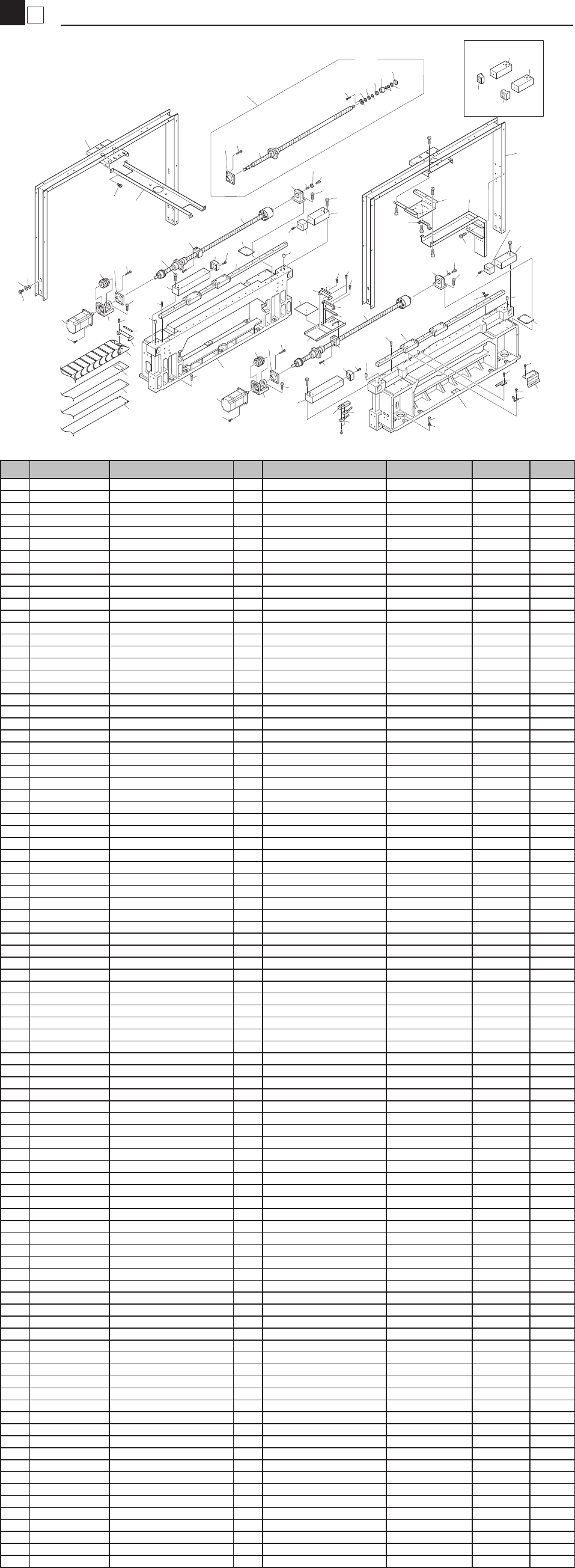

2
3
Y-axis
Moving-axis
KGK-081028
18
19
17
16
18
33
8
50
28
1
2
18
18
8
30
43
31
32
66
21
72
21
65
48
57
52
49
55
13
7
41
42
37
50
67
51
29
54
47
4
49
6
45
60
55
49
13
7
20
23
16
17
19
57
54
47
4
6
45
60
59
44
38
39
56
34
25
26
27
35
36
40
46
41
48
61
63
49
64
24
62
62
5
14
15
15
9
11
53
54
4
3
10
14
12
20
23
26
71
46
73
62
24
58
OLD
70
69
59
21
22
22
21
Wafer
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV7-M2611-01X FRAME R,Y AXIS 1
1-1 KV7-M2611-02X FRAME R,Y AXIS 1 (2003/2/17) M320070 OK
2 KV7-M2612-01X FRAME L,Y AXIS 1
2-1 KV7-M2612-02X FRAME L,Y AXIS 1 (2006/7/25) MC70028 OK
3 KV7-M2671-03X SCREW BALL Y AXIS 2
3-1 KGK-M2671-00X SCREW BALL Y AXIS 2 (2006/3/20) MC30081 OK
4 KV7-M2604-00X SUPPORT UNIT 2
5 KG2-M9173-00X LOCK NUT 2
6 KV7-M2641-00X HOLDER, MOTOR Y 2
7 KV7-M2642-01X HOLDER, BRG. Y 2
8 KV7-M264S-XXX SHIM, PLATE SEL. 1
9 KV7-M2243-00X HOUSING, BRG. X 2
10 KV7-M2244-00X COVER, BRG. HOUSING 1
11 KV7-M2645-00X BRG.,ANGULAR 2
11-1 90990-25J005 BEARING 2 (2007/12/4) MDX0031 OK
11-2 90990-26J014 BEARING 2 (2008/4/24) ME40191 OK
12 KV7-M224S-XXX SHIM, RING SEL. 1
13 KV7-M2646-00X COIL SPRING 12
14 KV7-M2647-00X OIL SEAL 4
15 KV7-M2648-00X SPACER 6
15-1 90990-41J100 COLLAR 6 (2008/4/11) ME30019 OK
16 KGK-M2651-00X BRACKET DAMPER 2
16-1 KGK-M2651-01X BRACKET DAMPER 2 2004/1/23 M340036 NG
17 KGK-M2652-01X DAMPER 2
17-1 KGK-M2652-02X DAMPER 2 2004/1/23 M340036 NG
18 KV7-M2653-00X PIN,PARALLEL 2
18-1 90990-18J012 PIN,PARALLEL 2 (2007/11/30) MD00140 OK
19 91317-04015 BOLT HEX.SOCKET HEAD 4
19-1 91317-04014 BOLT HEX.SOCKET HEAD 4 (2008/2/1) ME10057 OK
20 KGK-M2660-00X DAMPER R1 2 S.T.D
21 KGK-M2661-00X BRACKET DAMPER 2
21-1 KGK-M2661-01X BRACKET DAMPER 2 2004/1/23 M340036 NG
22 KGK-M2652-01X DAMPER 2 Wafer
22-1 KGK-M2652-02X DAMPER 2 Wafer 2004/1/23 M340036 NG
23 91317-04015 BOLT HEX. SOCKET HEAD 4
24 KV7-M2666-01X HOLDER, NUT Y AXIS 2
25 KV7-M2682-01X DOG, ORG. 1
26 KV7-M2683-01X DOG, 2ND LIMIT 2
27 KV7-M2691-01X BRACKET,SENSOR 1
27-1 KV7-M2691-02X BRACKET,SENSOR 1 (2004/9/1) MA90006 OK
28 KV7-M2694-00X BRACKET A, GUIDE 1
29 KGK-M2695-00X BRACKET B, GUIDE 1
30 KGA-M26F1-00X FRAME 1 1
31 KGA-M26F2-00X FRAME 2 1
32 KGK-M26F3-00X FRAME 3 1
33 KV7-M26F4-00X DUCT, HARNESS 1
34 KGK-M26F5-00X BRACKET, HARNESS 1
35 KGA-M260A-00X SENSOR, ORG(L=300) 1
36 KGA-M260B-00X SENSOR, OT(L=300) 1
37 KV7-M260A-00X TAPE, Y-AXIS 1
38 KV7-M260B-00X TAPE, Y-DUCT 1
39 KV7-M260C-00X TAPE 2, Y-DUCT 1
40 KV7-M260D-00X TAPE 3, Y-DUCT 1
41 KV7-M2667-00X PLATE 2
42 KV7-M2668-00X BRACKET 1, TAPE Y 1
43 KV7-M2669-00X BRACKET 2, TAPE Y 1
44 KV7-M2678-00X GUIDE, CABLE Y 1
45 90K63-611404 AC SERVO MOTOR 2
46 KV7-M2676-S2X Y-AXIS GUIDE SET 1
47 KV8-M2611-00X COUPLING,Y-AXIS :LCD 1
47-1 KM5-M2611-00X COUPLING,Y-AXIS :LCD 2 (2003/2/11) M320042 OK
48 KV7-M2661-00X NYLOCK BOLT(M12X50) 20
48-1 90990-01J028 BOLT,HEX.SOCKET HEAD 20 (2007/10/29) MD00030 OK
49 KV7-M2662-01X NYLOCK BOLT(M6X30) 16
49-1 90990-01J029 BOLT,HEX.SOCKET HEAD 16 (2007/10/29) MD00030 OK
50 KV7-M2698-00X PLATE 1, CLAMP 2
51 KV7-M2699-00X PLATE 2, CLAMP 1
52 91312-04008 BOLT HEX.SOCKET HEAD 10
53 91312-04010 BOLT HEX.SOCKET HEAD 12
54 91317-04014 BOLT HEX. SOCKET HEAD 8
55 91317-04030 BOLT HEX. SOCKET HEAD 12
56 91317-05010 BOLT HEX. SOCKET HEAD 2
57 KV7-M2663-00X NYLOCK BOLT(M5X16) 40
57-1 90990-01J030 BOLT,HEX.SOCKET HEAD 40 (2007/10/29) MD00030 OK
58 91317-05018 BOLT HEX. SOCKET HEAD 8
59 91312-06010 BOLT HEX.SOCKET HEAD 28
60 91317-06018 BOLT HEX. SOCKET HEAD 16
61 90201-124G9 WASHER, PLAIN 20
62 KGK-M2671-A0X Y-AXIS B.S SUB ASSY 2 SPARE 2006/8/1 MC80052
63 98902-03004 SCREW BINDING HEAD 4
64 98902-04006 SCREW BINDING HEAD 6
65 90990-12J001 SCREW BIN.HEAD W/W
66 98902-05010 SCREW BINDING HEAD 4
67 91317-04008 BOLT HEX.SOCKET HEAD 2
68 91317-05035 BOLT HEX.SOCKET HEAD 8
69 92903-06200 WASHER PLAIN 20
70 92990-06400 WASHER EXTL.TOOTHED 20
70-1 90172-00J060 WASHER,EXTL.TOOTHED 20 (2008/4/15) ME40115 OK
71 91317-04035 BOLT HEX.SOCKET HEAD 2
72 91317-05050 BOLT HEX.SOCKET HEAD 4
73 92907-04200 WASHER PLAIN 12

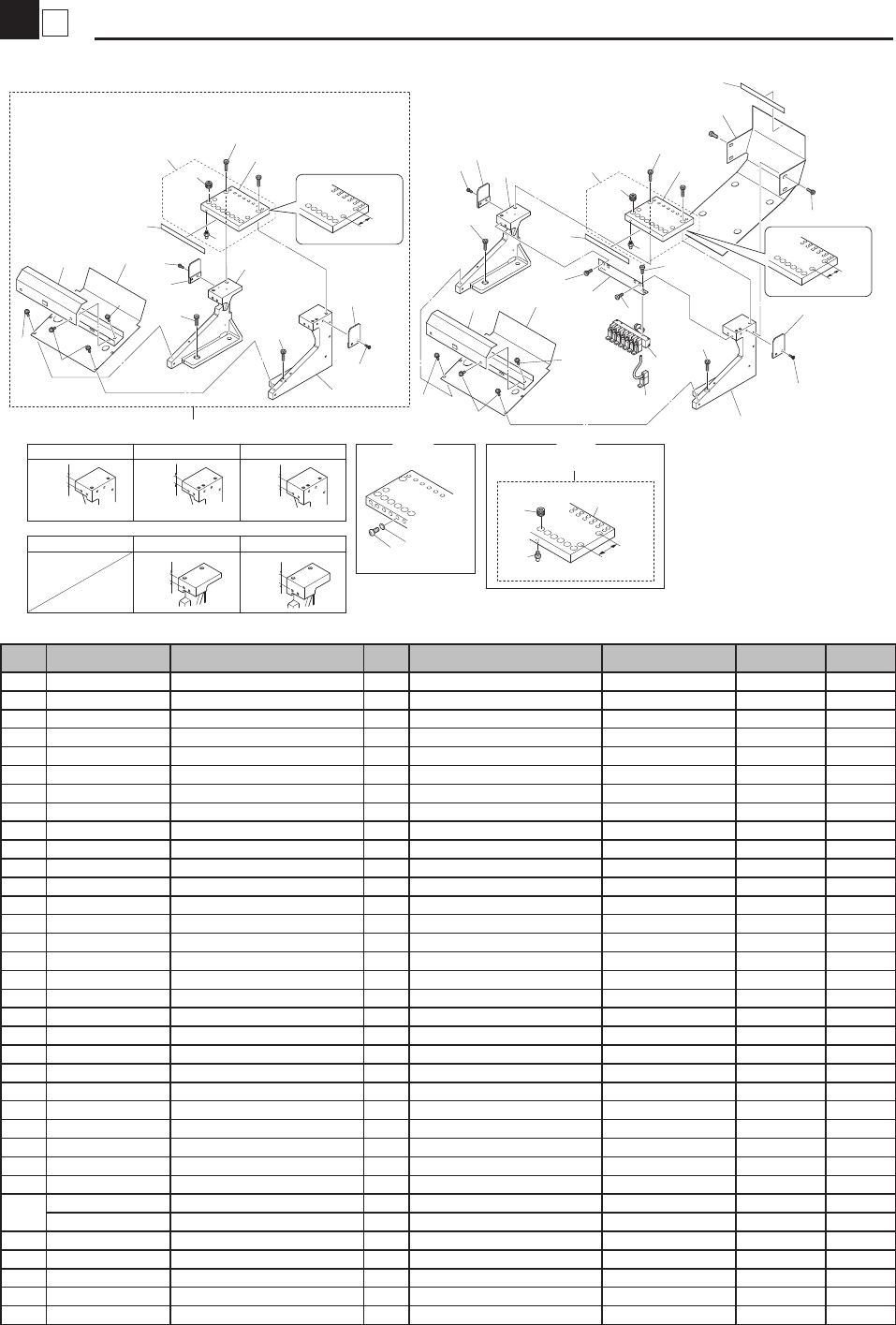

1
4
Feeder Holder 8
Feeder Holder
KGK-081028
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KG2-M3401-C2X PLATE C,FEEDER 1
1-1 KG2-M3401-C3X PLATE C,FEEDER 1 (2005/2/14) MB20042 NG
2 KG2-M3407-A03 AIR JOINT 8
3 $BF4BU JOINT 8
7 98907-03004 SCREW BINDING HEAD 8
7-1
Delete
(2004/4/20) M440062
8 KM0-M3416-00X GASKET 8
8-1
Delete
(2004/4/20) M440062
9 KM0-M3402-C0X GUIDE C-1, TAPE 1
10 KG2-M3403-C1X GUIDE C-2, TAPE 1
11 KM0-M3405-01X STAND,1 1 Fig D
11-1 KM0-M3405-02X STAND,1 1 Fig E (2004/4/20) M440062 OK
11-2 KM0-M3405-03X STAND,1 1 Fig F (2004/11/1) MA00129 NG
12 KM0-M3406-01X STAND,2 1 Fig G
12-1 KM0-M3406-02X STAND,2 1 Fig H (2004/11/1) MA00129 NG
13 KM0-M3408-C0X BRACKET C VALVE 1
14 KL0-M3409-C1X COVER C VALVE 1
15 KGA-M3410-80X VALVE 8-R 1
16 KM0-M3417-00X GUIDE 4 2
18 91317-06020 BOLT HEX. SOCKET HEAD 4
19 91317-04010 BOLT HEX. SOCKET HEAD 12
20 90990-12J005 SCREW BINDING HEAD 10
21 91317-08020 BOLT HEX. SOCKET HEAD 4
22 KU5-M3430-00X LABEL,FEEDER 1
22-1
KU5-M3430-01X LABEL,FEEDER 1 No.1~16 (2007/12/24) MDY0110 OK
KU5-M3430-20X LABEL,FEEDER 1 No.101~160 (2007/12/24) MDY0110 OK
23 KGA-M37P0-00X VALVE KIT 1
SPARE PARTS
24 KGK-M3400-A0X TRAY HOLDER ASSY 1
26 KM5-M34B0-00X FEEDER PLATE ASSY. 1
26-1 KM5-M34B0-01X FEEDER PLATE ASSY.8 1 (2004/4/20) M440062 NG
1
18
22
15
16
11
19
22
13
12
16
3
9
14
21
19
19
19
20
24
23
19
21
19
10
2
1
18
16
11
21
19
22
12
16
3
9
14
20
21
19
26
20
20
2
26
20
20
50mm
38mm
38mm
7
8
OLD
3
2
26
1
OLD
Fig D Fig E Fig F
16mm
16mm
20mm
Fig G Fig H
16mm
20mm
