Page HANWHA TECHWIN 95 SM411 Control Rack Ass’y NO. P ART NO. P ART NAME Q'TY Old No. St o c k Apply Reference A-1 AM03-001607A PC_VME_RACK_MODULE_ASSY J9 1731013A 1 J91731013A A-1 AM03-001606A P C_VME_RACK_MODULE_A…
Page

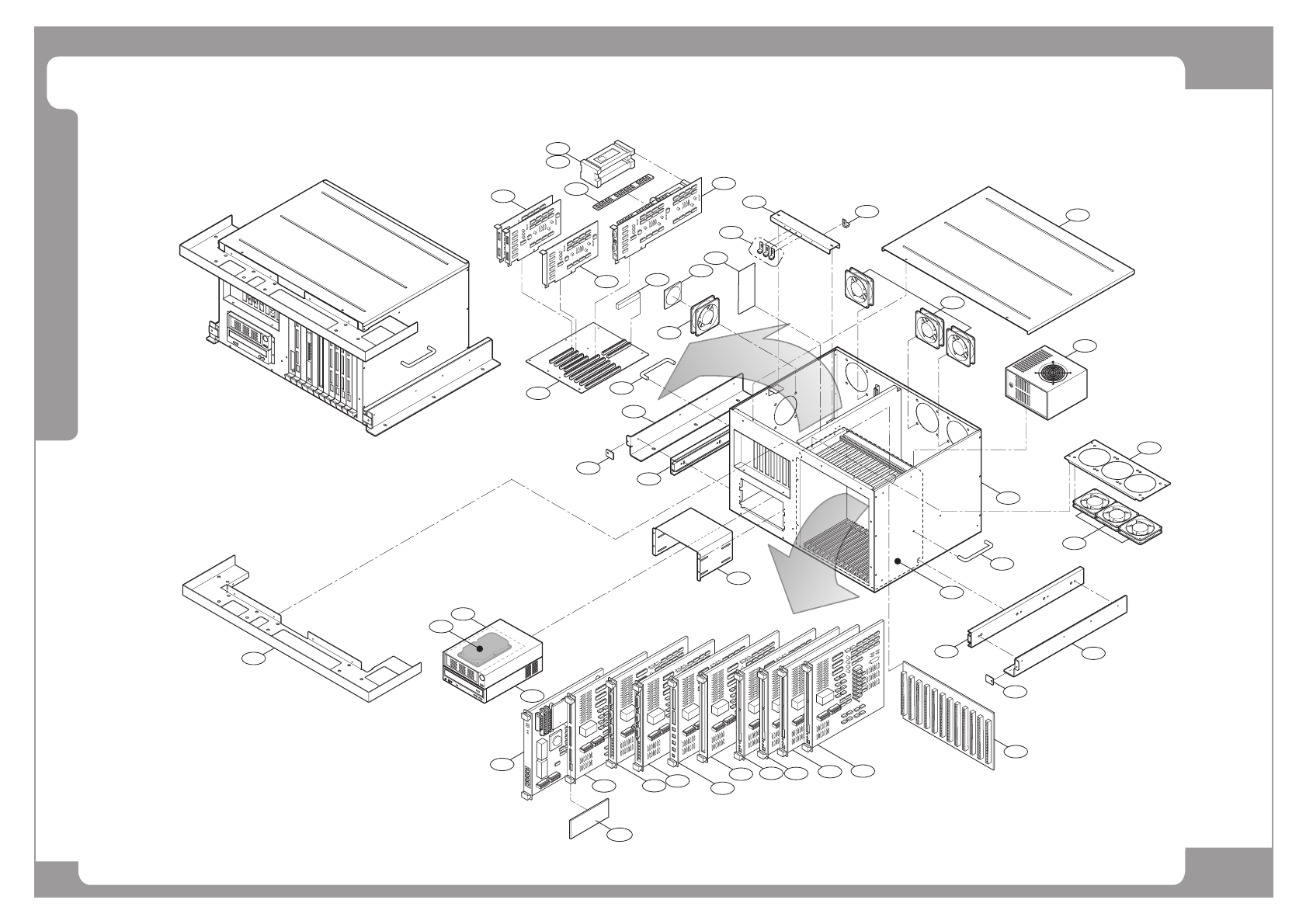

HANWHA TECHWIN
94
SM411
Control Rack Ass’y
7
8
9
9
10
11
12
13
38
14
15
16
17
2
1
18
19
20
21
4
3
2
6
6
5
5
22
23
24
12
25
27
26
28
40
34
35
32
31
33
29
30
39
35
36
37
Page
HANWHA TECHWIN
95
SM411
Control Rack Ass’y
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A-1 AM03-001607A PC_VME_RACK_MODULE_ASSY J91731013A 1 J91731013A
A-1 AM03-001606A PC_VME_RACK_MODULE_ASSY_MEGA 1 J90601026A
1 J91741013B SM411_CAN_MASTER_BOARD 1 J91741013A
2 J91741081A SM321_VISION_IF_BOARD VER 1.2 2
3 J91741012A SM411_TWIN_SERVO_BOARD 1
4 J91741016B SM411_VME_IO_BOARD 1 J91741016A
5 J91741014B X7043_SEDES_BOARD 2 J91741014A
6 J91741015A X7043_STEP_CONTROL_BOARD VER1.0 2
7 J61111003A SM451_PC_VME_DUO_RACK SM451_DUO_RACK 1 J61110006B
8 EP10-900149 VME_BACKPLANE KVMEB-12J1 1 EP10-900123
9 MC15-900003 PC SLIDE RAIL[3832B-18] 1
10 J90990193B VME RACK ASSY 1 J9099193A
11 EP07-901510 DC FAN(VME)[EC8015L12B(15mm)] 3
12 EP07-901511 CASE FAN 3 J3105023A
13 EP06-000201 STW420_ABDD 1 EP06-901044/ J44021035A
14 CD05-900070 SBC NUPRO-935A/DV 1 CD05-900061
15 FC09-001843A BRACKET-BRACKET_SSD 1 FC08-900083 /FC08-900090 FC08-900090/ FC08-900083 HDD OPTION
16 CD03-000060 HARD DRIVE-TS64GSSD630 1 CD03-000048 /CD05-000050/CD05-000066
17 J91741034A MVME3100_ASSY MVME3100_SM4XX_ASSY 1 Including a DDR_SDRAM_1GB
18 CD03-900008 DVD-ROM 1 CD03-900007 HDD OPTION
19 CD05-000053 CPU-2 DUO E8400;CPU+FAN,3.0GHZ 1 CD05-900013/ CD05-900014
20 EP07-901512 CPU_COOLER CRUX P5M2 1
21 CD05-000068 MODULE,MEMORY-MT16HTF25664AZ-800H1_DDR2 1 CD05-900046 /CD05-900051
22 J91741002B SAMC-ME 6CH 2 Mega
J91741037B SAMC-62 2 Non-Mega
23 AM03-000971A ASSY,BOARD-SM411_SM421_PCI_IO_BOARD 1
24 EP10-000753 BOARD,ETC-HPCI-6S4-076um;backplane 1 EP10-900147
Page
HANWHA TECHWIN
96
SM411
Control Rack Ass’y
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
25 J91741063A PMC_NVRAM_BOARD VER 1.2 1
26 HP04-000074 FILTER,AIR-fan filter_ metal_80mm 1
27 EP10-000749 DEHUMIDIFIER-MR-100 2
28 FC29-000042 CAP-DUST CAP;PA10:RUBBER 5
29 3
30 1
31 1
32 1
33 1
34 1
35 2
36 1
37 1
38 1
39 1
40 1
