Page HANWHA TECHWIN 91 SM411 Cover Ass’y (2/3) NO. P ART NO. P ART NAME Q'TY Old No. Stoc k Apply Reference 1 FC38-900086 GAS_SPRING KS2-3 00-PS1-028 4 2 J70521075C GAS SPRING BRACKET1 4 3 J70521 158A LCD_HINGE_PLA …
Page
HANWHA TECHWIN
90
SM411

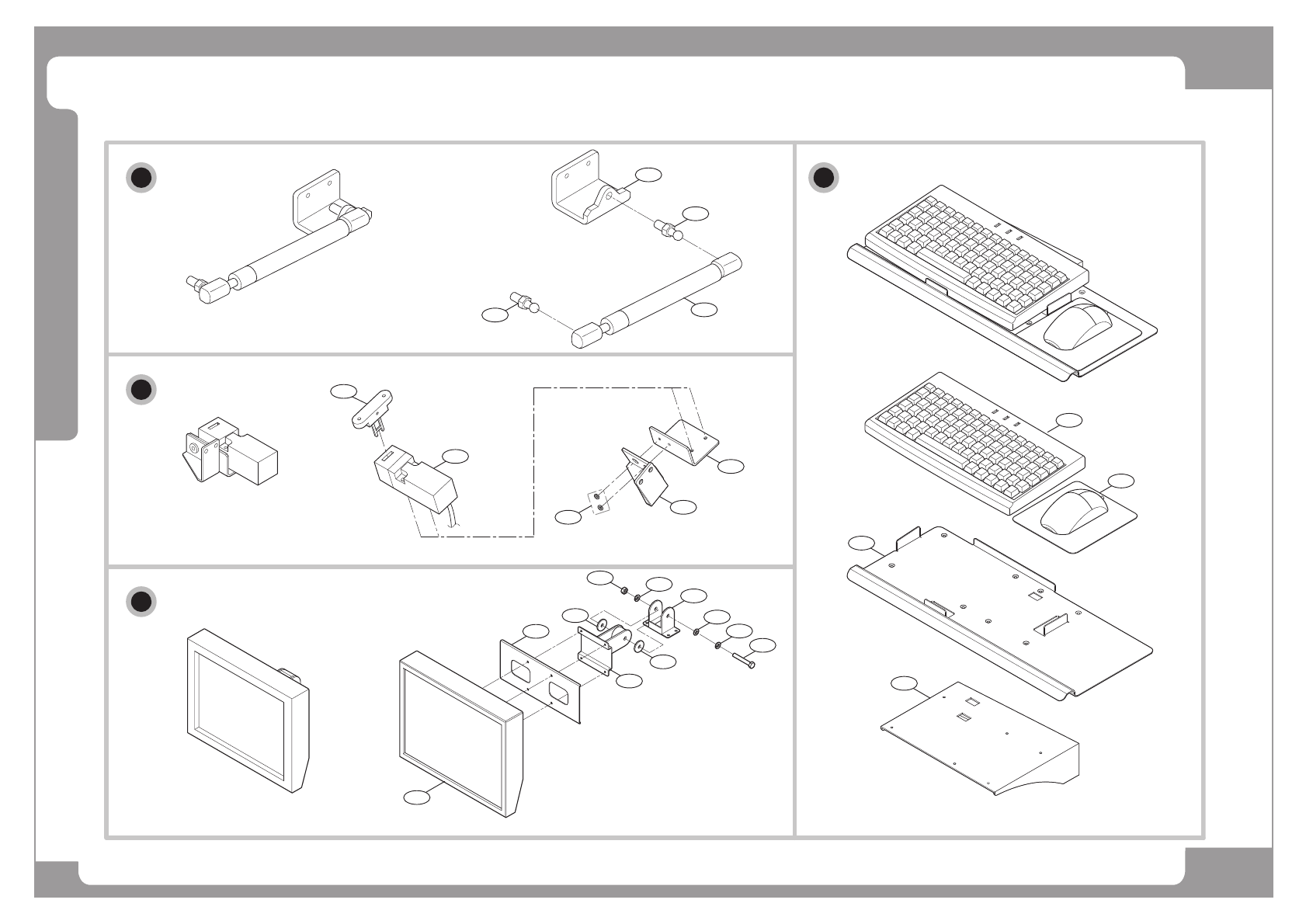

Cover Ass’y (2/3)
A
B
C
D
OMRON
D4DS
8
9
1
2
3
4
7
6
10
11
12
15
13
13
14
16
17
19
19
20
21
18
5
5
Page
HANWHA TECHWIN
91
SM411
Cover Ass’y (2/3)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 FC38-900086 GAS_SPRING KS2-300-PS1-028 4
2 J70521075C GAS SPRING BRACKET1 4
3 J70521158A LCD_HINGE_PLATE J70521158A 1
4 J70521059A LCD BRACKET 1
5 J7252061A PAD BRACKET 2
6 CD06-000004 LCD MONITOR ,PAD-BRACKET[J7252061A] 1 CD05-900119/ CD05-900126
7 FC15-000505A MONITOR GUIDE PL 1 J70521373A
8 J70521112C KEYBOARD BASE 1
9 J70521113C KEYBOARD BASE BRACKET 1
10 J90511018B DOOR SWITCH ASSY 1
11 CD04-900026 MINI_KEYBOARD 5510UH CD04-900024
12 CD04-000013 COMPUTER MOUSE-MS622;OPTICAL MOUSE,330mm CD04-900008/ CD04-900012
13 2
14 1
15 2
16 1
17 1
18 1
19 2
20 1
21 1
Page
HANWHA TECHWIN
92
SM411

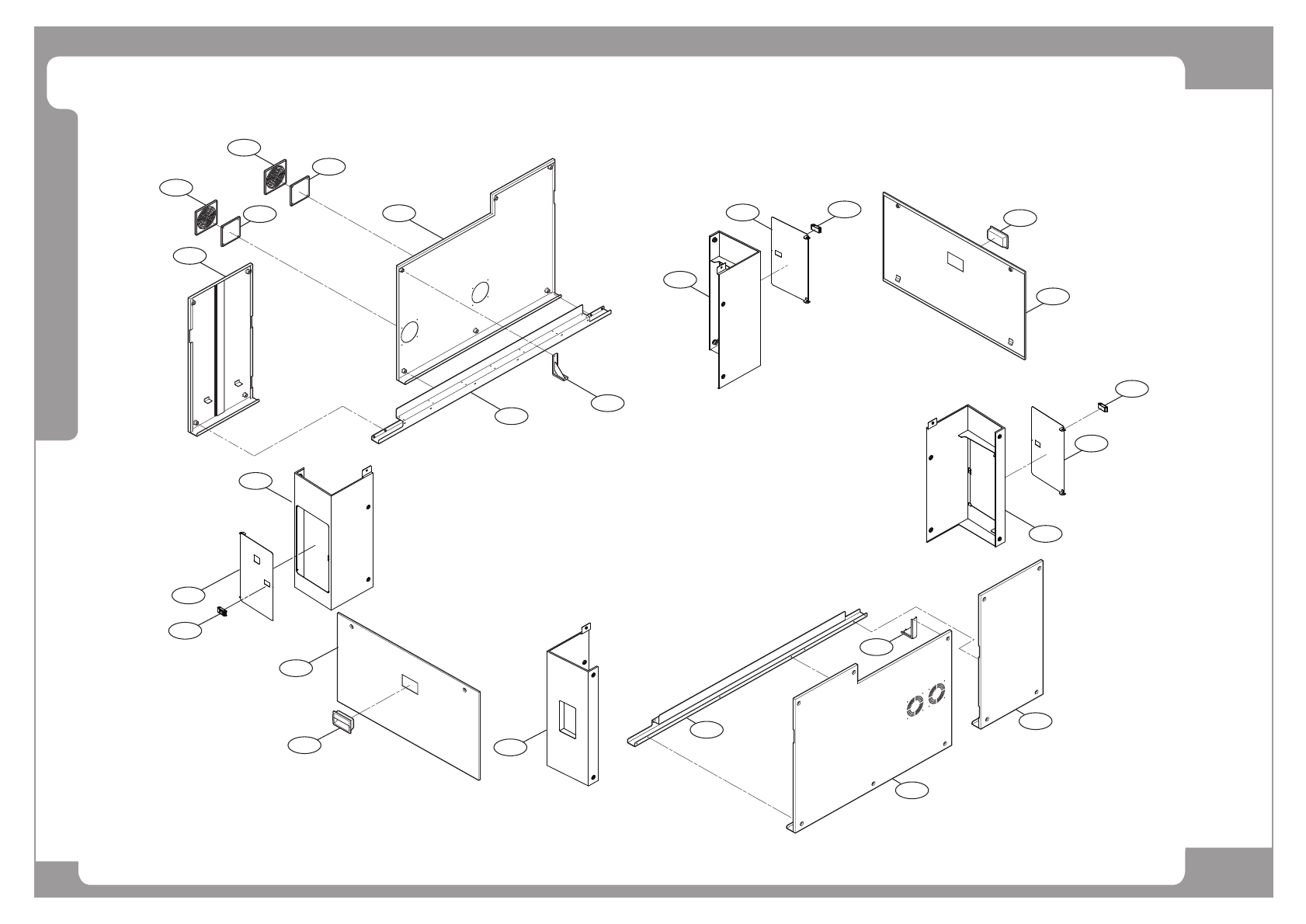

Cover Ass’y (3/3)
5
7
X[
XW
XX
7
1
2
6
3
1
2
X[
`
XX
[
_
XY
XY
XY
XZ
]
X]
X]
X\
X\
