Page HANWHA TECHWIN 167 SM411 Vision Board Interface NO. PA R T N O . P ART NAME Q'TY Old No. Sto ck Apply Reference 1 J90831098A HEAD1 _FIDUCIAL_CAMERA_CABLE _ASSY SM33-VI 1 J90831 103A 2 J90831 100D HEAD2_FIDUCIAL…
Page
HANWHA TECHWIN
166
SM411
Vision Board Interface
CN5
CN2
CN1
CN3
J1
CN4
J2
J3
J4
J5
J6
CH1
CH2
DSUB- 15PIN
DSUB- 15PIN
DSUB- 15PIN
DSUB- 44PIN
FCI 9PINFCI 9PIN
DSUB- 15PIN DSUB- 15PIN
+12V/12G,+HD/- HD,+VD/- VD(CH1,C H2)
SM33_VIS013
SM33_VIS001(SM33_VIS003)
DSUB- 9PIN
FID_CAMFID_CAM
SM33_VIS005(SM33_VIS007)
SM33_VIS002
SM33_VIS008(SM33_VIS010)
SM33_VIS009
SM33_VIS006
SM 3 3 _ V I S0 0 4
SM33_VIS011
NEXTEYE B/D
MEGA : SM33_VIS012
VISION MUX B/D
TO VME
FIX CAM. # 1
FIDUCIAL CAM.
INDUS TIAL PC
FLAT CABLE
CAMERA IO B/D
FLY CAM.1
FLY CAM.2
FLY CAM.3
FLY CAM.4
FLY CAM.5
FLY CAM.6
FIX CAM. # 2
^<`
^;`
^44`
^:`
^9`
^4` ^5`
^6`
^7` ^8`
^43`
Page
HANWHA TECHWIN
167
SM411
Vision Board Interface
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J90831098A HEAD1_FIDUCIAL_CAMERA_CABLE_ASSY SM33-VI 1 J90831103A
2 J90831100D HEAD2_FIDUCIAL_CAMERA_CABLE_ASSY SM33-VI 1
3 J90831104B HD2_FLY_CAM_PW-SYNC_CABLE_ASSY SM33-VIS0 1 J90831104A
4 J90831105D HEAD1_FLY_CAM_SIG_CABLE_ASSY 1 J90831105B
5 J90831107D HEAD2_FLY_CAM_SIG_CABLE_ASSY 1 J90831107B
6 J90831101B NEXTEYE_BD_I-F_CABLE_ASSY_HR70 SM33-VIS0 2 J90831101A
7 AM03-005883A NEXTEYE_BD_I-F_CABLE_ASSY_MEGA SM33-VIS0 2 J90831109A
8 AM03-013558A FLAT_FID_CAMERA_CABLE_ASSY SM33-VIS002 1 J90831099A /J90831099B
9 J90831103B FLY_CAM_PWR-SYNC_EXT_CABLE_ASSY SM33-VIS 1 J90831103A
10 AM03-001585B FLY_CAM_SIG_EXT_CABLE_ASSY 1 J90831106G /AM03-001585A
11 AM03-005553B FLYING CAMERA I/F CABLE ASSY 6 AM03-001506A /AM03-001506B
Page
HANWHA TECHWIN
168
SM411

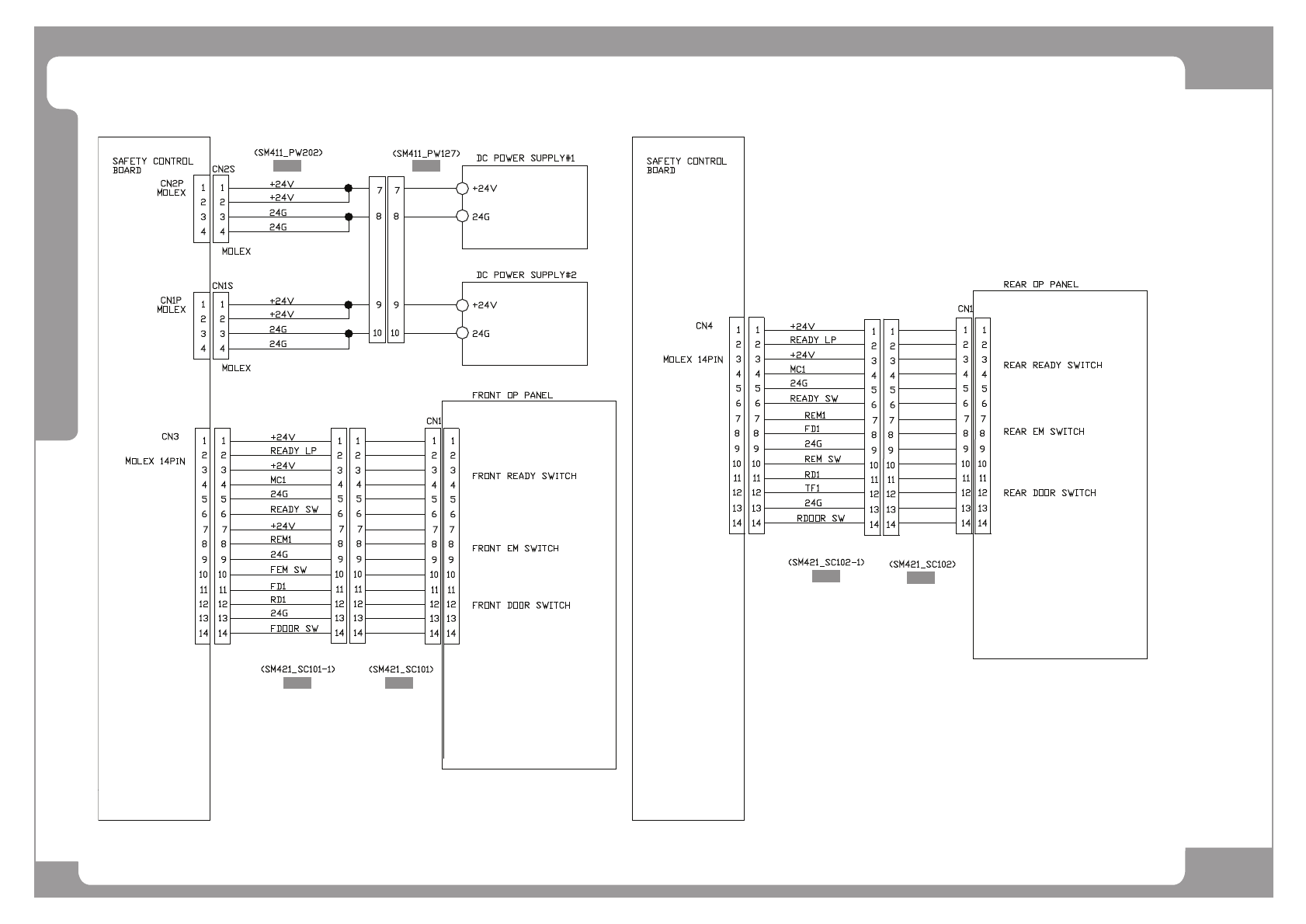

Safety Control Board Interface (1/5)
[1] [2]
[3] [4]
[5]
[6]
