Page HANWHA TECHWIN 20 SM411 Conveyor Ass'y (2/6) 46 2 1 6 29 7 44 57 23 24 7 59 61 28 58 25 57 52 7 30 19 22 21 16 42 36 55 13 31 26 11 57 54 35 50 50 17 41 34 15 32 33 40 7 29 6 1 28 59 7 7 45 60 60 36 55 42 58 18…
Page
HANWHA TECHWIN
19
SM411
Conveyor Ass'y (1/6)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
54 EP19-900101 PHOTOELECTRIC_SENSOR BYD30-DDT-S 5
55 MC13-900162 BALL_SCREW 2BTK1405-2.6ZZ+721.5LC7T 1
56 J71531009A PULLEY_B_M J71531009A 2
57 2
58 FC18-902727 SOCKET HEAD CAP SCREW
59 FC18-902730 SOCKET HEAD CAP SCREW M3*15 (NI/ZN) 2
60 FC18-901944 FLAT HEAD SOCKET SCREW M4*12,ZN-B 2
61 J70531075A SHUTTLE_MOTOR_TENSION_PLATE J70531075A 1
Page
HANWHA TECHWIN
20

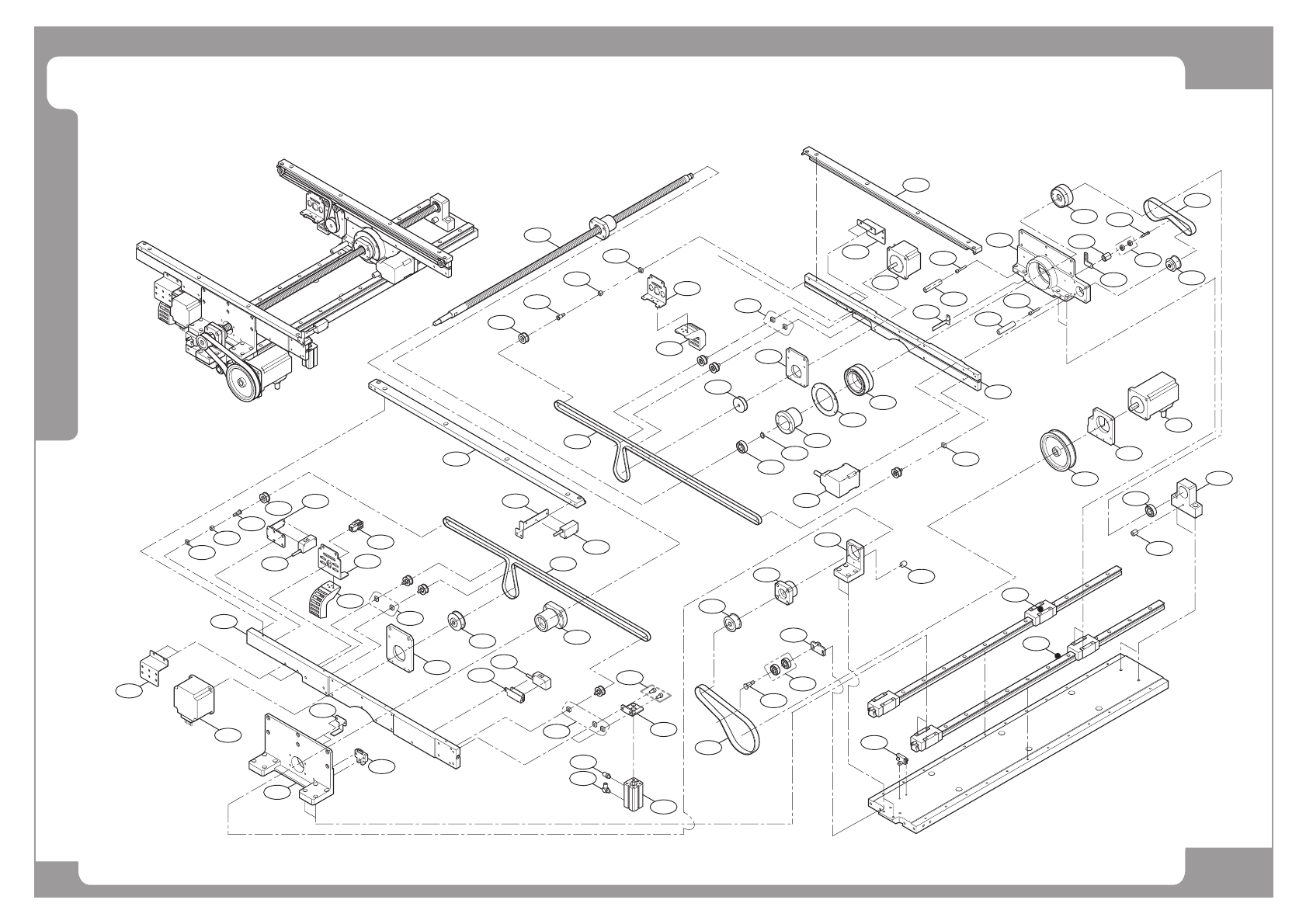

SM411
Conveyor Ass'y (2/6)
46
2
1
6
29
7
44
57
23
24
7
59
61
28
58
25
57
52
7
30
19
22
21
16
42
36
55
13
31
26
11
57
54
35
50
50
17
41
34
15
32
33
40
7
29
6
1
28
59
7
7
45
60
60
36
55
42
58
18
53
51
47
9
10
20
27
49
8
5
39
48
4
3
38
37
56
56
12
14
16
43
14
62
Page
HANWHA TECHWIN
21
SM411
Conveyor Ass'y (2/6)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 MC19-900044 IDLER_ASSY_195 A-1_19.5 6 J72531001A /IDLER_2 J72531001A
2 EP19-900108 PHOTO SENSOR 4
3 EP19-900109 PHOTO SENSOR 2
4 MC03-900023 BALL BEARING 4
5 MC03-900080 BALL BEARING[608ZZ] 4
6 J2101818 IDLER SHAFT-S [0135-641105] 6
7 J7053184A SQUARE NUT M4 8
8 J70531028A TENSION_BEARING_PIN J70531028A 4
9 J71531008A PULLEY_W_MOTOR J71531008A 2
10 J71531004B WORK_REAR_FRAME 2
11 J72531005B DUMP_BOX 2 J72531005A
12 FC18-901667 C-RING [10mm (SHAFT)] 1
13 MC03-900049 BEARING 6908ZZ 2
14 MC13-900069 LM_GUIDE_SHUTTLE SBS15SL-2-K1-728L-N 2
15 MC03-900124 BEARING[694ZZ] 2
16 MC05-900059 BELT_SHUTTLE_1650 MAM-5P-1169-6W 2
17 MC05-900060 TIMMING_BELT_SW 2
18 MC05-900061 TIMMING_BELT_SM 1
19 HP03-001008 CYLINDER AQ2A12-30D 1 HP03-900009
20 MC04-900030 SUPPORT UNIT[FK-10] 1
21 HP06-900010 ELBOW FITTING [M-5HLH-4] 1
22 HP06-900263 HOSE NIPPLE 1
23 J70531031A SM_HOME_SENSOR_DOG J70531031A 1
24 J70531032A ST_SENSOR_BRACKET_2 J70531032A 1
25 J70531033A ST_SENSOR_BRACKET_1 J70531033A 1
26 J70531036A NUT_HOUSING J70531036A 1
27 J70531037A MOTOR-BRACKET-SHUTTLE J70531037A 1
