Page HANWHA TECHWIN 31 SM411 Conveyor Ass'y (5/6) NO. P ART NO. P ART NAME Q'TY Old No. Stoc k Apply Reference 1 J70531022A BRACKET_W ORK_SENSOR_ 2 J70531022A 2 2 J70531023A BRACKET_W ORK_SENSOR_ 1 J70531023A 2…
Page
HANWHA TECHWIN
30
SM411

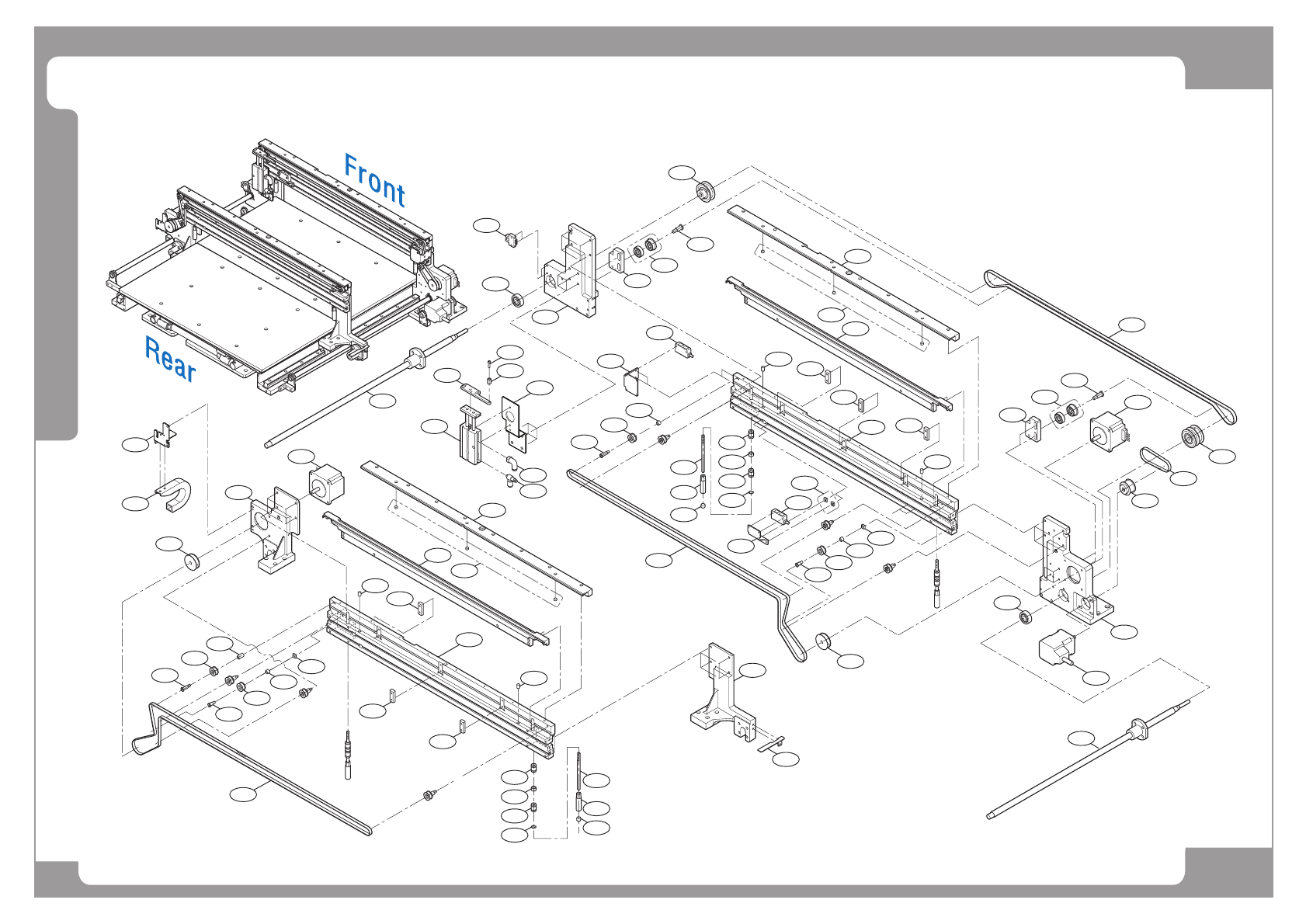

Conveyor Ass'y (5/6)
40
6
5
15
16
5
14
17
32
49
46
21
24
24
22
9
19
9
43
18
23
20
33
39
29
11
27
28
48
4
13
31
8
7
38
35
10
34
1
47
6
5
15
9
19
9
43
20
18
23
17
47
2
16
5
14
17
49
30
45
8
46
35
10
34
26
37
36
1#
24
24
22
41
3
25
41
3
25
21
4
21
21
21
21
44
42
12
40
Page
HANWHA TECHWIN
31
SM411
Conveyor Ass'y (5/6)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J70531022A BRACKET_WORK_SENSOR_2 J70531022A 2
2 J70531023A BRACKET_WORK_SENSOR_1 J70531023A 2
3 J71531045B CLAMP_FRONT_FRAME 2
4 MC13-900226 LEAD_SCREW 4 J66141001B
5 J72531001A IDLER_2 J72531001A 6
6 J70531021A IDLER_SHAFT_M J70531021A
7 EP19-900108 PHOTO SENSOR 4
8 MC03-900023 BALL BEARING 4
9 MC06-900006 BALL_BUSH LMU5 16
10 MC03-900080 BALL BEARING[608ZZ] 4
11 FC18-902728 SOCKET HEAD CAP SCREW M3*12 (NI/ZN) 1
12 HP14-900083 THROTTLE VALVE(ELBOW) 2
13 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 4 HP06-900047
14 MC19-900047 IDLER_ASSY_95 A-4_9.5 4 J7053047A
15 J70531019A IDLER_SPACER_13 J70531019A J7053048A
16 J2101818 IDLER SHAFT-S [0135-641105]
17 J7053184A SQUARE NUT M4 8
18 J7153010B ADJUST SHAFT [J7153010B] 8
19 J7153033A BUSH SPACER 8
20 J7153034A CLAMP SHAFT 8
21 J7153036A SLIDE GUIDE 6
22 J7153373A FIDUCIAL DISK[J7153373A] 12
23 J7253008A STOPPER 8
24 J7253009B STOPPER 2 [J7253009B] 8
25 J70531017B PCB_GUIDE_FC J70531017A 2
26 J71531007A PULLEY_WIDTH_MOTOR J71531007A 2
27 FC09-002821B BRACKET-STOPPER_WORK_FRONT_SMC 2 J70531015A/ FC09-002821A(~#1975) REAR: FC09-002822C
Page
HANWHA TECHWIN
32
SM411
Conveyor Ass'y (5/6)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
28 FC30-001359A PLATE-STOPPER_TOP_SMC-CYL;SS400 2 J70531050A
29 J70531029B STOPPER_POST 2 J70531029A
30 J70531014B SUPPORT_FIX_RAIL_LEFT 2 J70531014A
31 J70531013A SUPPORT_FIX_RAIL_RIGHT J70531013A 2
32 J70531012C SUPPORT_MOVE_RAIL_TL 2 J70531012B
33 J70531011A SUPPORT_MOVE_RAIL_TR J70531011A 2
34 J70531028A TENSION_BEARING_PIN J70531028A 4
35 J70531027A TENSION_BRACKET J70531027A 4
36 MC05-900058 TIMMING_BELT_WIDTH 180-3GT-9 2
37 J71531008A PULLEY_W_MOTOR J71531008A 2
38 J71531024A WIDTH_PULLEY J71531024A 2
39 J70531066A WORK_WIDTH_SENSOR_DOG J70531066A 2
40 MC05-900057 BELT_WORK MAM-5P-1550-6W 4
41 J71531013B WORK_FRONT_FRAME 2
42 EP03-000170 CABLE_VEYOR HSP0130-1B-18R-28LINK 2 EP03-900049
43 FC18-901355 C-RING DIA11(HOLE) 8 FC18-901352
44 FC29-006463A CV_SUPPORT_M_RAIL 2 J70531103A(~#1975)
45 EP08-900126 SERVO_MOTOR_PB PBM423DXC24 1
46 EP08-900073 STEP_MOTOR 2S56Q-01842SR2 1
47 EP19-900099 PHOTO SENSOR[E3S-LS3N] 4
48 HP03-000094 CYLINDER-CXJM10-30-A93;CXJM10-30-A93 2 HP03-900015
49 J71531009A PULLEY_B_M J71531009A 2
