Page
HANWHA TECHWIN
36
SM411

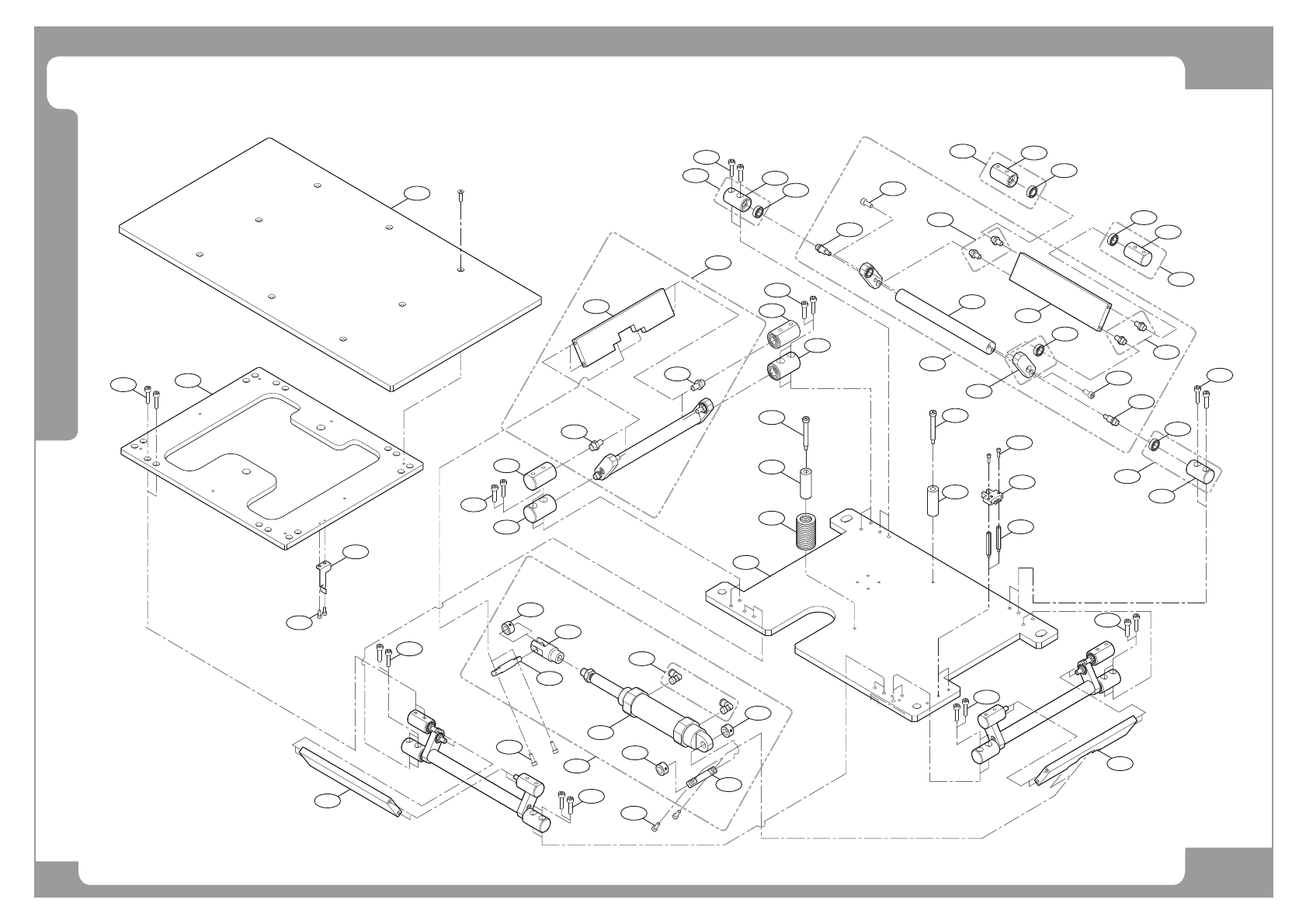

Backup Table Ass’y
8
7
17
10
24
22
26
26
2
22
23
24
22
26
27
30
30
24
29
29
31
22
24
1
3
4
26
5
32
33
26
6
8
6
9
11
31
11
12
29
13
15
14
16
18
18
19
19
28
28
26
19
20
26
26
21
29
12
23
15
25
15
15
25
15
26
Page
HANWHA TECHWIN
37
SM411
Backup Table Ass’y
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A-1 J90531080A SM420_BUT_ASSY J90531080A 2
1 J70531054A BUT_SENSOR_DOG J70531054A 1
2 J70531052C LOWER_PLATE 1 J70531052B
3 J70531051C BACK_UP_PLATE 1 J70531051B
4 J70531053C UPPER_PLATE 1 J70531053B
5 EP19-900108 PHOTO SENSOR 1
6 FC18-901994 ZHOULDER SCREW[MSB6-40] 2
7 FC38-900013 SPRING[SWU26-70] 1
8 FC29-900536 URETHAN CUSHION[AXNSK15-40] 1
9 HP06-900056 ELBOW FITTING KQ2L04-01/SQL04-01S-W 2
10 J90531003A DRIVING_LINK_ASSY 2
11 J7053792A UPPER LINK PIN[J7053792A] 4
12 J7053793A LOWER LINK PIN[J7053793A] 2
13 J7053796A LOWER LINK SHAFT[J7053796A] 1
14 J70530797B LOWER LINK END 1 J7053797A
15 MC03-900022 BALL BEARING 1
16 J90531004A FREE_LINK_ASSY 2
17 J90531005A BUT_CYLINDER_ASSY 1
18 J70530794B CYLINDER JOINT PIN 2
19 J7053795A RING FIXER[J7053795A] 3
20 FC14-900506 CYLINDER JOINT[Y-032B] 1
21 HP03-900013 CYLINDER CM2C32-50-XC3BB 1
22 J90531006A LOWER_BEARING_ASSY 8
23 J7053790A LOWER BEARING HOLDER[J7053790A] 1
24 J90531007A UPPER_BEARING_ASSY 8
25 J7053791A UPPER BEARING HOLDER[J7053791A] 1
26 FC18-902761 SOCKET HEAD CAP SCREW M5*20 (NI/ZN) 32
Page
HANWHA TECHWIN
38
SM411
Backup Table Ass’y
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
27 FC18-902718 SOCKET HEAD CAP SCREW M3*5 (NI/ZN) 2
28 4
29 J7053793A LOWER LINK PIN[J7053793A] 2
30 J71530418B UPPER FREE LINK J71530418B 2
31 J71530419B UPPER DRIVING LINK J71530419B 2
32 FC18-902725 SOCKET HEAD CAP SCREW M3*10 (NI/ZN) 2
33 J61033203A HEX-SUPPORT M3*32 (BOLT NUT) 2
AM03-019094A ASSY,BUT-SPIL_SM411 1 SPIL OPTION
J90531003A DRIVING_LINK_ASSY 2
J7053792A UPPER LINK PIN[J7053792A] 4
J7053793A LOWER LINK PIN[J7053793A] 1
J7053796A LOWER LINK SHAFT[J7053796A] 1
J71530419B UPPER DRIVING LINK J71530419B 1
FC18-902756 SOCKET HEAD CAP SCREW M5*12 (NI/ZN) 2
J90531008A LINK_END_ASSY 2
J70530797B LOWER LINK END 1
MC03-900098 BALL_BEARING 688ZZ 1
J90531004A FREE_LINK_ASSY 2
J7053792A UPPER LINK PIN[J7053792A] 4
J7053793A LOWER LINK PIN[J7053793A] 1
J7053796A LOWER LINK SHAFT[J7053796A] 1
J71530418B UPPER FREE LINK J71530418B 1
