Page HANWHA TECHWIN 40 SM411 Base Frame Ass’y LC1D096BD LC1D096BD Base Frame Ass'y 12 7 6 9 8 3 2 10 4 1 5 13 13 13 13 14 15 11 13 13 13 13
Page
HANWHA TECHWIN
39
SM411
Backup Table Ass’y
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
FC18-902756 SOCKET HEAD CAP SCREW M5*12 (NI/ZN) 2
J90531008A LINK_END_ASSY 2
J70530797B LOWER LINK END 1
MC03-900098 BALL_BEARING 688ZZ 1
J90531005A BUT_CYLINDER_ASSY 2
J70530794B CYLINDER JOINT PIN 2
J7053795A RING FIXER[J7053795A] 3
FC14-900506 CYLINDER JOINT[Y-032B] 1
HP03-900013 CYLINDER CM2C32-50-XC3BB 1
HP06-900056 ELBOW FITTING KQ2L04-01/SQL04-01S-W 2
FC18-902847 SOCKET SET SCREW [M4*4 (BL/ZN)] 6
J90531006A LOWER_BEARING_ASSY 8
J7053790A LOWER BEARING HOLDER[J7053790A] 1
MC03-900022 BALL BEARING 1
J90531007A UPPER_BEARING_ASSY 8
J7053791A UPPER BEARING HOLDER[J7053791A] 1
MC03-900022 BALL BEARING 1
J70531053A UPPER_PLATE J70531053A 1
J70531052A LOWER_PLATE J70531052A 1
J70531176A SUPPORT_SENSOR J70531176A 1
J70531054A BUT_SENSOR_DOG J70531054A 1
Page
HANWHA TECHWIN
40
SM411

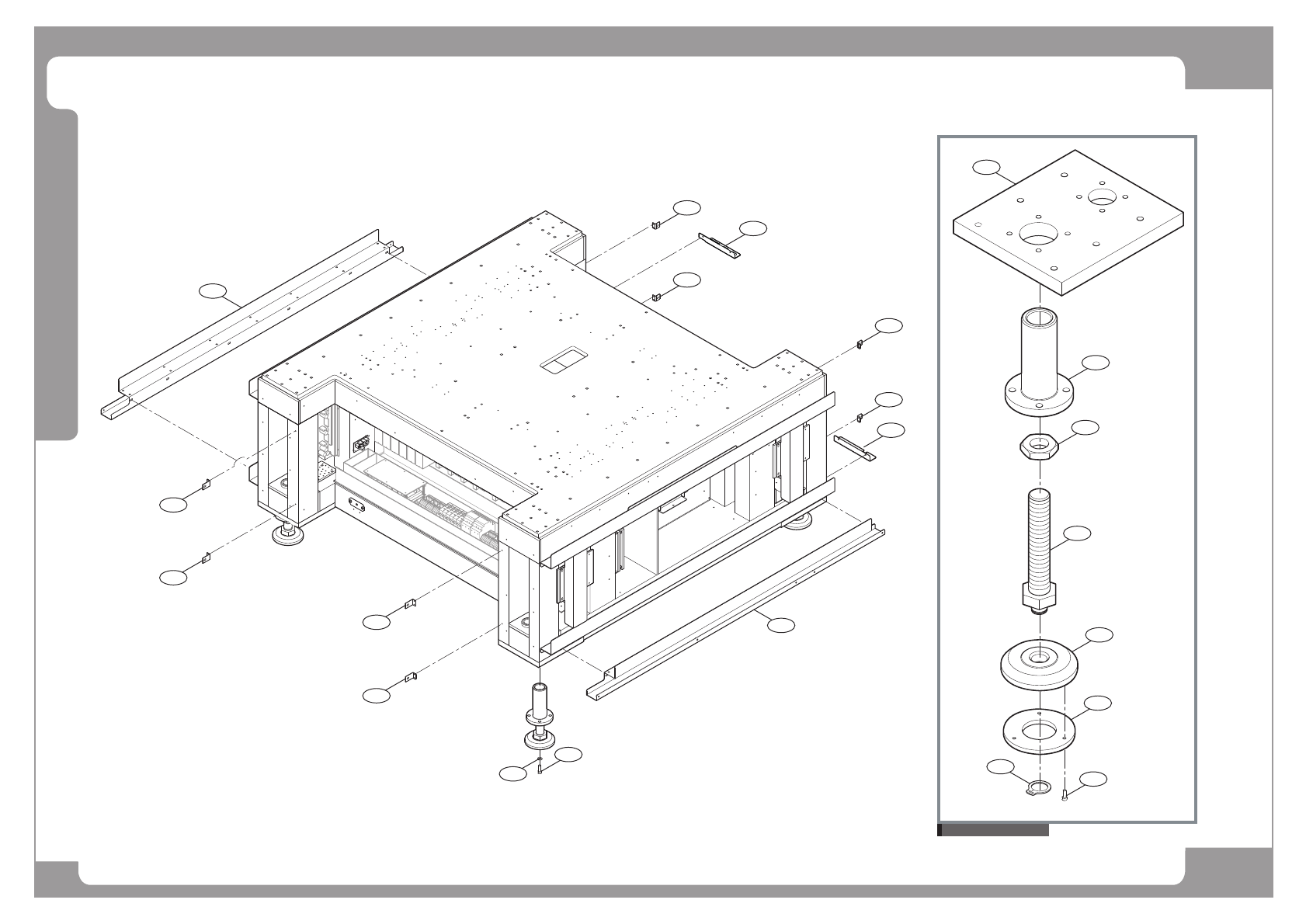

Base Frame Ass’y
LC1D096BD
LC1D096BD
Base Frame Ass'y
12
7
6
9
8
3
2
10
4
1
5
13
13
13
13
14
15
11
13
13
13
13
Page
HANWHA TECHWIN
41
SM411
Base Frame Ass’y
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A AM03-004572A SM411_BASE_FRAME_ASSY-H900 1
J91831008A SM411_BASE_FRAME_ASSY-H950 1 Option
1 J2100018 NUT FOOT [0131-611026] 4
2 J7351001A CUSHION FOOT 4
3 J7051008C BASE-FOOT[J7051008C] 4
4 J70511014A BOLT_FOOT J70511014A 4 J7051009C
5 J7051010D HOUSING-FOOT[J7051010D] 4
6 FC18-901373 C-RING(SHAFT) 4
7 J70521386A LOWER_CABLE_DUCT-R-2 1 J70511027A
8 J70521387A LOWER_CABLE_DUCT-L-2 1 J70511028B
9 FC05-000262A BASE-SPACER_FOOT_2;GCD450-10 4 J70510108B
10
11
12
13
14 FC15-000985A COVER_BOTTOM_RR 1 J70521047B
15 FC15-001391A COVER_BOTTOM_RL 1 J70521048B
