Page HANWHA TECHWIN 44 SM411 Head Ass’y (2/5) A B 24 34 36 32 32 32 38 41 32 14 9 8 9 7 15 15 21 33 52 16 12 23 20 19 55 31 30 51 13 13 26 57 54 18 17 28 25 1 5 4 19 56 58 58 58 58 35 27 56 25 1 19 35 2 2 3 40 39 37 29 5…
Page
HANWHA TECHWIN
43
SM411
Head Ass’y (1/5)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A-1 J90551101A HEAD_VISION_ASSY J90551101A 1
1 J70551039A INNER_COVER_SUPPORT J70551039A 3
2 J71551015A INNER_LIGHT_COVER J71551015A 1
3 AM03-005248A CAMERA_COVER_BOARD_ASSY 1 J90551079A_AS/ J90551079A
4 AM06-000358B ASSY,PCB SMD-SM400_CAMERA_IO BD 1 AM06-000358A
5 AM03-001809A ASSY,OPTICS-FLY_CAM_ONE_KIT_F16 6 J90551080A
6 PT02-000003 CCD,CAMERA-VCC-G20E20BST;ME6:Aluminum 1 PT02-900006
7 J90591012A SM140165_LENS_ASSY J90591012A 1
8 FC09-00490A BRACKET-CAMERA_HOLDER 1 J71551125B
9 J70551044A AIR_BRACKET_1 1
10 J70551045A AIR_BRACKET_2 1
11 FC15-000446B COVER-F_CAMERA_COVER 1
12 J90551081A FLY_CAM_ONE_KIT_ASSY_MEGA-F16 J90551081A 6
13 PT02-900001 CCD CAMERA 1 PT02-900007
14 AM03-005553B CABLE ASSY-FLYING_CAMERA_IF 6 AM03-001506A /AM03-001506B
15 140-M07-S11 TEACHING CAMERA ASSY 1
16 1
17 J71541323A HEAD_BASE_T 1
18 FC18-902725 SOCKET HEAD CAP SCREW M3*10 (NI/ZN) 18
19 1
20 FC18-902719 SOCKET HEAD CAP SCREW M3*6 (NI/ZN) 6
21 FC18-902718 SOCKET HEAD CAP SCREW M3*5 (NI/ZN) 5
FC18-903474 FLAT WASHER
Page
HANWHA TECHWIN
44
SM411

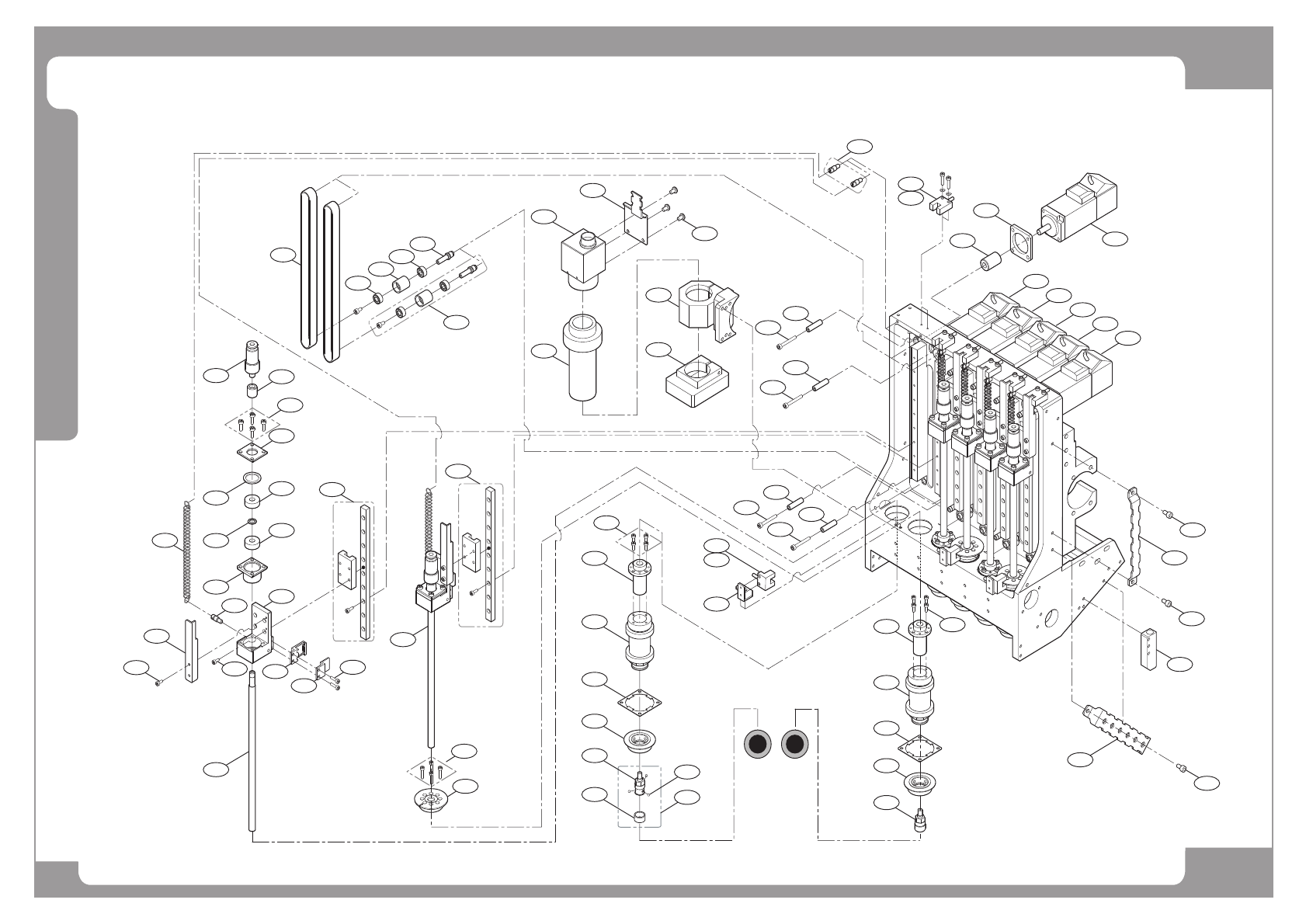

Head Ass’y (2/5)
A B
24
34
36
32
32
32
38
41
32
14
9
8
9
7
15
15
21
33
52
16
12
23
20
19
55
31
30
51
13
13
26
57
54
18
17
28
25
1
5
4
19
56
58
58
58
58
35
27
56
25
1
19
35
2
2
3
40
39
37
29
59
59
59
50
56
6
60
47
43
44
45
46
42
22
11
48
10
49
53
Page
HANWHA TECHWIN
45
SM411
Head Ass’y (2/5)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J90551007A SPLINE_HOUSING_ASSY 6
2 J90550209B COMMON NOZZLE HOLDER ASSY 6
3 J7055140A STEEL BALL [DIA2, SUS304] 3
4 J70550431C NOZZLE HOLDER 1
5 J7255021B SILICON TUBE(BLACK) [J7255021B] J7255076A
6 J9055357A PULLEY ASSY (Z-AXIS 2) 6
7 J7055658A PULLEY PIN[J7055658A] 1 J7055550A
8 J7155565A PULLEY (Z-AXIS 2)[J7155565A] 1 J7155519A
9 MC03-900127 BALL BEARING[MR684ZZ] 2 MC03-900122
10 EP19-900123 MICRO PHOTO SENSOR[PM-U24] 3
11 EP19-900119 MICRO PHOTO SENSOR[PM-L24] 3
12 FC18-903231 WASHER WAVY 0.62OD*0.48ID*0.095HGT[SSR-0 6
13 MC03-900038 BALL BEARING [605ZZ] 12
14 MC05-900079 TIMING_BELT[348-1.5GT-9] 6
15 MC13-900042 LM_GUIDE SRS7MUUCS+140LHM 6 MC13-900022
16 HP06-900053 ROTARY JOINT 6
17 J70551001B BELT_CLAMP1 6 J70551001A
18 J70551002B BELT_CLAMP2 6 J70551002A
19 J90551171A BALL_SPLINE_ASSY 6
20 J7055545B SPLINE ALIGNER[J7055545B] 6
21 J70550548B SPRING 6 J70550548A
22 J7055552A SENSOR BRACKET R-H[J7055552A] 3
23 J7055554A SPACER[J7055554A] 6
24 J7055656A Z-TENSION BRACKET[J7055656A] 6
25 J7055659A BEARING PLATE[J7055659A] 6
26 FC06-000011A BED-SLIDE BODY;ALDC12,BLACK ANODIZING 6 J71550508C
27 FC30-000215A PLATE-SENSOR_DOG-R;ALDC-12 3 J71550513C
