Page HANWHA TECHWIN 48 SM411 Head Ass’y (3/5) A B 9 19 11 8 10 20 7 1 3 2 4 6 12 13 14 5 15 16 18 18 18 19 19 17
Page
HANWHA TECHWIN
47
SM411
Head Ass’y (2/5)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
55 1
56 FC18-902705 SOCKET HEAD CAP SCREW M2*6 (NI/ZN) 12
57 FC29-004278A PIN 1 J7155541A
58 J70551131A Z-STOPPER_BOLT 2
59 FC18-902719 SOCKET HEAD CAP SCREW M3*6 (NI/ZN) 4
60 FC18-902805 BUTTON HEAD SOCKET SCREW M3*5 (NI/ZN) 3
Page
HANWHA TECHWIN
48
SM411

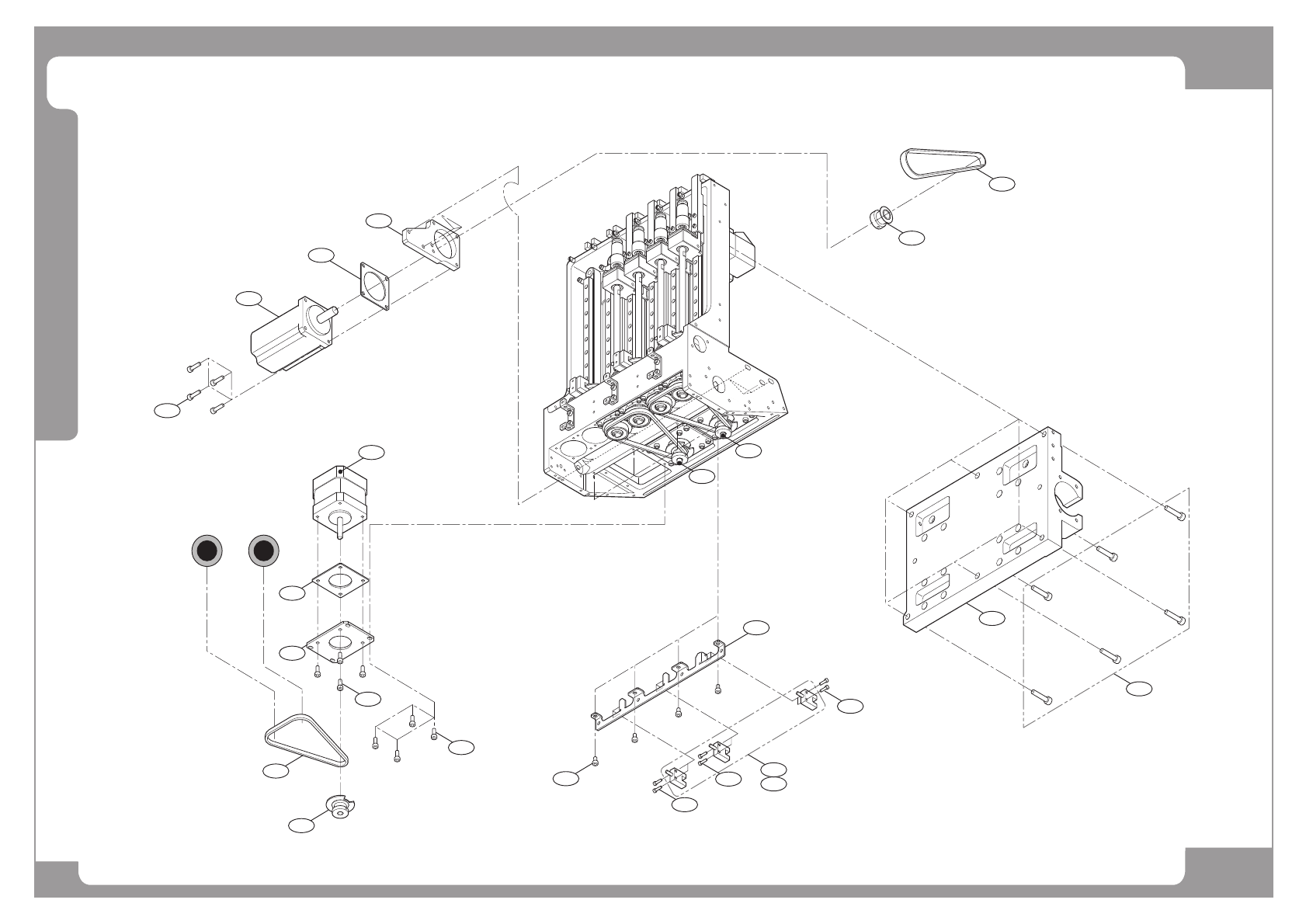

Head Ass’y (3/5)
A
B
9
19
11
8
10
20
7
1
3
2
4
6
12
13
14
5
15
16
18
18
18
19
19
17
Page
HANWHA TECHWIN
49
SM411
Head Ass’y (3/5)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 AM16-000013A ASSY,CABLE-SWING MOTOR CABLE ASS'Y 1 EP08-900133 /J90831181A J90831181A_AS
2 J71551017A MIRROR_MOTOR_BRACKET J71551017A 1
3 J7255081A MIRROR MOTOR ISOLATOR[J7255081A] 1
4 J7155523A PULLEY (S-AXIS 2)[J7155523A] 1
5 EP19-900123 MICRO PHOTO SENSOR[PM-U24] 3
6 MC05-900055 TIMING_BETL 267-3GT-6 1
7 J70551040A SENSOR_BRACKET_R-M J70551040A 1
8 J7055655A THETA MOTOR PLATE[J7055655A] 3
9 J71551025A PULLEY-R_AXIS2 J71551025A 3
10 J7255083A THETA MOTOR ISOLATOR[J7255083A] 3
11 MC05-900075 TIMING_BELT 232-2GT-4 1
12 J90831010B R56_MOTOR_CABLE_ASSY 1 J90831179A J90831010B_AS
13 J90831009B R34_MOTOR_CABLE_ASSY 1 J90831180A J90831009B_AS
14 J90830190B R12_MOTOR_CABLE_ASSY 1
15 J90831034A R_AUX_SENSOR_CABLE_ASSY SM33-HD002 1
16 J71541323A HEAD_BASE_T 1
17 6
18 FC18-902706 SOCKET HEAD CAP SCREW M2*8 (NI/ZN) 6
19 FC18-902719 SOCKET HEAD CAP SCREW M3*6 (NI/ZN) 12
20 FC18-902743 SOCKET HEAD CAP SCREW M4*12 (NI/ZN) 4
FC18-903490 SPRING WASHER [M4]
FC18-90321938 FLAT WASHER [M4]
