SM411_TRM(Ver12.0_CS16.50) - 第89页
Page HANWHA TECHWIN 77 SM411 X-Y Frame Ass’y (4/5) NO. P ART NO. P ART NAME Q'TY Old No. Stoc k Apply Reference 1 FC07-000386A Y_MOTO R_BLOCK 1 J705410 05B /J705410 05C 2 MC04-900028 SUPPOR T UNIT[FK-15] 1 3 FC29-00…
Page
HANWHA TECHWIN
76
SM411
X-Y Frame Ass’y (4/5)
F.R
R.L
9
1
1
11
10
3
4
5
8
7
6
11
2
2
3
5
8
14
7
6
11
10
4
11
12
12
13
13
9
Page
HANWHA TECHWIN
77
SM411
X-Y Frame Ass’y (4/5)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 FC07-000386A Y_MOTOR_BLOCK 1 J70541005B /J70541005C
2 MC04-900028 SUPPORT UNIT[FK-15] 1
3 FC29-004431A STOPPER_Y_BALL_SCREW_FRONT 1 J72541006A
4 MC13-900160 Y-BALL_SCREW SBK2030ZS-3.4GT+956LC5-B 1
5 J72541004A STOPPER_Y_BALL_SCREW J72541004A 1
6 J70541006B BS_REAR_SUPPORT 1 J70541006A
7 J70541030A BRG_HOUSING_Y J70541030A 1
8 MC03-900027 BALL BEARING 1
9 EP08-000139 SERVO MOTOR[MSMA102P1C01] 4 EP08-900123 /EP08-900158
10 FC14-900237 COUPLING[SFC 050DA 12B-19B(TYPE A)] 4
11 12
12 8
13 4
14 1
Page
HANWHA TECHWIN
78
SM411

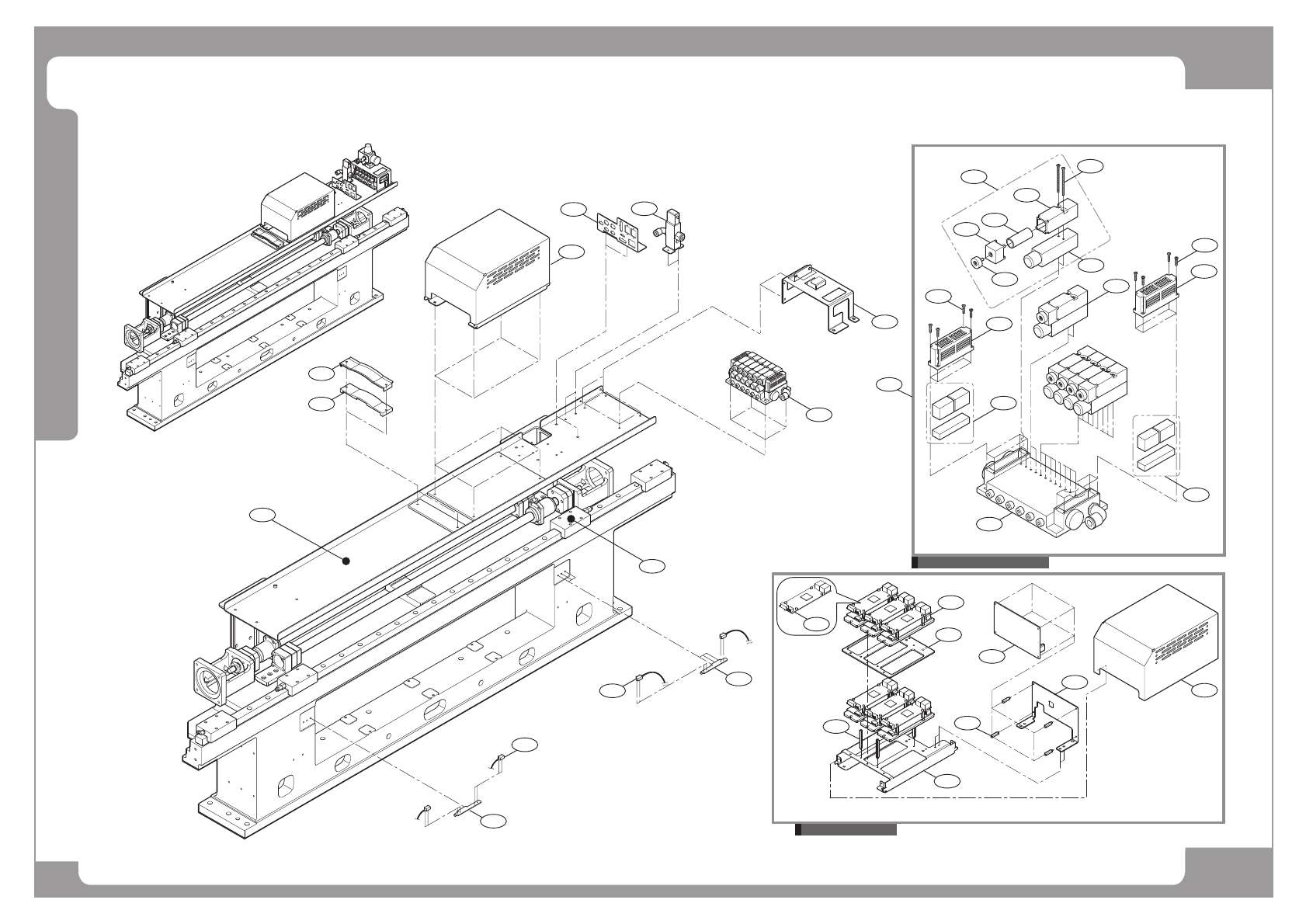

X-Y Frame Ass’y (5/5)
6
1
2
5
9-2
9-3
9
27
9-4
9-5
9-6
3
4
Vacuum Generator Ass'y
Driver BOX Ass'y
7
8
8
26
27
28
28
9-1
14
12
23
13
10
17
19
24
11
7
20
22
16
10
21
15
18
