SM411_TRM(Ver12.0_CS16.50) - 第97页
Page HANWHA TECHWIN 85 SM411 Windows Ass’y NO. P ART NO. P ART NAME Q'TY Old No. Stoc k Apply Reference A-1 J90521018A ACRYL_DOOR_A SSY_STD J9052 1018A 1 A-2 J90521019A ACRYL_DOOR_A SSY_ESD J9052 1019A 1 1 J90521002…
Page
HANWHA TECHWIN
84
SM411
Windows Ass’y
1
5
5
2
3
4
6
1
STOP
RESET
SELECT
FEEDER
CHANGE
START
READY
10
9
8
7
Page
HANWHA TECHWIN
85
SM411
Windows Ass’y
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A-1 J90521018A ACRYL_DOOR_ASSY_STD J90521018A 1
A-2 J90521019A ACRYL_DOOR_ASSY_ESD J90521019A 1
1 J90521002B ACRYL DOOR ASSY 2 J90521015B /J90521002A
2 J72521005B ACRYL COVER 1
AM03-001741A ASSY,COVER-ACRYL_DOOR_ESD_ASSY-2 1 ESD OPTION - FRONT SIDE
AM03-001742A ASSY,COVER-ACRYL_DOOR_ESD_R_ASSY-2 1 ESD OPTION - REAR SIDE
3 J70521087A WINDOW_HINGE J70521087A 3
4 J70521050D ACRYL_COVER_HANDLE 1 J70521050A /J70521050C
5 J70521081B GAS SPRING BRACKET2 2
6 FC29-900147 HANDLE[AP-2 BLACK] 1
7 1
8 1
9 1
10 1
Page
HANWHA TECHWIN
86
SM411

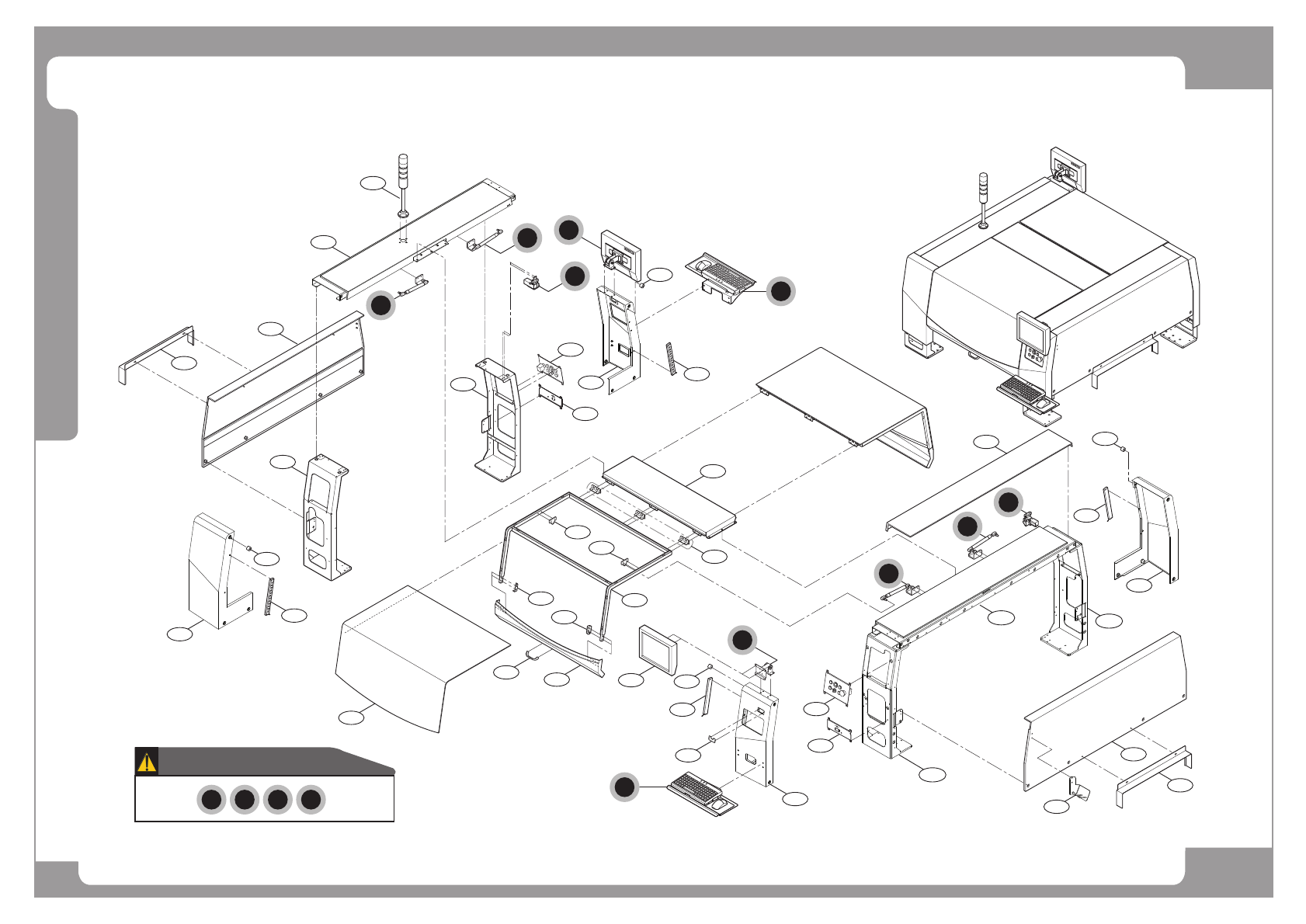

Cover Ass’y (1/3)
Refer to 'Detail View'
A B C D
A
C
D
D
C
XX
X[
X\
\
Z
Y
YZ
Y]
Y[
Y\
XZ
]
[
XZ
X
XZ
XY
X
XZ
[
[
[G
_
Z
^
X\
X[
STOP
RESET
SELECT
FEEDER
CHANGE
START
READY
A
A
B
`
XW
STOP
RESET
SELECT
FEEDER
CHANGE
START
REA
DY
A
B
X]
Y^
X_
X^
X_
YW
YY
X`
YX
YW
YY
X]
