SIPLACE 80S-20/F4/F5 User M anual 2 Introduction and Basic Concepts 05/99 Issue from Software Version SR.405.xx 2.3 Overview of the User Interface and Menu Functions 2 - 23 Fig. 2.3.2 Flowchart Main view - p art 2 To Sec…

100%1 / 763
2 Introduction and Basic Concepts SIPLACE 80S-20/F4/F5 User Manual
2.3 Overview of the User Interface and Menu Functions 05/99 Issue from Software Version SR.405.xx
2 - 22
2.3.1 Flow Chart - Overall View
Fig. 2.3.1 Flowchart Main view - part 1
To
Section 2.4.2
To
Section 2.4.3
To
Flowchart 2.3.2
To
Section 2.4.4
To
Flowchart 2.3.3
MAIN VIEW (see Section 2.4.1)
➩ Processing PCB
➩ Stop processing PCB
➩ Abort processing
➩ Continue processing
➩ Switch to operating
system ...
➩ Shut down computer ...
➩ Placement functions
➩ Single functions
➩ Vision functions
➩ GEM functions
➩ Start SITEST
➩ View machine options
➩ Set operator control level,
operating mode, cluster
➩ Execute service technician
functions
➩ Cycle mode and video image
➩ Load table program
➩
Execute optional functions
SIPLACE 80S-20/F4/F5 User Manual 2 Introduction and Basic Concepts
05/99 Issue from Software Version SR.405.xx 2.3 Overview of the User Interface and Menu Functions
2 - 23

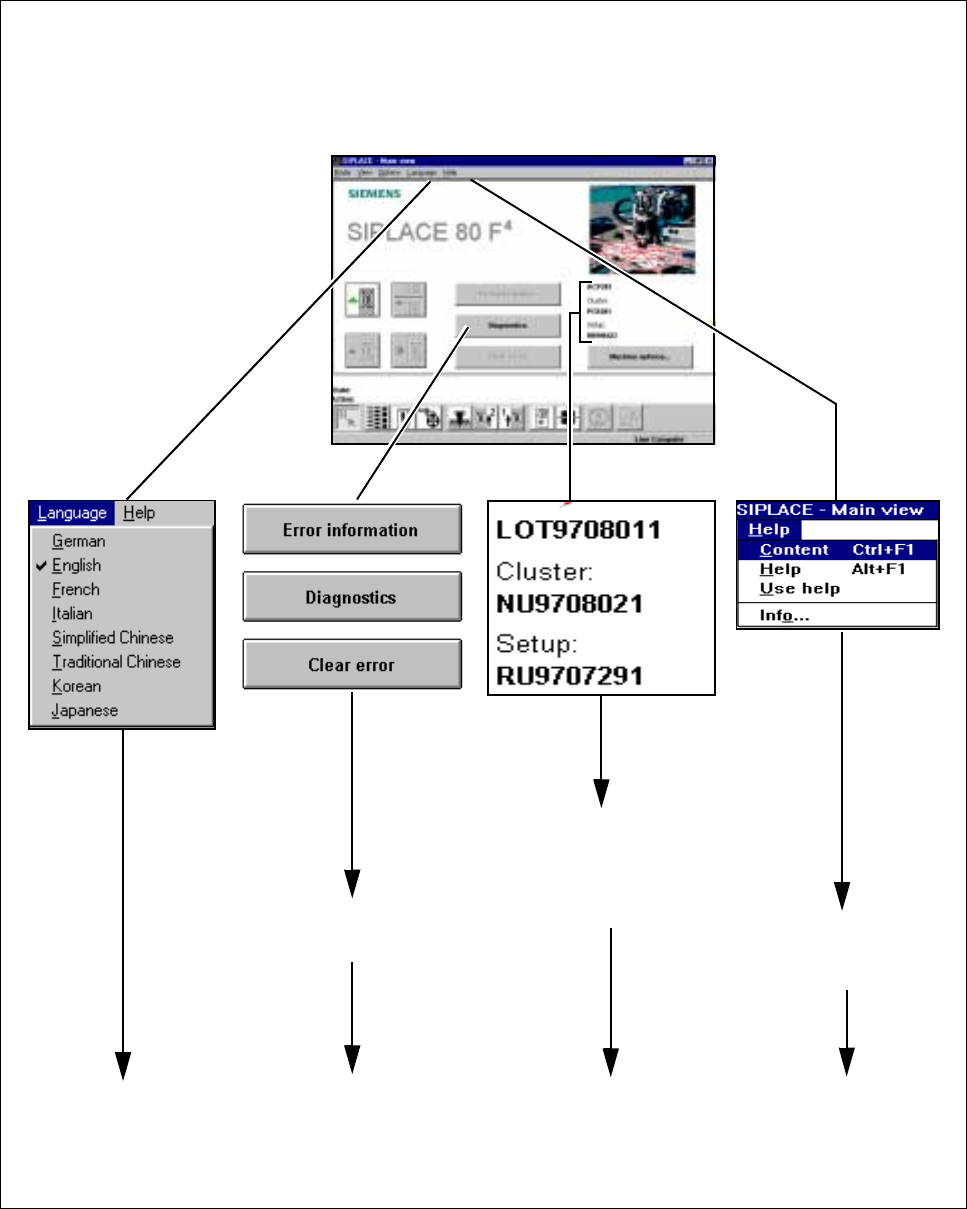

Fig. 2.3.2 Flowchart Main view - part 2
To
Section 2.4.6
To
Section 2.4.7
To
Chapter 8
To
Chapter 7
To
Section 2.4.5
To
Section 2.4.8
MAIN VIEW (see Section 2.4.1)
This displays the current
➩ job name
➩ cluster name
➩ setup name
2 Introduction and Basic Concepts SIPLACE 80S-20/F4/F5 User Manual
2.3 Overview of the User Interface and Menu Functions 05/99 Issue from Software Version SR.405.xx
2 - 24
2.3.2 Flow Chart for the "View" Menu

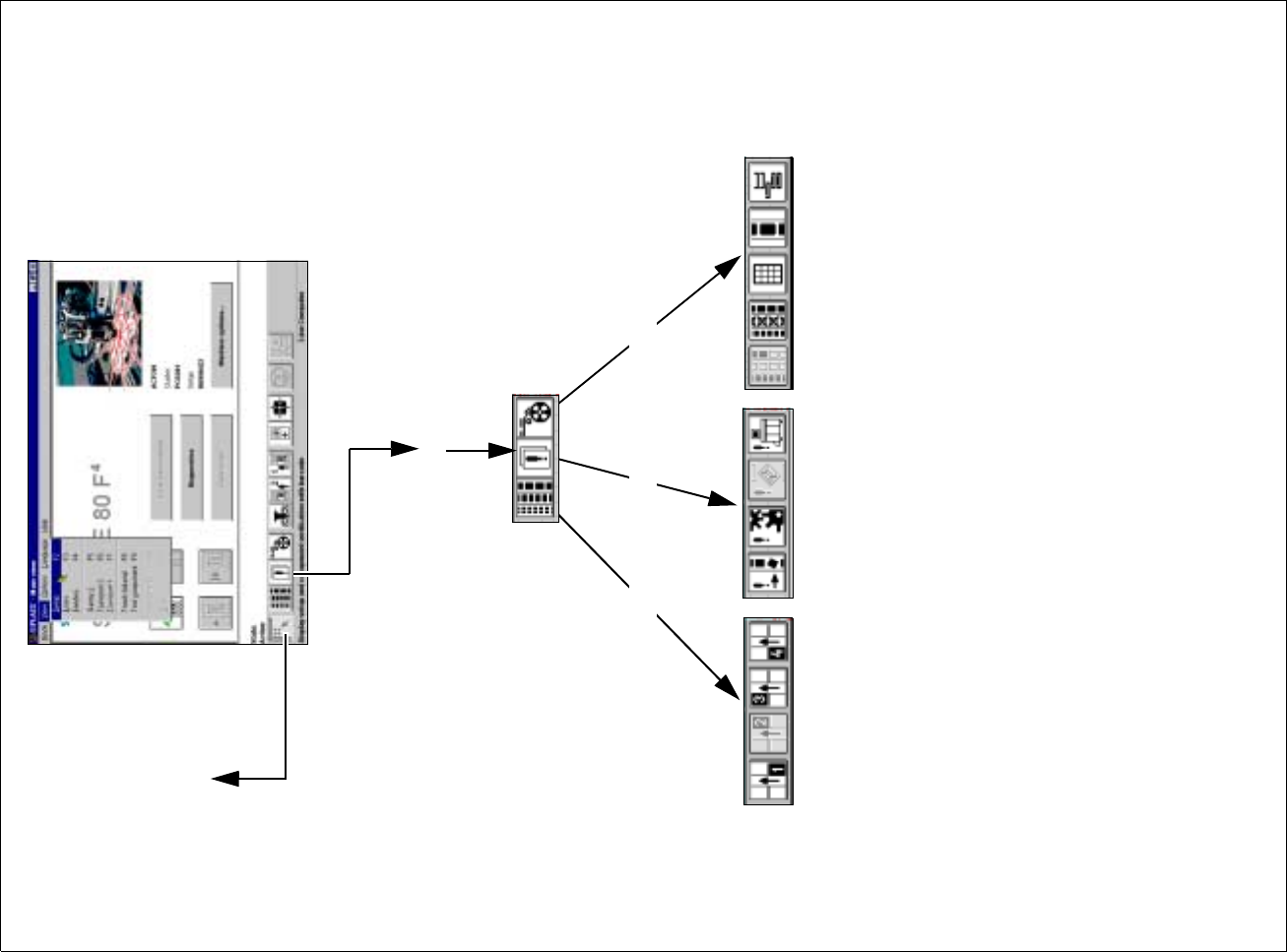

Fig. 2.3.3 Flowchart for the View menu - part 1
Placement functions
Back to the
main view
FeedersErrorsSetup
Functions Wafflepack Changer
Display and vibrate linear feeders
Display trays and inventory levels
Omit components
Display and refill empty tracks
Display all general errors
Display all transport errors
Display all machine errors
Display all track errors
Display setup of location 4
Display setup of location 3
Display setup of location 2
Display setup of location 1
