4 Single Functions SIPLACE 80S-20/F4/F5 Us er Manual 4.2 Single Functi ons, Gantry with 12x Revolver Head 05/99 Is sue from Software Version SR.405.xx 4 - 24 4.2.9 Flux Application Unit/Flux (Option for SIPLACE 80 F 4 ) …

SIPLACE 80S-20/F4/F5 User Manual 4 Single Functions

05/99 Issue from Software Version SR.405.xx 4.2 Single Functions, Gantry with 12x Revolver Head

4 - 23

4.2.8.1 Confirm Change

Set up the nozzles which have to be changed (in the

To change

column marked with an arrow (<==) in the

individual nozzle garages to the

Programmed

state.

Mark the line in question (it is displayed against a blue background) and within the working area click on

the

Confirm

button.

Programmed

and

Actual

must now be the same.

NOTE

Up to 20 nozzles can be defined.

Each nozzle garage must be confirmed individually.

See also Section 11.2.

4 Single Functions SIPLACE 80S-20/F4/F5 User Manual

4.2 Single Functions, Gantry with 12x Revolver Head 05/99 Issue from Software Version SR.405.xx

4 - 24

4.2.9 Flux Application Unit/Flux (Option for SIPLACE 80F

)

The

Go to refill position, Rinse fluxer head

and

Init. fluxer head

buttons

are only active if the flux applica-

tion unit option has been installed. A description of the functions is given in Chapter 11.7 of this User Manual.

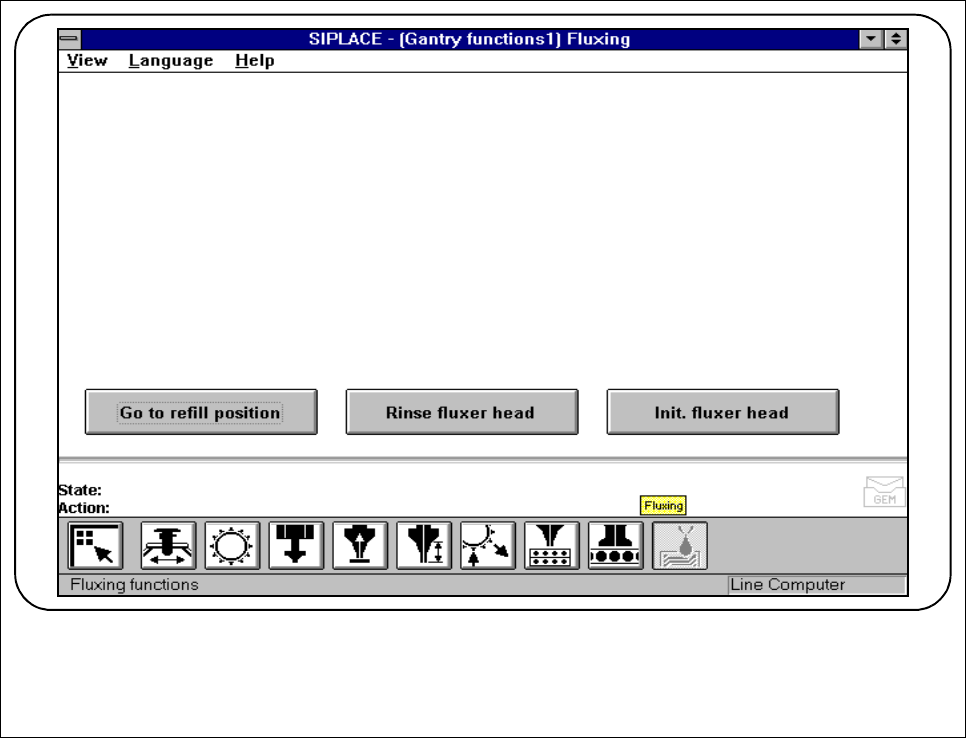

Fig. 4.2.11 Flux application unit/flux for SIPLACE 80F

(option)

SIPLACE 80S-20/F4/F5 User Manual 4 Single Functions

05/99 Issue from Software Version SR.405.xx 4.3 Single Functions, Gantry with 6x Revolver Head (for 80F5)

4 - 25

4.3 Single Functions, Gantry with 6x Revolver Head

(for 80F

)

NOTE

With travel functions of the x or y axis the machine cover must be closed and to execute the function the start

button must be pressed. The gantries will in every case travel only at slow speed.

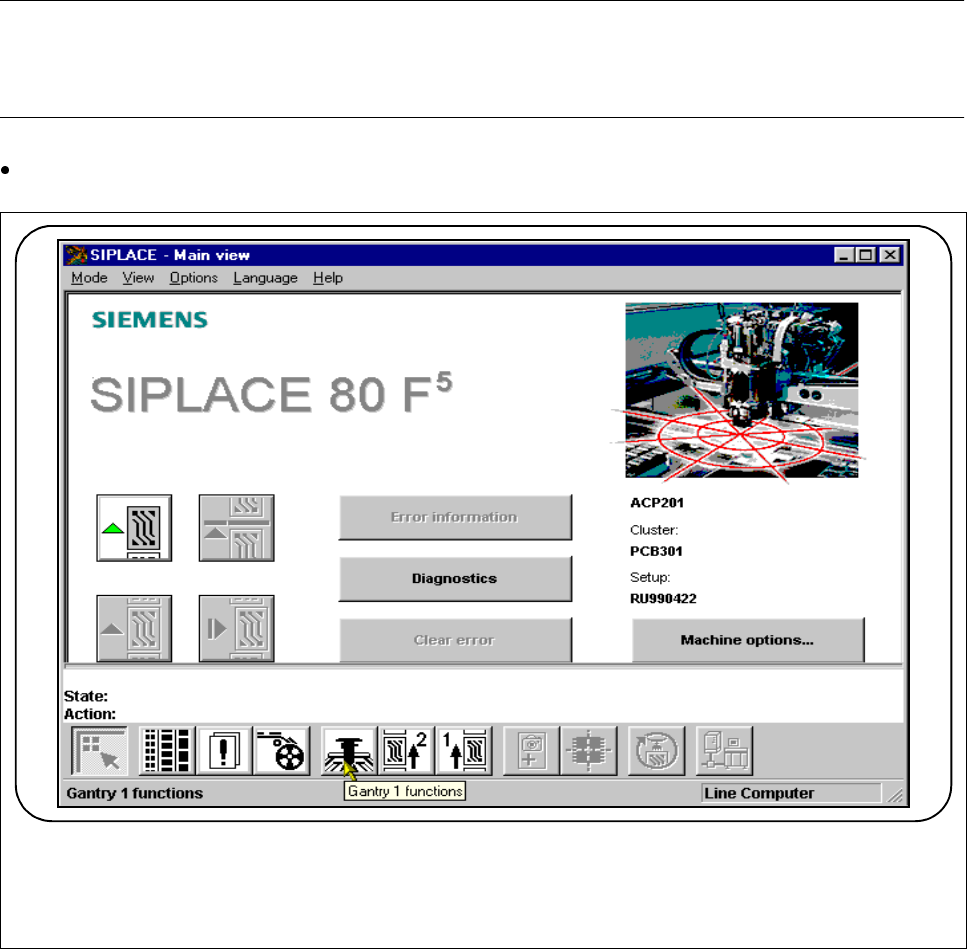

In main view click on the symbol button for

Gantry functions.

Fig. 4.3.1 Gantry functions
