SIPLACE 80S-20/F4/F5 User M anual 5 Vision Func tions 05/99 Issue from Software Version SR.405.xx 5.4 Access to the Teach Fiducial and Test Component Options Line en gineer 5 - 35 Fig. 5.4.3 T est component option: menus…

5 Vision Functions SIPLACE 80S-20/F4/F5 User Manual

5.4 Access to the Teach Fiducial and Test Component Options 05/99 Issue from Software Version SR.405.xx

5 - 34 Line engineer

Move the mouse pointer over the

Teach fiducial

Test component

option. The status line will display a

brief explanatory text for the option in question. You can also use the F8 or F9 function keys to access the

options. The

View

drop-down menu will list the allocations of the function keys and the individual options.

Click on either of the two icons (buttons). The screen will then display either the

Select fiducial

menu or

the

Select package form

menu depending on whether you have selected the

Teach fiducial

option or the

Test component

option (5 - 34 and Fig. 5.4.3, Page 5 - 35).

Again, depending on your choice, you can access further menus for the

Teach fiducial

option or the

Test

component

option.

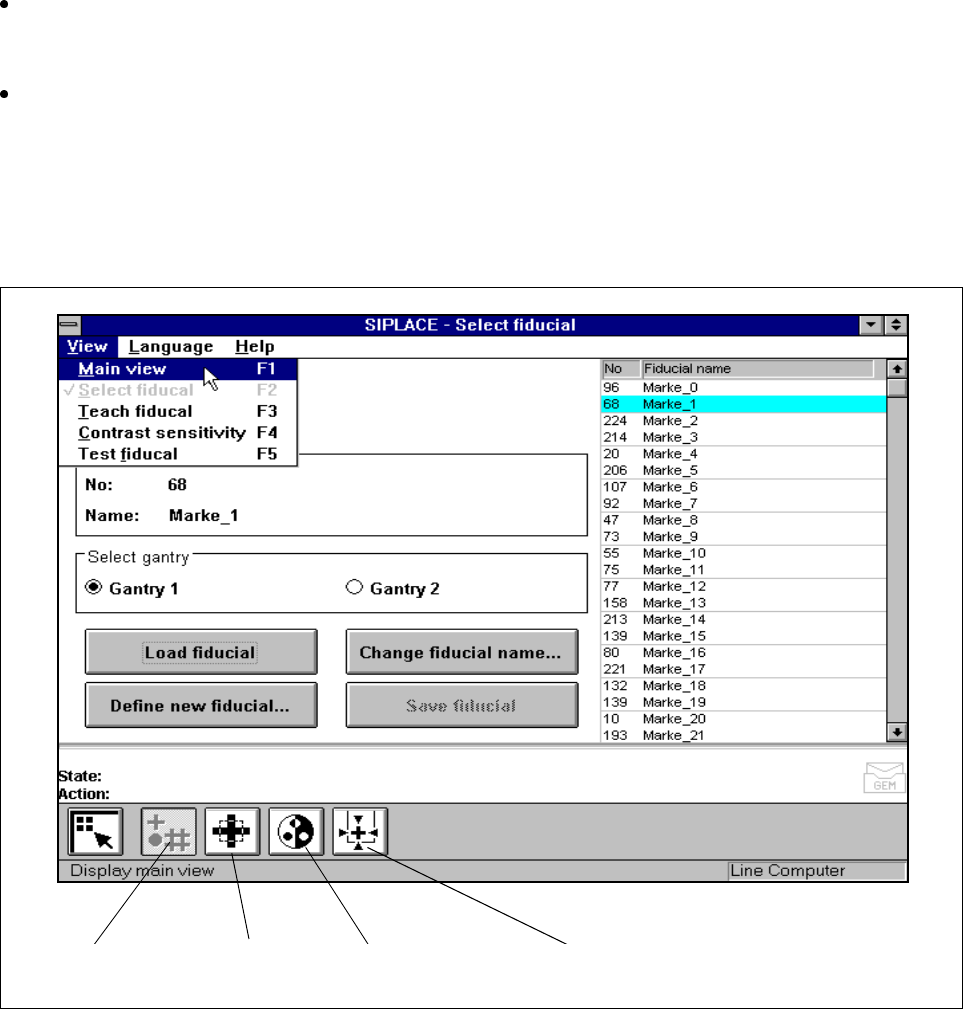

Fig. 5.4.2

Teach fiducial

option: menus

You can select the following menus from the

Teach fiducial

option either by clicking on the icons in the

symbols bar or by using function keys F2 to F5:

– Select fiducial

– Teach fiducial

– Contrast sensitivity, and

– Test fiducial.

You can return to the Main view menu either by clicking on the Main view icon or by pressing function key F1.

Contrast sensitivity

icon

Teach fiducial

icon

Test fiducial

icon

Select fiducial

icon

SIPLACE 80S-20/F4/F5 User Manual 5 Vision Functions

05/99 Issue from Software Version SR.405.xx 5.4 Access to the Teach Fiducial and Test Component Options

Line engineer 5 - 35

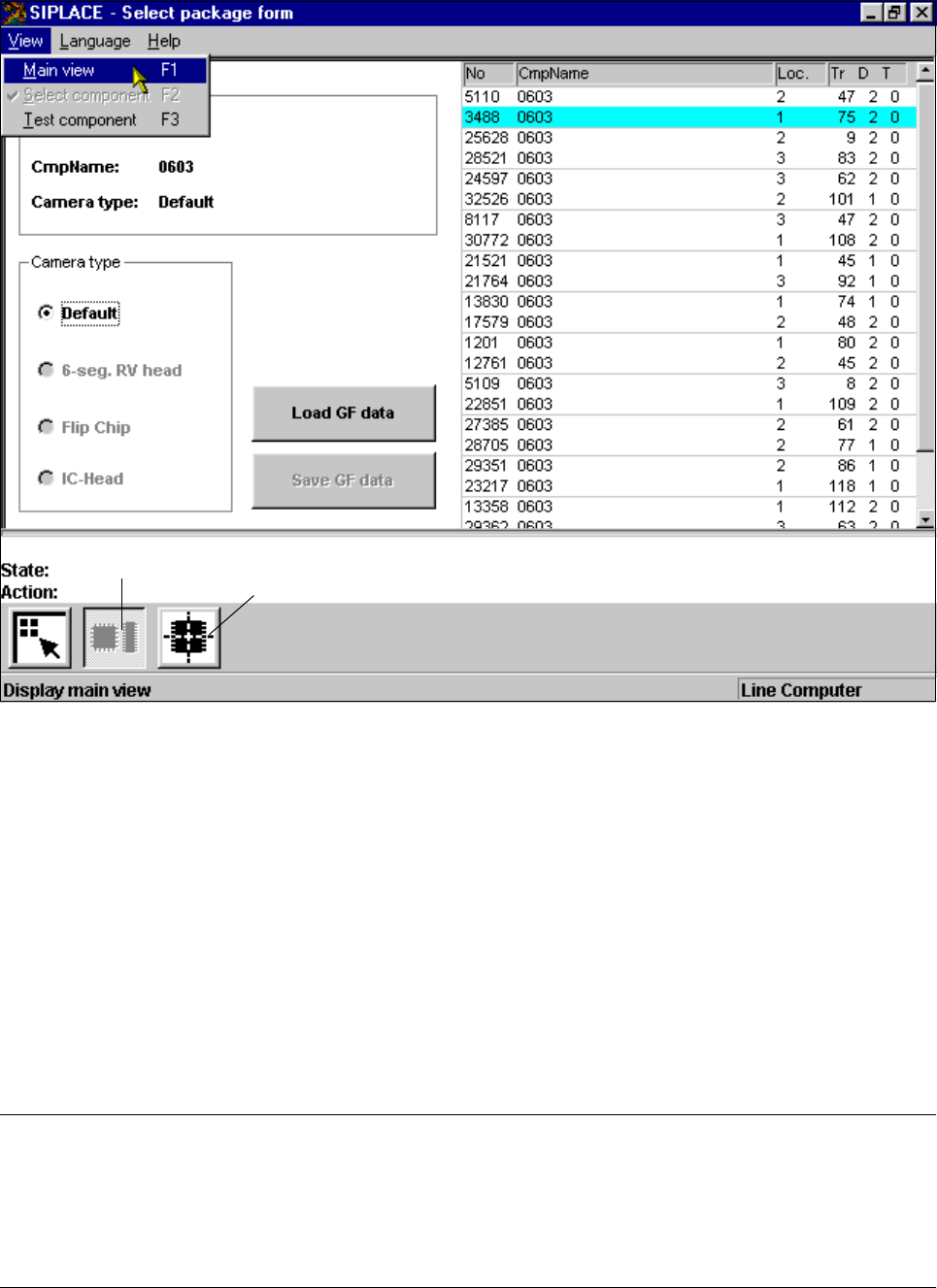

Fig. 5.4.3

Test component

option: menus

You can select the following menus from the

Test component

option either by clicking on the icons (buttons)

or by pressing function keys F2 to F3:

– Select package form

– Test component

You can return to the

Main view

menu either by clicking on the

Main view

icon or by pressing function key F1.

The options

Teach fiducial

and

Test component

are described in Section 5.5 from Page 5 - 37 and Section

5.6 from Page 5 - 71.

To provide you with some orientation, at the start of each section you will find a flow chart and a brief descrip-

tion for the

Teach fiducial

and

Test component

options. Each flow chart begins with

Main view

menu and

shows you the hierarchical structure of all of the menu options.

NOTE

Section 2.2 ’Principles and Structure of the User Interface’ includes a general description of

• using the menus with trackball, touch screen and function keys F1 to F12,

• the layout of the screen, and

• the screen displays.

Icon ’Select package form’

Icon ’Text component’

5 Vision Functions SIPLACE 80S-20/F4/F5 User Manual

5.4 Access to the Teach Fiducial and Test Component Options 05/99 Issue from Software Version SR.405.xx

5 - 36 Line engineer
