5 Vision Functions SIP LACE 80S-20/F4/F5 Us er Manual 5.5 Teach Fiducial 05/99 Issue from Software Version SR.405.xx 5 - 44 Line en gineer 5.5.3 Select Fiducial Menu When the T each fiduci al option i n the Main view men…
SIPLACE 80S-20/F4/F5 User Manual 5 Vision Functions
05/99 Issue from Software Version SR.405.xx 5.5 Teach Fiducial
Line engineer 5 - 43

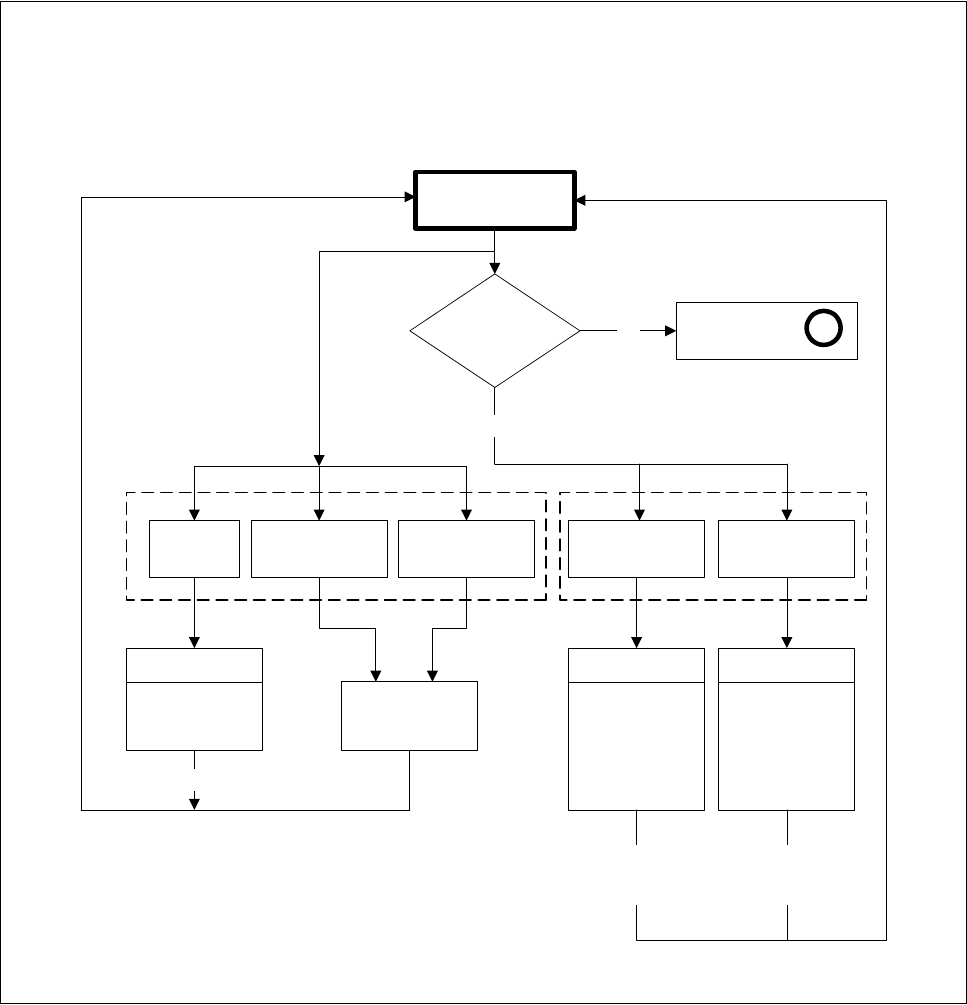

Fig. 5.5.5 Flowchart ’Teach fiducial’ - ’Test fiducial’ menu
No
Positioning
Test fiducial
Fiducial
loaded or
taught?
’Select fiducial’
menu
A
Yes
Video image
Triggering
measurement
sequence
fiducial quality
output
ESC
ESC
Return
(repeat)
Move
x/y axes
PCB to
output conveyor
PCB to
processing
conveyor
Center Test
Fiducial
Video image
Define template
window
(hor./vert.)
ESC
Return
(save)
Video image
Position
camera
PCB
transport 1/2
’Teach fiducial’ menu options
’Test fiducial’ menu
5 Vision Functions SIPLACE 80S-20/F4/F5 User Manual
5.5 Teach Fiducial 05/99 Issue from Software Version SR.405.xx
5 - 44 Line engineer
5.5.3
Select
Fiducial
Menu
When the
Teach fiducial
option in the
Main view
menu is selected the following actions will be started:
The functions for the vision system are activated in the station computer
The
Select fiducial
menu will drop down.
The station computer asks the line computer for the list of fiducial numbers with commentaries and dis-
plays them on the screen. The transformation tables for the screen colors are held locally in the station
computer.
Fig. 5.5.6
Select fiducial
menu
As the diagram shows, the menu offers the following options for selection.
– Select gantry
– Load fiducial
– Define new fiducial
– Change fiducial name
– Save fiducial
Fiducial numbers list
SIPLACE 80S-20/F4/F5 User Manual 5 Vision Functions
05/99 Issue from Software Version SR.405.xx 5.5 Teach Fiducial
Line engineer 5 - 45
NOTE
Buttons are active when the text on the button is black (rather than gray). This means that you can launch the
associated function by clicking on the button with the mouse.
The
Load fiducial
button
will, for example, only be active if you have previously clicked on a fiducial in the
lists field.
The
Change fiducial name
button will only be active if you have loaded a fiducial and the
Save fiducial
but-
ton will only be active if you have either changed the fiducial name or fiducial parameters.
You can switch from the ’Teach fiducial’ menu to the Main menu at any time in order to start actions such as
"Fill track“ etc. The settings in the ’Teach fiducial’ menu will be retained, which means that the same condi-
tions will be set up when you return to the ’Teach fiducial’ menu.
However, if you have changed fiducial data or taught a new fiducial, and then switch from the Main menu to
the ’Test component’, ’Single functions’, ’SITEST’ or ’Continue placement’ menu, the ’Save fiducial data’
selection box will appear when you leave the ’Teach fiducial’ option. You can then either save the modified or
new data or delete it.

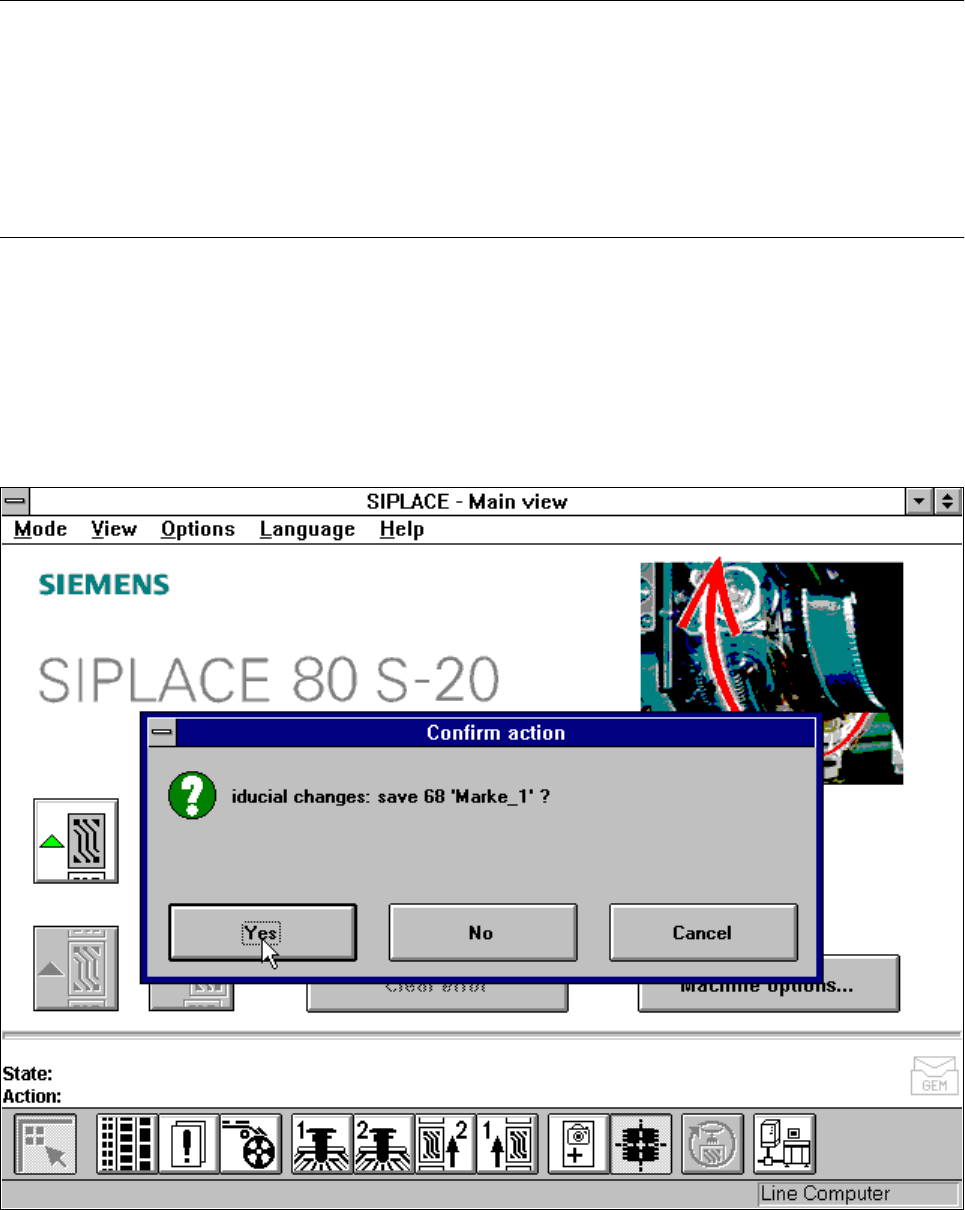

Fig. 5.5.7
Select fiducial
menu,
Save fiducial data
option box
