SIPLACE 80S-20/F4/F5 User Manual 5 Vision Functions
05/99 Issue from Software Version SR.405.xx 5.6 Test Component
Line engineer 5 - 71
5.6 Test Component
5.6.1
Test Component
Flow Chart
The
Test component
flow chart shows in graphic form all menu options together with their sub-functions. The
menus are indicated by being bordered with an unbroken line, while the option boxes use a dash-dotted line
and the input boxes a center line.
5.6.2 Information on the
Test Component
Flow Chart
5.6.2.1 Menus
The
Test component
option includes the following menus:
– Select package form
– Test component
The
Save component
name
option box will drop down every time you wish to quit the
Test component
menu having previously generated or modified GF data. This gives you the choice of either saving or discard-
ing the GF data in question.
You can quit the individual menus by clicking on either the icons of another menu or on the
Main view
icon.
5.6.2.2 Input Boxes, Option Boxes
For data input, displaying values and initiating actions the system offers the following input boxes:
– Measure mode
– Adjust contrast sensitivity
– Select component type (80F
4
or 80F
5
machines only)
You can quit the input boxes by clicking on
OK
,
Accept
or
Cancel
.
– Click on
OK
or
Accept
to have the program save the data. The box will then close.
– Click on the Cancel button to discard the data, after which the input box will close.
5 Vision Functions SIPLACE 80S-20/F4/F5 User Manual
5.6 Test Component 05/99 Issue from Software Version SR.405.xx
5 - 72 Line engineer
5.6.2.3 Buttons
The system provides the following buttons for selecting options:
– Load GF data
Once you have selected the component you want from the lists field, click onto the
Load GF data
button.
The package form parameters will be loaded.
– Save GF data
The generated package form parameters will be saved when you click on this button.
– Pick up
The placement head picks up the selected component.
5.6.2.4 Video Images
With certain actions the camera image of the MVS systems (vision evaluation unit) are displayed on the
screen of the station computer. The screen will also contain a header and footers:
– The header may contain, for example, the currently selected menu option, the package form number, eval-
uation criteria, measurement results, and so on.
– The footers will contain command sequences, keyboard commands, camera coordinates and so on.
You can always quit video image screens by pressing the
Esc
key. The current menu window will then reap-
pear.
5.6.2.5 Messages
Messages are text fields which contain information regarding actions, warnings and so on. They will appear
under the following circumstances:
– incorrect operator actions.
– requests to the operator to carry out certain actions (for example, input package form number).
– information (for example, board is being disposed of).
– to indicate the system is busy performing an action (for example, package form data being saved).
SIPLACE 80S-20/F4/F5 User Manual 5 Vision Functions
05/99 Issue from Software Version SR.405.xx 5.6 Test Component
Line engineer 5 - 73

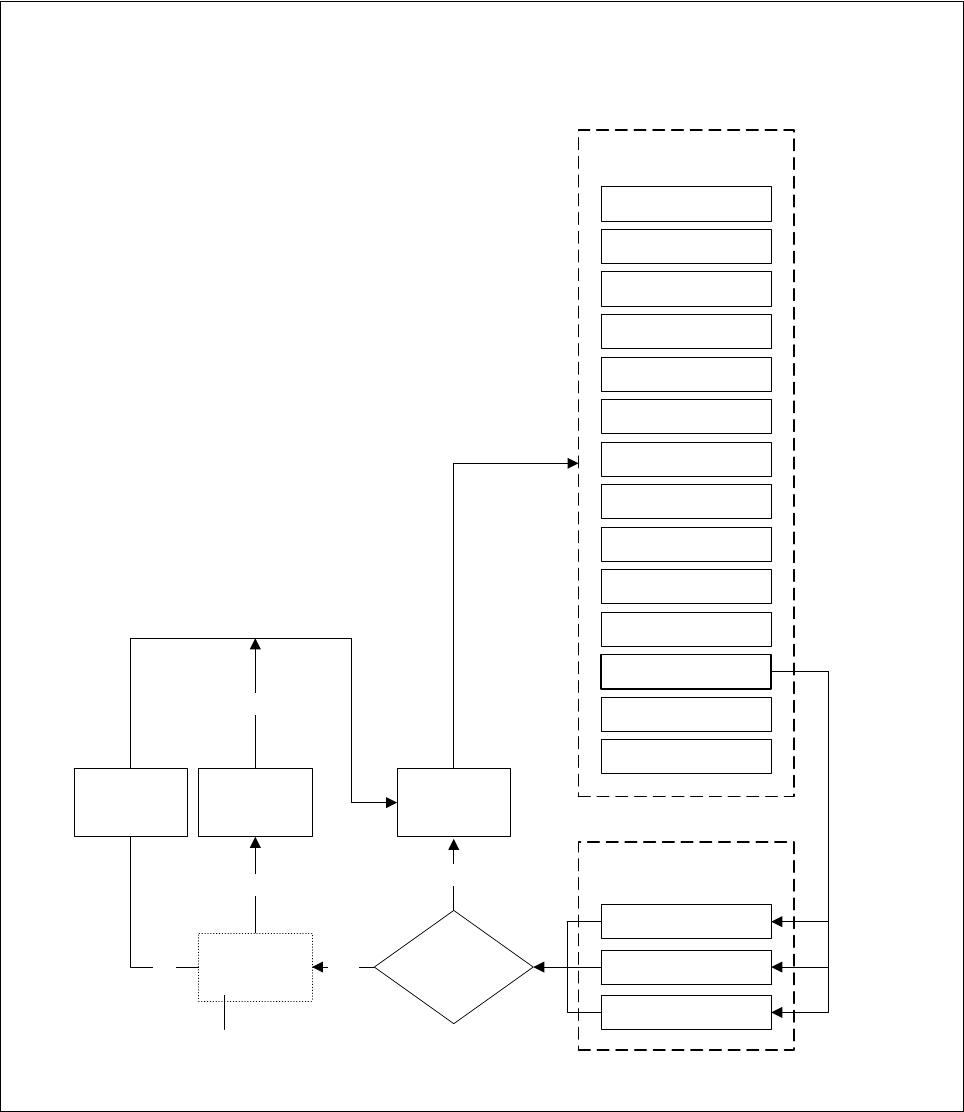

Fig. 5.6.1 Flowchart ’Test component’ - ’Test component’ menu options
’Test component’ menu options
Main view
Main view menu
Setup
Error
Feeders
Gantry 3 functions
Gantry 4 functions
PCB transport 2
PCB transport 1
Teach fiducial
Test component
SITEST
GEM
Main view
Markenauswahl
Test component
Save
GF data
Test component
menu option
Select package form
Package form
edited?
No
Gantry 1 functions
Gantry 2 functions
Yes
Discard
component
Package
form is saved
Yes
No
Package
form is
restored
Yes
’Save edited GF data’
option box
