SIPLACE 80S-20/F4/F5 User M anual 5 Vision Func tions 05/99 Issue from Software Vers ion SR.405.xx 5.6 Test Comp onent Line en gineer 5 - 85 5.6.3. 3 Save GF data Opt ion With thi s option you c an save pack age forms to…

5 Vision Functions SIPLACE 80S-20/F4/F5 User Manual

5.6 Test Component 05/99 Issue from Software Version SR.405.xx

5 - 84 Line engineer

5.6.3.2

Load GF data

Option

NOTE

When you call the

Load GF data

option, first of all the

Save GF data

box will drop down, provided that you

have already processed a package form (see Fig. 5.6.10, Page 5 - 82).

Fig. 5.6.12

Select package form

menu,

Load GF data

package

If you wish to save your data, the package form file will be transmitted to the line computer. Following this

inquiry the component which has just been processed will be rejected and the package form number list

updated.

– From the list field use the mouse pointer to select a particular package form. The selected package form

will appear against a cyan-colored bar.

– Click on the Load GF data button. In the Package form display field the package form and the package

form will be displayed.

The station computer will request from the line computer the package form data of the selected package form.

The interpreter edits the data and generates the teaching command. With this command the edited package

form data are loaded into the MVS system (vision evaluation unit).

SIPLACE 80S-20/F4/F5 User Manual 5 Vision Functions

05/99 Issue from Software Version SR.405.xx 5.6 Test Component

Line engineer 5 - 85

5.6.3.3

Save GF data

Option

With this option you can save package forms together with their changed parameters. The button will only be

active after you have modified the package form data.

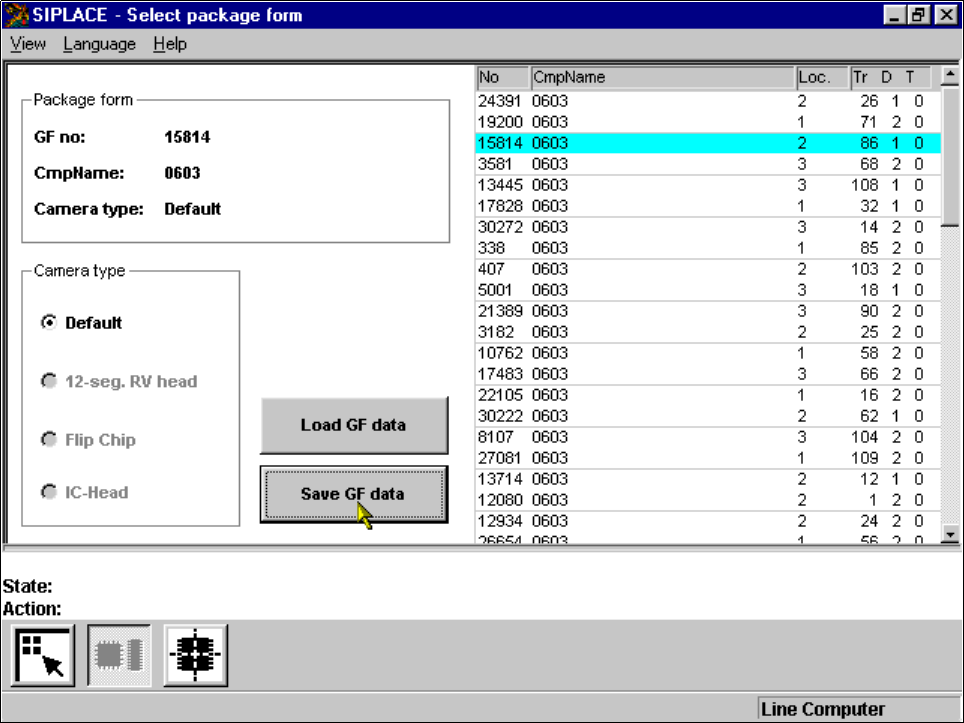

Fig. 5.6.13

Select package form

menu,

Save GF data

option

5.6.4

Test Component

If you click on the

Test component

icon the corresponding menu will drop down. As the diagram shows, the

following options, organized by group, are available to you:

Component Edit GF data

– Pick up – Illumination

– Display – Package dimension

– Test – Pin dimension

– Measure – Ball illustration

– Store image – Tab le

– Evaluat. time – Select component type (80 F

machine only, see Section 5.10 from Page 5 - 163)

– Measure mode

5 Vision Functions SIPLACE 80S-20/F4/F5 User Manual

5.6 Test Component 05/99 Issue from Software Version SR.405.xx

5 - 86 Line engineer

NOTE

Buttons are active when the text on the button is black (rather than gray). This means that you can launch the

associated function by clicking on the button with the mouse.

If you have not yet loaded a package form all options will be inactive.

From the

Select package form

menu load a package form (see Section 5.6.3 from Page 5 - 81). The

loaded package form will be displayed in the

Package form

display field with package form number, pack-

age form name and camera type. All options are accessible with the exception of

Test, Measure,

Store


and

Evaluat. time

. The

Component type

option is reserved for the 80F

or 80F

machine and only

available there.

Fig. 5.6.14

Test component

menu, options
