5 Vision Functions SIP LACE 80S-20/F4/F5 Us er Manual 5.6 Test Component 05/99 Issue from Software V ersion SR.405.xx 5 - 90 Line en gineer 5.6.4 .3 T est Component Option NOTE This opti on can on ly be ac tivated i f yo…
SIPLACE 80S-20/F4/F5 User Manual 5 Vision Functions
05/99 Issue from Software Version SR.405.xx 5.6 Test Component
Line engineer 5 - 89

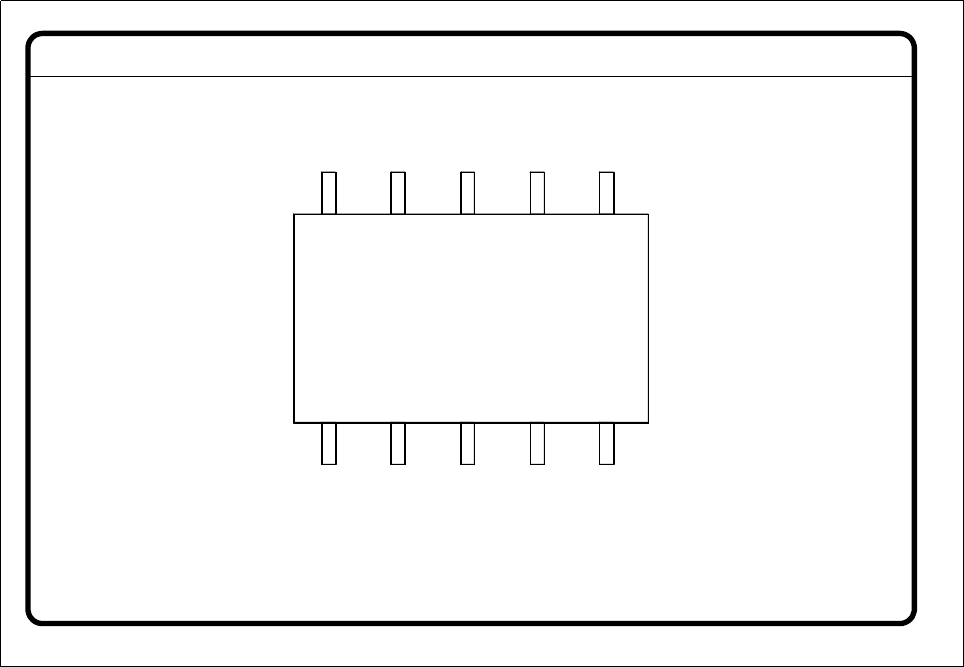

Fig. 5.6.17
Test component
menu,
Display component
video image
– Use
Esc
to end the function. The video image disappears and the
Test component
menu is displayed
once more.
GF No. = 5Display component
5 Vision Functions SIPLACE 80S-20/F4/F5 User Manual
5.6 Test Component 05/99 Issue from Software Version SR.405.xx
5 - 90 Line engineer
5.6.4.3
Test Component
Option
NOTE
This option can only be activated if you have already loaded a package form number and a component has
been picked up.
With this option you can check the centering procedure. Every time measuring step has been carried out, the
procedure is stopped for you to check the function individually. The measurement results are displayed on the
screen but not saved.
Fig. 5.6.18
Test component
menu,
Test component
option
When this option is activated the following actions are started:
– The measurement procedure is activated.
– The video image appears on the screen.
– The header and footers are displayed.
SIPLACE 80S-20/F4/F5 User Manual 5 Vision Functions
05/99 Issue from Software Version SR.405.xx 5.6 Test Component
Line engineer 5 - 91
Fig. 5.6.19
Test component
menu,
Test component
video image
With the
Return
key you can call all defined individual steps in the measurement procedure one after the
other. Each time you press the
Return
key another measurement step is carried out and the results shown
on the screen.
Use
Esc
to quit the option. The video image closes and the
Test component
menu reappears.
GF No. = 5Test component
RET: Test component
