5 Vision Functions SIP LACE 80S-20/F4/F5 Us er Manual 5.6 Test Component 05/99 Issue from Software V ersion SR.405.xx 5 - 112 Line en gineer Setting the contra st sensitivity to int ensify low-contrast fiduci als Selec t…
SIPLACE 80S-20/F4/F5 User Manual 5 Vision Functions
05/99 Issue from Software Version SR.405.xx 5.6 Test Component
Line engineer 5 - 111

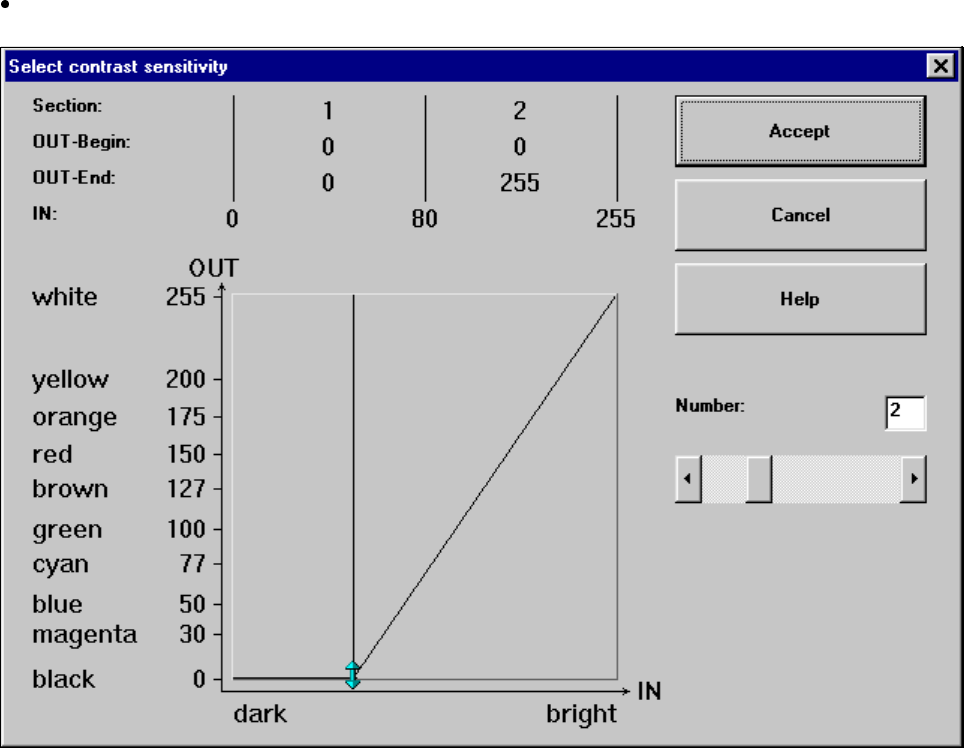

Setting the contrast sensitivity to suppress defective structures
Select the following settings for lighter PCBs or fiducials in order to suppress defective structures.
Fig. 5.6.31 Setting the contrast sensitivity to suppress defective structures
5 Vision Functions SIPLACE 80S-20/F4/F5 User Manual
5.6 Test Component 05/99 Issue from Software Version SR.405.xx
5 - 112 Line engineer

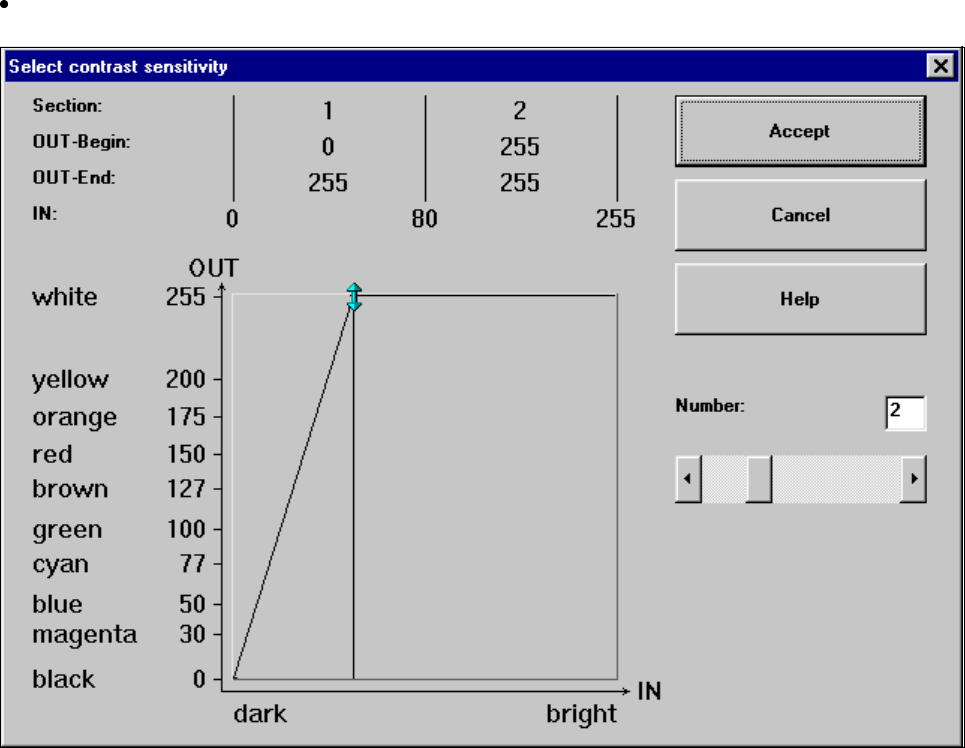

Setting the contrast sensitivity to intensify low-contrast fiducials
Select the following settings for low-contrast fiducials in order to intensify the contrast:
Fig. 5.6.32 Setting the contrast sensitivity to intensify low-contrast fiducials
SIPLACE 80S-20/F4/F5 User Manual 5 Vision Functions
05/99 Issue from Software Version SR.405.xx 5.6 Test Component
Line engineer 5 - 113
Setting the contrast sensitivity to suppress defective structures and intensify the contrast at
the same time
Select the following settings to suppress defective structures and at the same time to intensify the contrast
for low-contrast fiducials:
Fig. 5.6.33 Setting the contrast sensitivity to suppress defective structures and
to intensify the contrast at the same time
