1 Operational Safety SIPLACE 80S-20/F4/F5 User Manual 1.1 Information on safety 05/99 Issue from Softwar e Version SR.405.xx 1 - 6 1.1.5 W arning signs on the placement system The diagr am below s hows the position of th…
SIPLACE 80S-20/F4/F5 User Manual 1 Operational Safety
05/99 Issue from Software Version SR.405.xx 1.1 Information on safety
1 - 5
DANGER
This machine is electrically powered. When electrical equipment is being used, certain parts must of necessity
be live with dangerous voltages!
Always switch off the automatic placement system at the main switch and isolate it from the power supply be-
fore carrying out any work on live parts.
Failure to comply with all instructions may result in serious injury, death and/or considerable damage to
property!
WARNING
Despite all of the safety measures provided by the manufacturer severe injuries to person (e.g. by the gantry)
and/or considerable material damage can occur if the machine is improperly operated! Safe operation of the
machine presupposes that the machine is operated properly by qualified personnel with all warning notes being
observed! Certain work on the machine (e.g. setting-up and adjustment) demand training which goes beyond
the contents of this operating manual.
1 Operational Safety SIPLACE 80S-20/F4/F5 User Manual
1.1 Information on safety 05/99 Issue from Software Version SR.405.xx
1 - 6
1.1.5 Warning signs on the placement system
The diagram below shows the position of the warning signs on the basic machine.

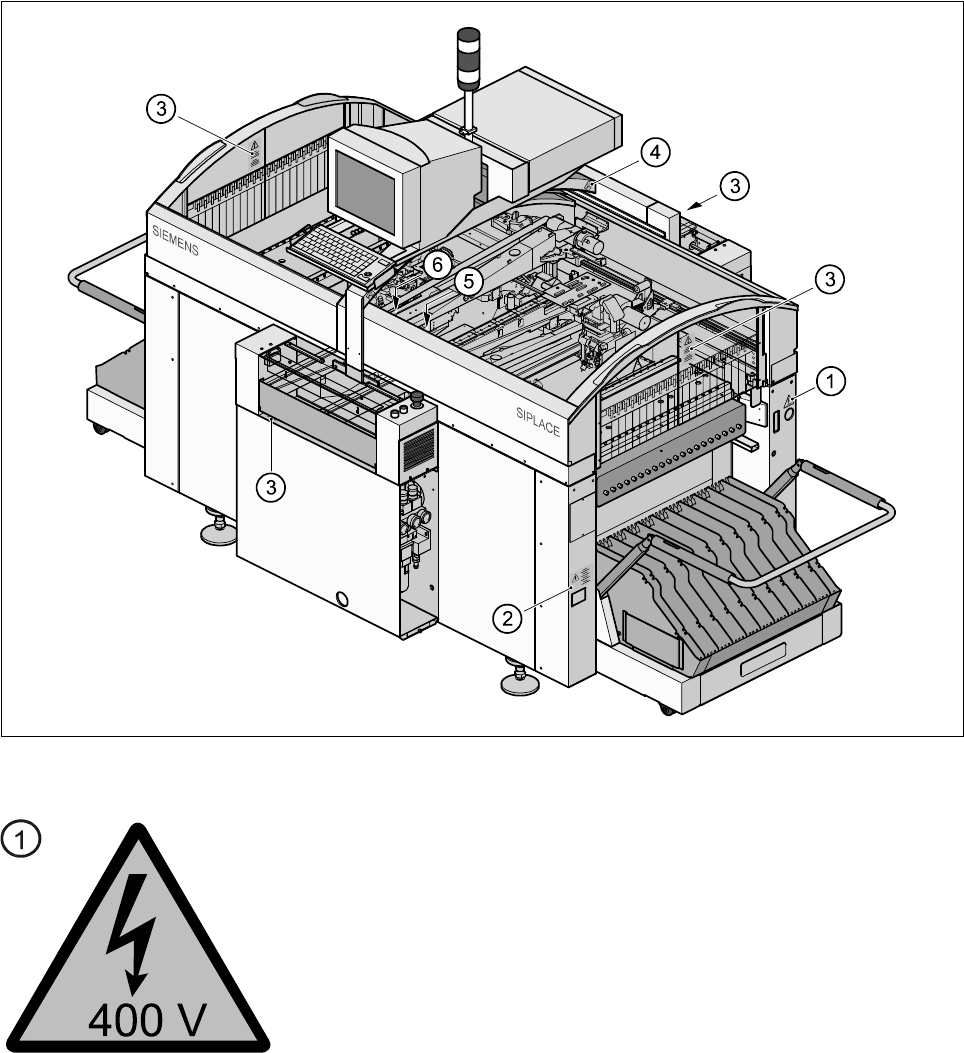

Fig. 1.1.1 Warning signs on the basic machine - part 1
Item 1 in Fig. 1.1.1 showing the warning signs on the basic machine
SIPLACE 80S-20/F4/F5 User Manual 1 Operational Safety
05/99 Issue from Software Version SR.405.xx 1.1 Information on safety
1 - 7
Item 2 in Fig. 1.1.1 showing the warning signs on the basic machine
Item 3 in Fig. 1.1.1 showing the warning signs on the basic machine
