7.1.1.1 Leaving and Editing
Within any view you can leave or edit comments. In this way you can make a record of work you have carried
out, instructions and so on. If a comment has been added to a view this will be indicated by a paper clip.
● Click on the
Annotate
button. An input window will be displayed. In this window you can enter and edit
your comments.

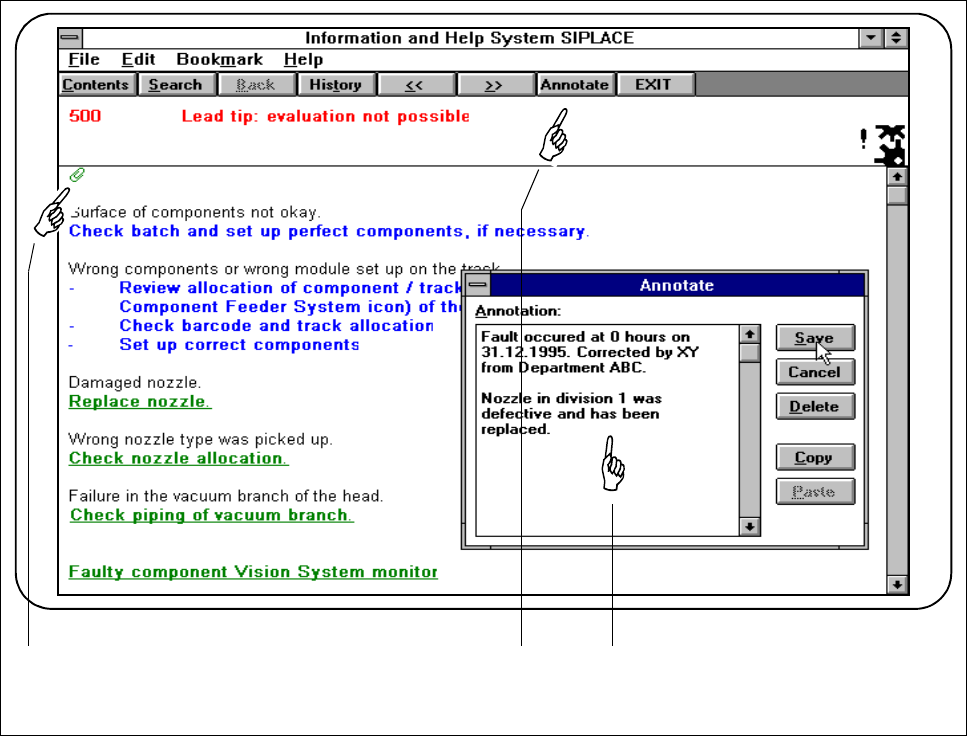

Fig. 7.1.5 Adding comments
- Key to Fig. 7.1.5
1 Indicates whether a comment on this information has been added (paper-clip symbol)
2
Annotate
button
3 Input window
● The paperclip indicates that a comment has been added. Click on the symbol and the corresponding com-
ment will be displayed.
1 2 3
7 Error Information & Diagnostics SIPLACE 80S-20/F4/F5 User Manual
7.1 Error Information 05/99 Issue from Software Version SR.405.xx
7 - 8
SIPLACE 80S-20/F4/F5 User Manual 7 Error Information & Diagnostics
05/99 Issue from Software Version SR.405.xx 7.2 Diagnostics
7 - 9
7.2 Diagnostics
7.2.1 General Comments
If errors occur while the board is being processed, a diagnostics program can be started for this error. You can
start this diagnostics facility either from the main view or from
Display error
.
This diagnostics facility will guide you as far as identifying a possible cause for the error and suggesting a
remedy. This is done by means of a series of questions. Information on the questions asked can be accessed
by pressing an information button.
