9 Maintenance SIPLACE 80 S-20/F4/F5 User Manual 9.5 12x Revolver Head 1000 0 05/99 Issue from Software Version SR.405.xx 9 - 56 Push th e new nozz le on to the sleeve as far a s the sto p (C). If the noz zle can not be t…
SIPLACE 80S-20/F4/F5 User Manual 9 Maintenance
05/99 Issue from Software Version SR.405.xx 9.5 12x Revolver Head 10000
9 - 55
9.5.3 Changing the Nozzle Manually
Materials and Equipment: white laboratory gloves
PLEASE NOTE
This is not a standard nozzle change. It is intended only for use in emergencies when no nozzle changer is
installed on the automatic placement system or if the nozzle changer is out of service. If you turn a nozzle sev-
eral times until it latches in place, the color coding on the nozzle seating may be damaged and the vacuum
channels may be contaminated. Consequently, you must ensure that the nozzle is seated correctly when it is
replaced.
ATTENTION
Do not remove the sleeve from the segment every time you change the nozzle by hand. If the nozzle is
changed frequently this would lead to excessive wear on the sleeve.
Leave the sleeve in the segment.
Fig. 9.5.5 Changing the nozzle manually
- Key to Fig. 9.5.5
Hold the nozzle by its tip and pull it off the sleeve (A).
With one hand prevent the sleeve from rotating. You can do this by holding it at the drive surface with your
fingers (B).
1 Sleeve 3 Latching groove
2 Nozzle 4 Latching pin
A
1
B
2
C
D
9 Maintenance SIPLACE 80S-20/F4/F5 User Manual
9.5 12x Revolver Head 10000 05/99 Issue from Software Version SR.405.xx
9 - 56
Push the new nozzle onto the sleeve as far as the stop (C).
If the nozzle cannot be turned further against the sleeve, then the latching pin (see point 4) is already
engaged in the latching groove (3) of the nozzle.
If the nozzle is not yet engaged, turn it clockwise until you can feel that it has latched in place.
PLEASE NOTE
Do not use too much force when you turn the nozzle against the sleeve since this could cause the color
coding on the nozzle to be damaged by the latching pin (4).
9.5.4 Replacing the Silencer
Spare Part
Silencer, from item no. 00320964-01
Remove the silencer by hand by rotating it clockwise.
Pull out the threaded rod and remove the funnel from the silencer.
Replace the silencer.
To fit the new silencer proceed in the reverse sequence of operations.
Fig. 9.5.6 Replacing the silencer
- Key to Fig. 9.5.6
1 Threaded rod
2Silencer
3 Funnel
3
1
2
SIPLACE 80S-20/F4/F5 User Manual 9 Maintenance
05/99 Issue from Software Version SR.405.xx 9.5 12x Revolver Head 10000
9 - 57
9.5.5 Greasing the Z Drive Unit
Materials and Equipment
A clean and lint-free cloth
Staburags N12 lubricating grease, from item no. 02100611-01

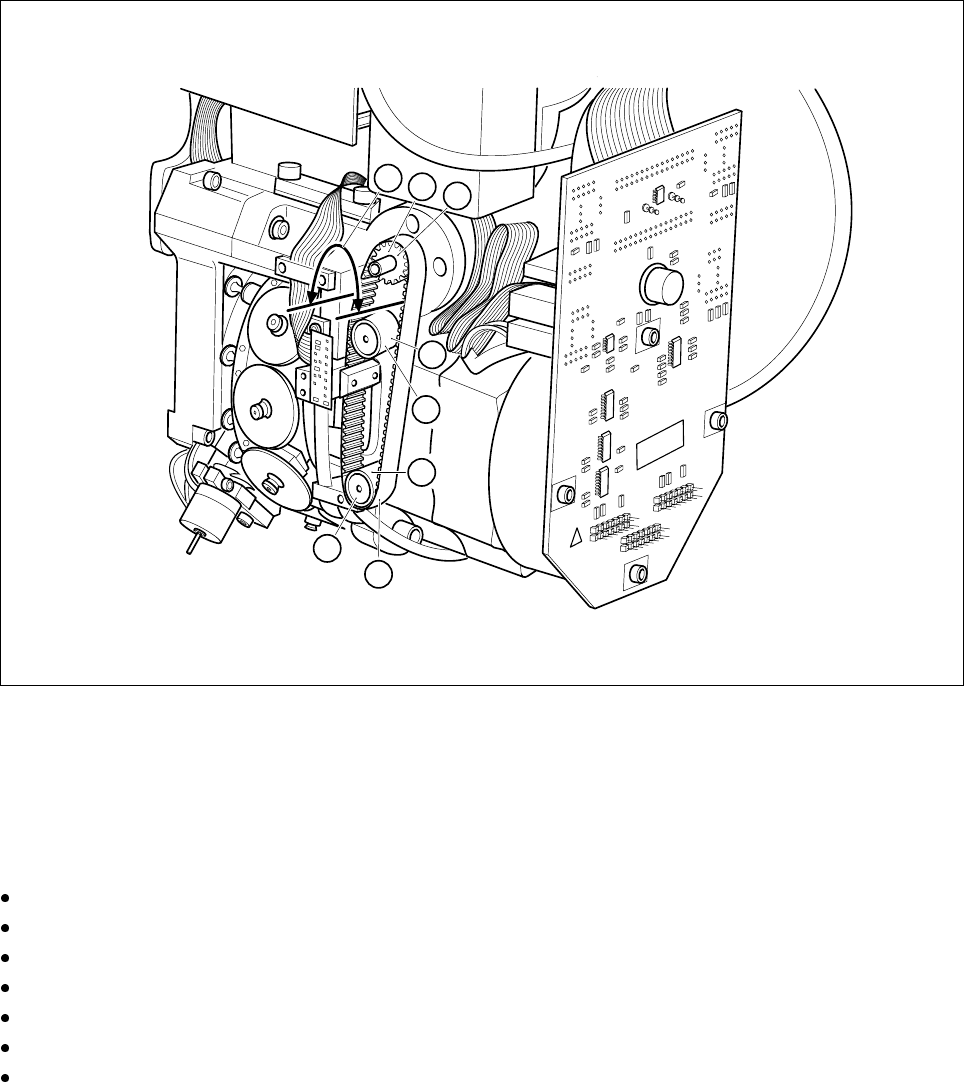

Fig. 9.5.7 Greasing the z drive unit
- Key to Fig. 9.5.7
1 Synchroflex toothed belt
2 Synchronizing pulley
3 Deflection wheels
Move the z axis to its top limit position.
Apply a little Staburags to a clean and lint-free cloth.
Grease the toothed belt sparingly in the area indicated in Fig. 9.5.7 (A).
Apply grease sparingly to the synchronizing pulley (B).
Apply grease sparingly to both deflection wheels.
Move the z axis back and forth repeatedly.
Wipe off excess grease with a cloth.
1
2
B
3
3
A
C
C
