SIPLACE 80S-20/F4/F5 User M anual 9 Maintenance 05/99 Issue from Software Version SR.405.xx 9.6 IC Head (SIPLACE 80F4/F5) 9 - 77 Fig. 9.6.1 1 Specifying the garage numbers in the nozzle changer - Key to Fig. 9.6.1 1 1 No…

9 Maintenance SIPLACE 80S-20/F4/F5 User Manual

9.6 IC Head (SIPLACE 80F4/F5) 05/99 Issue from Software Version SR.405.xx

9 - 76

- Sequence of work in Fig. 9.6.10

A Pull off the sleeve.

B Remove the diaphragm.

C Clean the sleeve with alcohol and dry it before refitting.

D Rub a little talcum powder into the supporting surface of the new diaphragm and keep it absolutely

grease-free.

When you replace the sleeve, push it in as far as it will go.

9.6.6.4 Inserting Nozzles into the Nozzle Changer

After maintenance insert the nozzles by hand into their correct assigned places (by referring to the notes

you took when you removed them ) in the nozzle changer.

Insert the nozzle removal tool into each nozzle in turn and turn the nozzle anticlockwise until it locks in the

nozzle changer. Lift the tool vertically upwards and out.

Close the safety hoods and swivel doors and switch the machine on.

Have the allocations of nozzles to garage numbers displayed by making the following selection :

Gantry 1 functions

→

Nozzle configuration IC head

NOTE

You can only use this function when you have returned the current nozzle not by hand but, as described,

by using the

Return nozzle

function.

A table will be shown on the screen with the garage numbers (pick-up location numbers) and the actual

and programmed occupancies. Insert the nozzles into the nozzle changer in accordance with the ACTUAL

assignments.

Check to make sure the nozzles are properly latched.

NOTE

If the nozzles are not properly latched this will lead to errors in picking up the nozzle, while incorrectly

assigned nozzles will result in component pick-up errors.

At the start of placement the current nozzle as specified in the placement program will be picked up.

SIPLACE 80S-20/F4/F5 User Manual 9 Maintenance

05/99 Issue from Software Version SR.405.xx 9.6 IC Head (SIPLACE 80F4/F5)

9 - 77

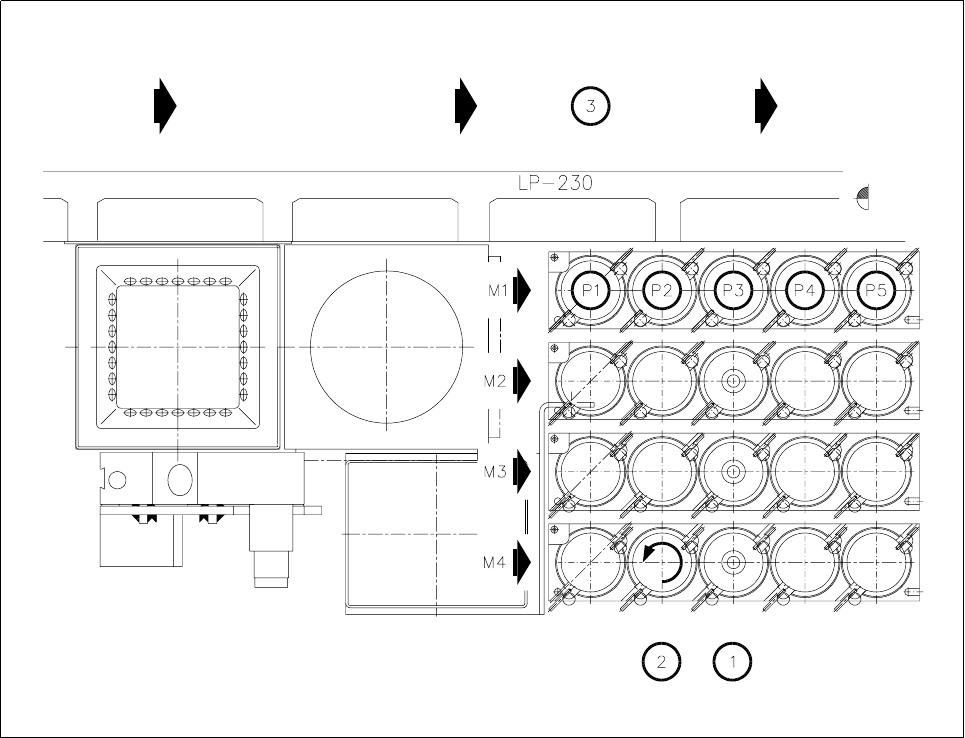

Fig. 9.6.11 Specifying the garage numbers in the nozzle changer

- Key to Fig. 9.6.11

1 Nozzle changer

2 Turn the nozzle counter-clockwise until it locks in place.

3 PCB transport direction

9.6.7 IC-Head Nozzle Survey

The nozzles setting instructions for the IC-head are given in section 17.2.2 of these operating instructions.
