SIPLACE 80S-20/F4/F5 User M anual 9 Maintenance 05/99 Issue from Software Vers ion SR.405.xx 9.9 Camera S ystems and Coplanarity Laser Module 9 - 103 9.9.5.2 Cleani ng the Glass Swit ch the ma chine off at the main s wit…
9 Maintenance SIPLACE 80S-20/F4/F5 User Manual
9.9 Camera Systems and Coplanarity Laser Module 05/99 Issue from Software Version SR.405.xx
9 - 102
- Sequence of work in Fig. 9.9.1
A Clean these surfaces on all sides (applies to IC camera only) and only if the glass disk is dirty.
B Unscrew and remove the hexagon socket screws.
C Pull the glass holder diagonally downwards and away.
D Clean this area.
9.9.5 Coplanarity Laser Module (SIPLACE 80F
4
or 80F
5
)
9.9.5.1 Safety Instructions
NOTE
Safety devices for operating the laser module in laser class 1:
The safety plug in the laser module will prevent the laser being operated outside the machine.
When one of the safety hoods is opened the operating voltage will be interrupted and the operating voltage
LED will go out at the laser module.
This safety feature will remain in force even when the key-operated switch has been operated (unlocked).
Switch off the machine at the main switch before carrying out maintenance work.
DANGER
The coplanarity laser module when without
safety devices corresponds to laser class 3B: the
laser works in a wavelength and power range
which is dangerous for eyes and skin.
Only when the safety features have not been
modified does the module correspond to laser
class 1 and can be operated without endanger-
ing others.
For this reason do not modify or tamper with the
safety devices.
m¦aa*dFd"F"=a"apm
pmpF¨zpFp*F"h
"F4d"
shh"¨:¬mh
"zFG¢Q_s|snn}
SIPLACE 80S-20/F4/F5 User Manual 9 Maintenance
05/99 Issue from Software Version SR.405.xx 9.9 Camera Systems and Coplanarity Laser Module
9 - 103
9.9.5.2 Cleaning the Glass
Switch the machine off at the main switch. Open the sliding safety doors.
Clean the glass disk of the coplanarity laser module (see Fig. 9.9.2) with a clean and dry lens cloth. Use a
special cloth for cleaning optical equipment (e.g Kodak) oder lens cleaning tissue (e.g. Kodak) to remove
any fingerprints.
Close the safety hoods and switch the machine on at the main switch.

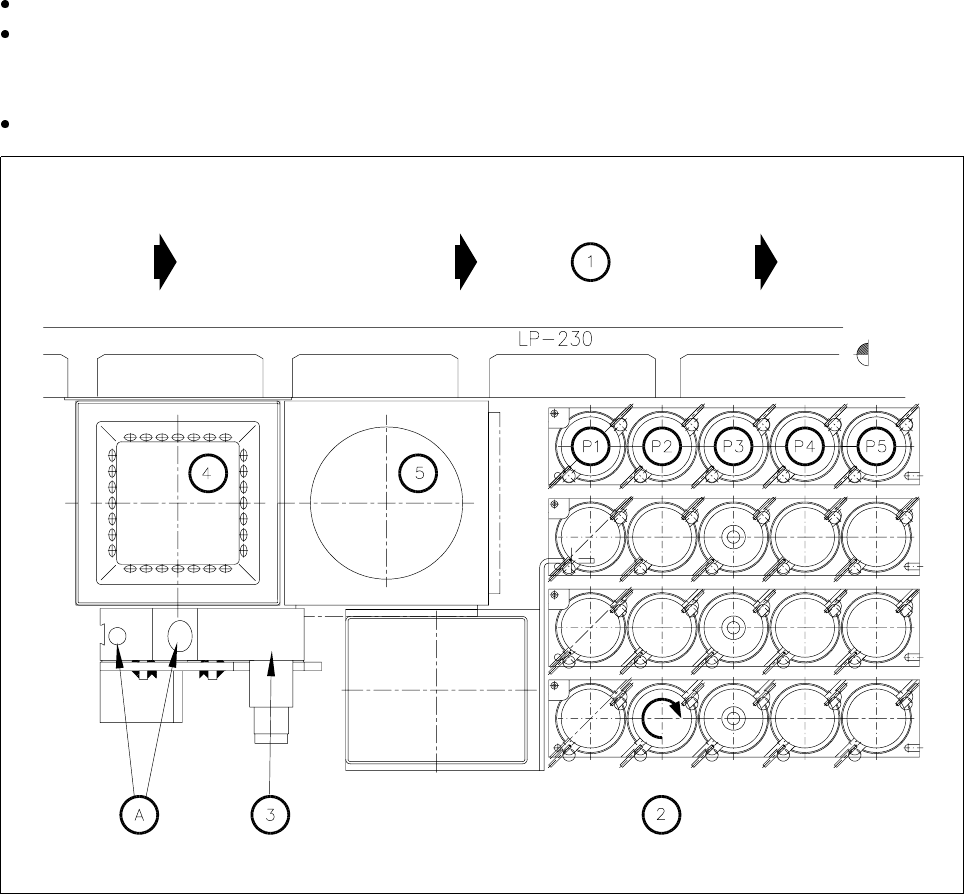

Fig. 9.9.2 Cleaning the glass disk of the coplanarity laser module
- Key to Fig. 9.9.2
1 Direction of PCB transport
2 Nozzle changer
3 Coplanarity laser module
4IC camera
5FC camera
- Sequence of work in Fig. 9.9.2
A Clean the glass with a lens cloth.
r
