SIPLACE 80S-20/F4/F5 User M anual 11 Station Extensions/Options 05/99 Issue from Software Version SR.405.xx 11.12 Nozzle Changer for the 6x Revolver Head 11 - 83 1 1 .12 Nozzle Change r for the 6x Revolver He ad 1 1.12.1…

11 Station Extensions/Options SIPLACE 80S-20/F4/F5 User Manual

11.11 Feeder Position Recognition 05/99 Issue from Software Version SR.405.xx

11 - 82

If the user data contains an entry for a track, the position of the centering fiducial on the feeder concerned is

approached with the PCB camera. Any centering fiducial offset identified during the measuring process is

then allocated to this track and is added to the pick-up position during the pick-up operation.

11.11.1.1 Restrictions

- The feeder position recognition function cannot be used for magazine holders that are set up in the waf-

flepack changer.

- Up to three fiducial positions can be defined for each feeder.

- Feeder fiducials on the right side of the table (viewed in the transport direction) cannot be measured on the

80F.

PLEASE NOTE:

This restriction does not apply to machines with "Under-gantry camera".

- If there is a feeder at location 118 and the fiducial position of the outer pick-up compartment is closer to the

traveling range limit of the x axis than the pick-up position, then the 8 mmS tape and bulk case feeder can-

not be measured.

SIPLACE 80S-20/F4/F5 User Manual 11 Station Extensions/Options

05/99 Issue from Software Version SR.405.xx 11.12 Nozzle Changer for the 6x Revolver Head

11 - 83

11.12 Nozzle Changer for the 6x Revolver Head

11.12.1 Overview

The nozzle changer is used in SIPLACE 80F

automatic placement machines. The nozzle changer has a

modular structure and consists of at least 1 and up to 5 magazines.

There are always 6 nozzle garages on these magazines (see Fig. 11.12.1). The magazines are placed on a

common support located in the space between the PCB transport and the feeder modules (see Fig. 11.12.1).

The positions of the magazines with respect to one another are determined by two locating pins.

Magazines for 7xx nozzle types and magazines for 8xx nozzle types can be fitted. The magazines can be

arranged as required.

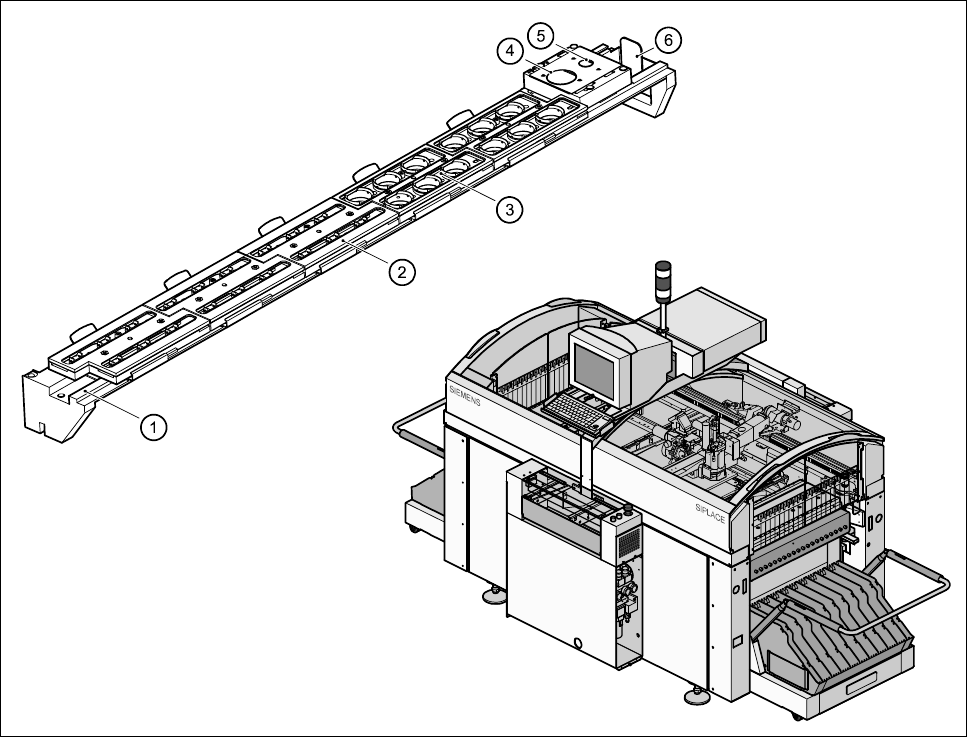

Fig. 11.12.1 Installation location - nozzle changers on the SIPLACE 80F

- Key to Fig. 11.12.1.

1 Support 2 Magazine for nozzle type 7.xx

3 Magazine for nozzle type 8.xx 4 Reject position for nozzle type 8.xx

5 Reject position for nozzle type 7.xx 6 Reject tray

11 Station Extensions/Options SIPLACE 80S-20/F4/F5 User Manual

11.12 Nozzle Changer for the 6x Revolver Head 05/99 Issue from Software Version SR.405.xx

11 - 84

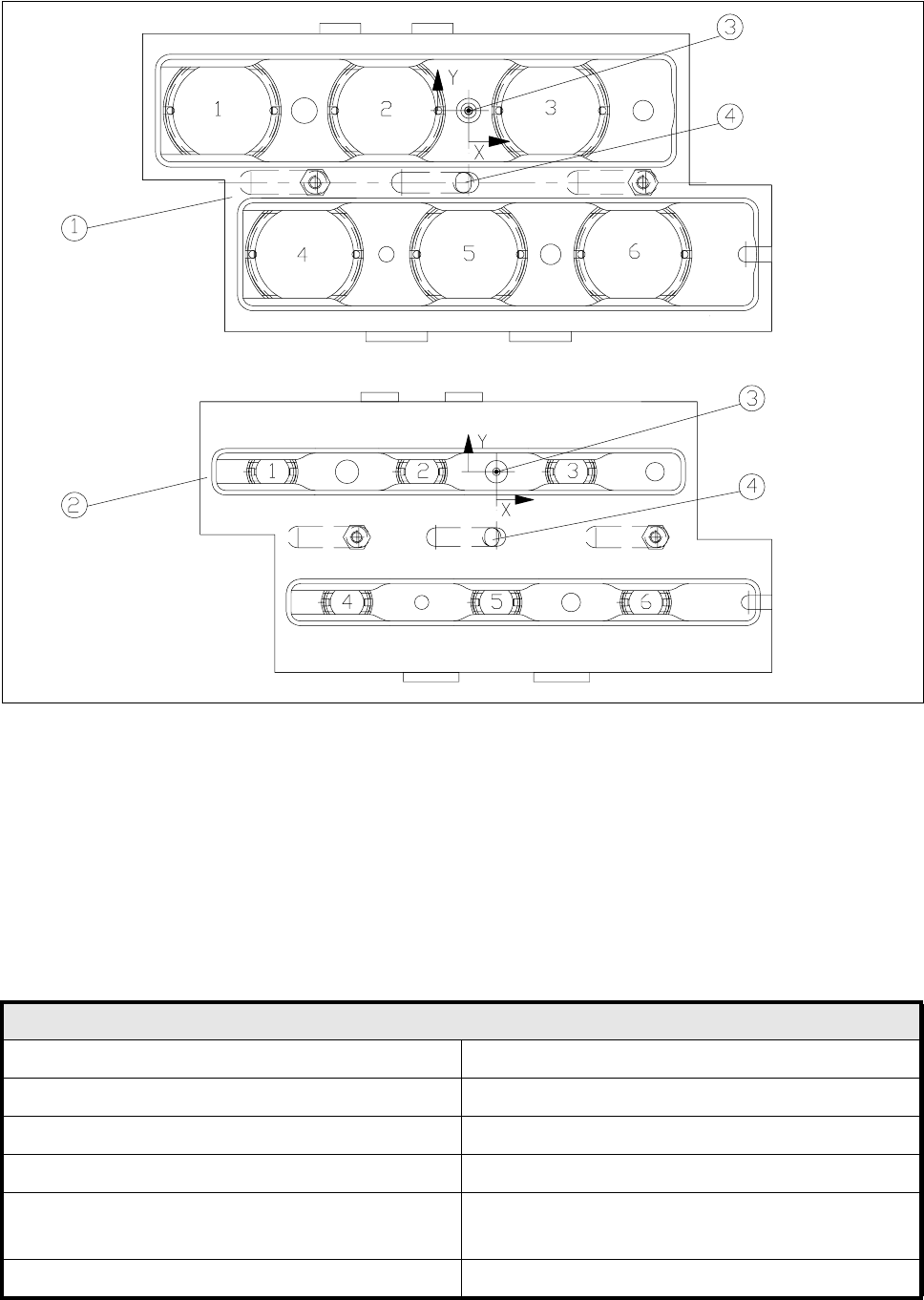

Fig. 11.12.2 Overview - magazine and nozzle garage

- Key to Fig. 11.12.2

1 Magazine for nozzle type 8.xx 2 Magazine for nozzle type 7.xx

3 Fiducial 4 Slot for driving pin

11.12.2 Technical Data

Nozzle changer for the revolver head

Installation space (Length x Width x Height) 575 mm x 70 mm x 60 mm

Number of nozzle garages Min. 6 / max. 30

Usable nozzle types 7xx; 8xx

Plate opening and closing time < 200 ms

Capacity of the reject container Approximately 50 nozzles of type 7.xx / approxi-

mately 5 nozzles of type 8.xx

Pneumatic system Pneumatic supply line (5.5 bar)
