SIPLACE 80S-20/F4/F5 User M anual 17 Nozzle Overview 05/99 Issue from Software Version SR.405.xx 17.1 Nozzle Contour Diagrams 17 - 13 Fig. 17.1.10 Nozzle contour for nozzle type 75x / polyurethane / V ectra A700 / narrow…
17 Nozzle Overview SIPLACE 80S-20/F4/F5 User Manual
17.1 Nozzle Contour Diagrams 05/99 Issue from Software Version SR.405.xx
17 - 12

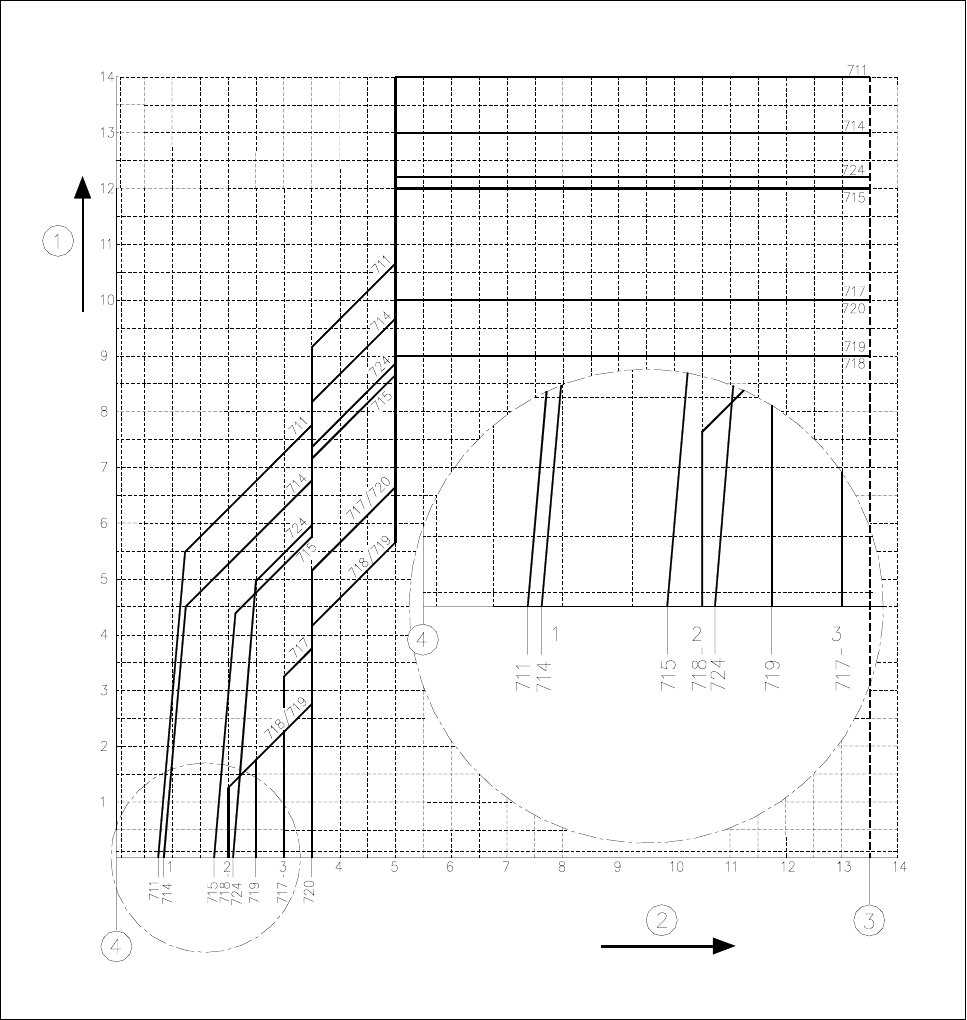

Fig. 17.1.9 Nozzle contour for nozzle type 7xx / Vectra C130 / long side
- Key to Fig. 17.1.9
1 Components height difference [mm] 2 Placement shadow [mm]
3 Outer edge of encoder disk 4 Center of nozzle
SIPLACE 80S-20/F4/F5 User Manual 17 Nozzle Overview
05/99 Issue from Software Version SR.405.xx 17.1 Nozzle Contour Diagrams
17 - 13

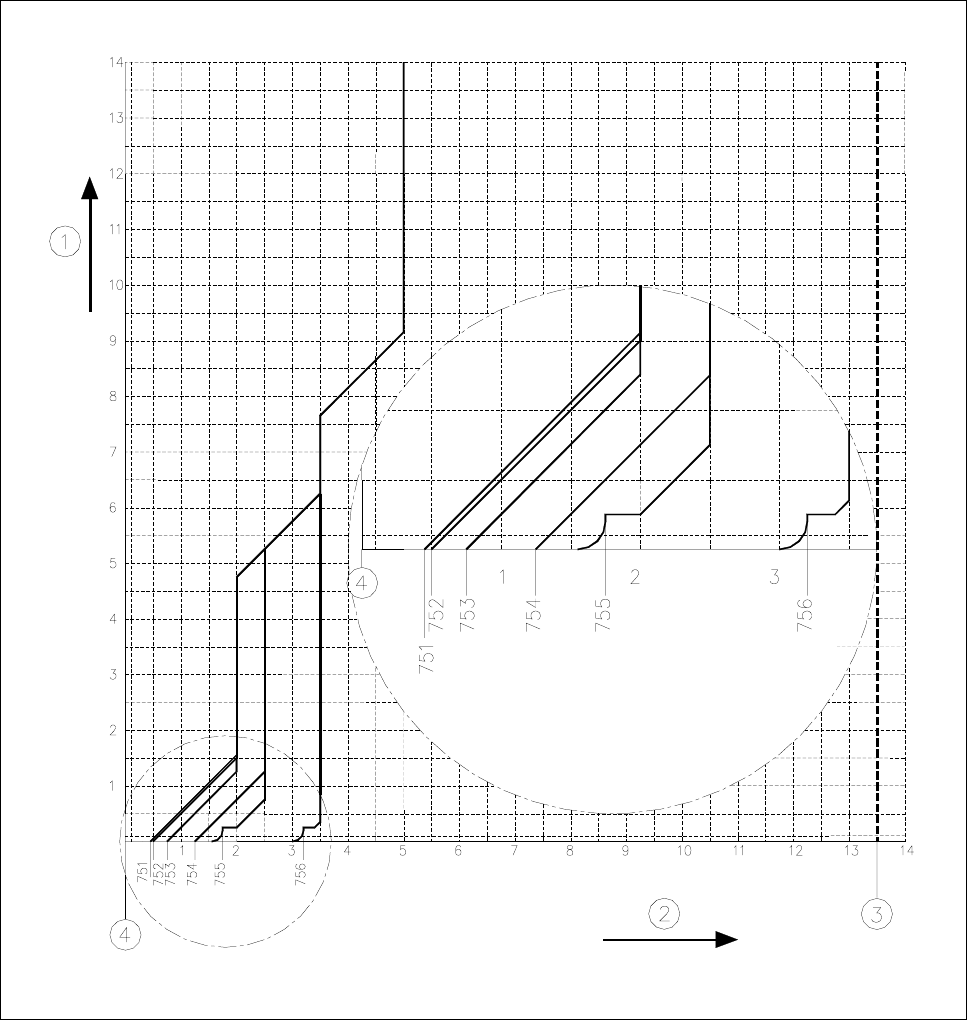

Fig. 17.1.10 Nozzle contour for nozzle type 75x / polyurethane / Vectra A700 / narrow side
- Key to Fig. 17.1.10
1 Components height difference [mm] 2 Placement shadow [mm]
3 Outer edge of encoder disk 4 Center of nozzle
17 Nozzle Overview SIPLACE 80S-20/F4/F5 User Manual
17.1 Nozzle Contour Diagrams 05/99 Issue from Software Version SR.405.xx
17 - 14

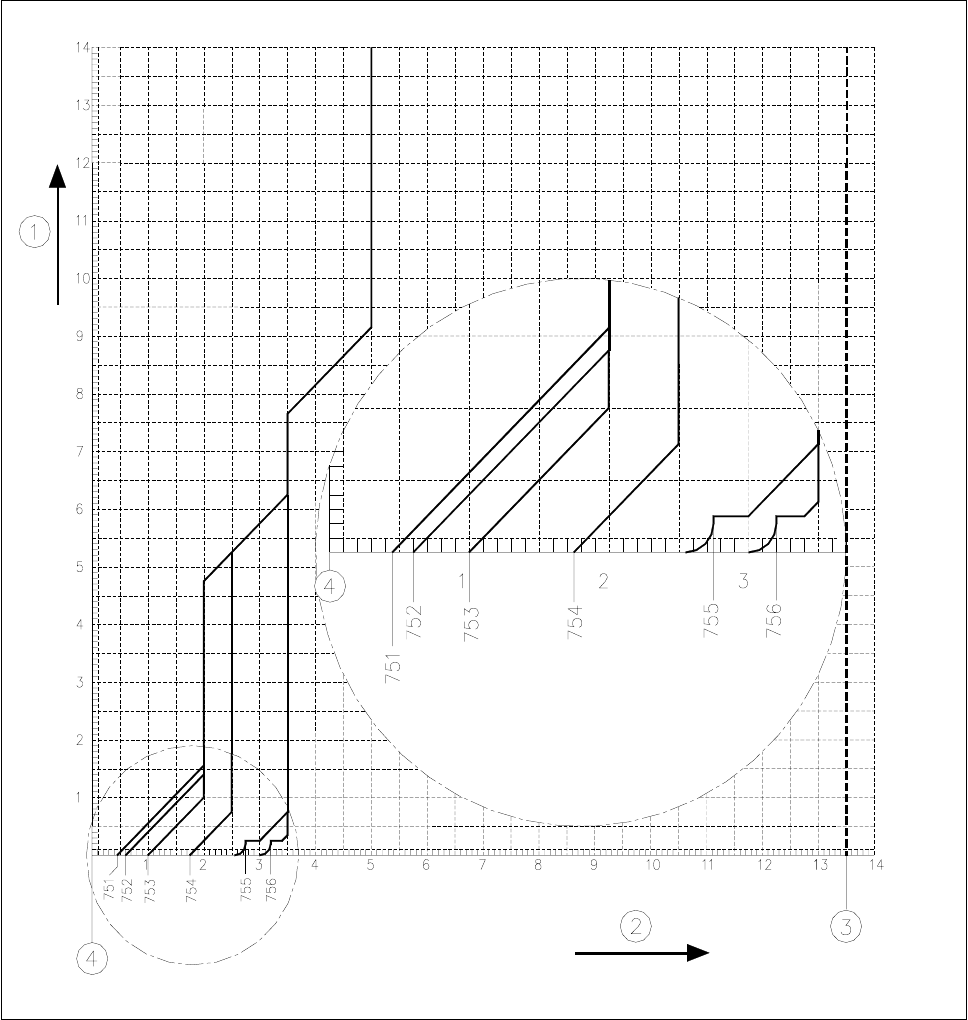

Fig. 17.1.11 Nozzle contour for nozzle type 75x / polyurethane / Vectra A700 / long side
- Key to Fig. 17.1.11
1 Components height difference [mm] 2 Placement shadow [mm]
3 Outer edge of encoder disk 4 Center of nozzle
