17 Nozzle Overview SIPLACE 80S-20/F4/F5 User Manual
17.2 Overview of nozzles 05/99 Issue from Software Version SR.405.xx
17 - 22

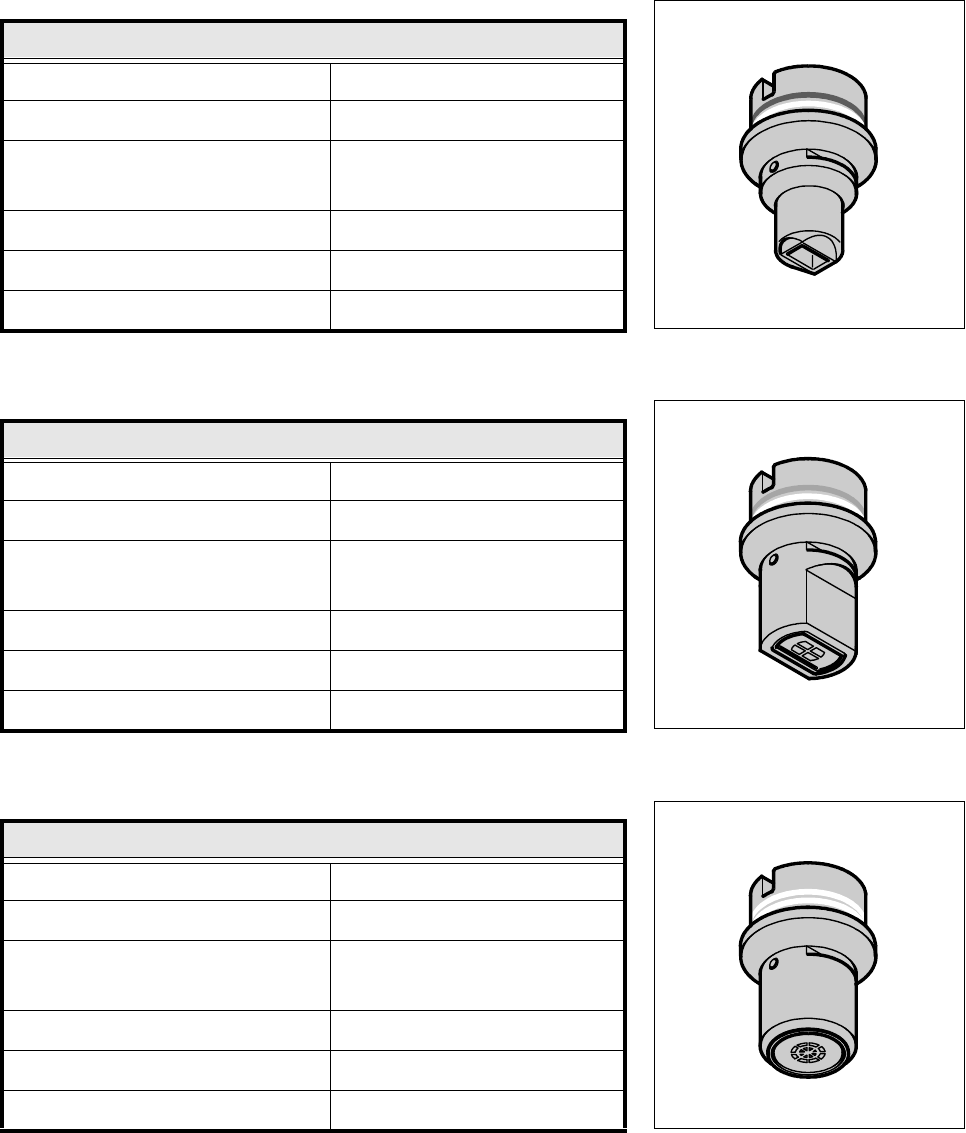

Nozzle type 754
Suction cross-section [mm²] 5.50
Height [mm] 14.5
Material Polyurethane/Vectra A700,
ESD-conductive
Insertable components [mm] 4.5 x3.5 - 7.5 x 6.5
Color coding WHITE/RED
From item number 00330536-02
Nozzle type 755
Suction cross-section [mm²] 14.77
Height [mm] 14.5
Material Polyurethane/Vectra A700,
ESD-conductive
Insertable components [mm] 7.0 x 5.0 - 10 x 8.0
Color coding WHITE/PINK
From item number 00330537-02
Nozzle type 756
Suction cross-section [mm²] 24.6
Height [mm] 14.5
Material Polyurethane/Vectra A700,
ESD-conductive
Insertable components [mm] 8.0 x8.0 - 13.0 x13.0
Color coding WHITE/WHITE
From item number 00330538-02
SIPLACE 80S-20/F4/F5 User Manual 17 Nozzle Overview
05/99 Issue from Software Version SR.405.xx 17.2 Overview of nozzles
17 - 23

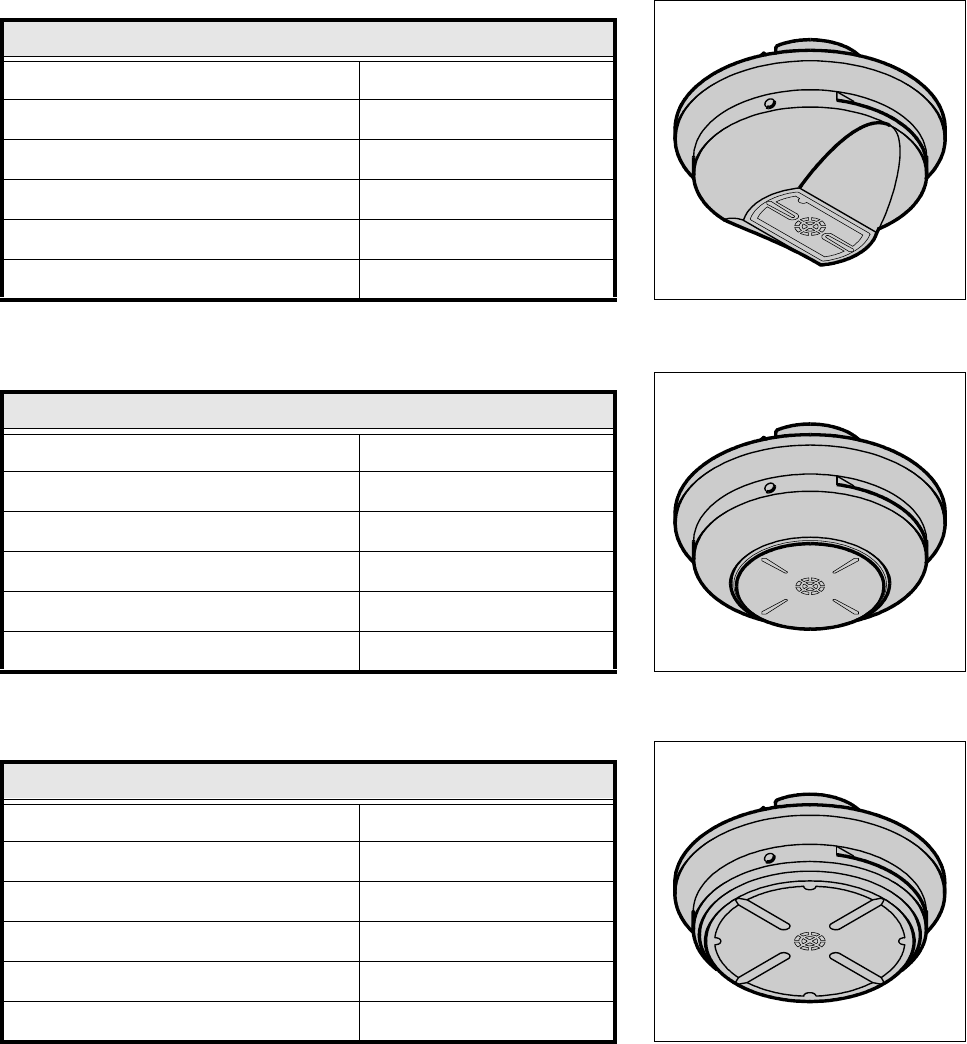

17.2.2 Nozzle types for the 6x revolver placement head
714 - 724 and 751 - 756 nozzle types (see section 17.2.1)
Nozzle type 817
Suction cross-section [mm²] 52.05
Height [mm] 12.5
Material Evoprene/Vectra C130
Insertable components SOX 0.75 < H < 4.50
Color coding YELLOW/PINK
From item number 337584-02
Nozzle type 820
Suction cross-section [mm²] 113.09
Height [mm] 10.5
Material Evoprene/Vectra C130
Insertable components PLCC / 2.75 < H < 6.75
Color coding YELLOW/WHITE
From item number 00326123-02
Nozzle type 821
Suction cross-section [mm²] 226.98
Height [mm] 9.25
Material Evoprene/Vectra C130
Insertable components PLCC / 4.25 < H < 8.75
Color coding YELLOW/LIGHT GREEN
From item number 00326124-02
17 Nozzle Overview SIPLACE 80S-20/F4/F5 User Manual
17.2 Overview of nozzles 05/99 Issue from Software Version SR.405.xx
17 - 24

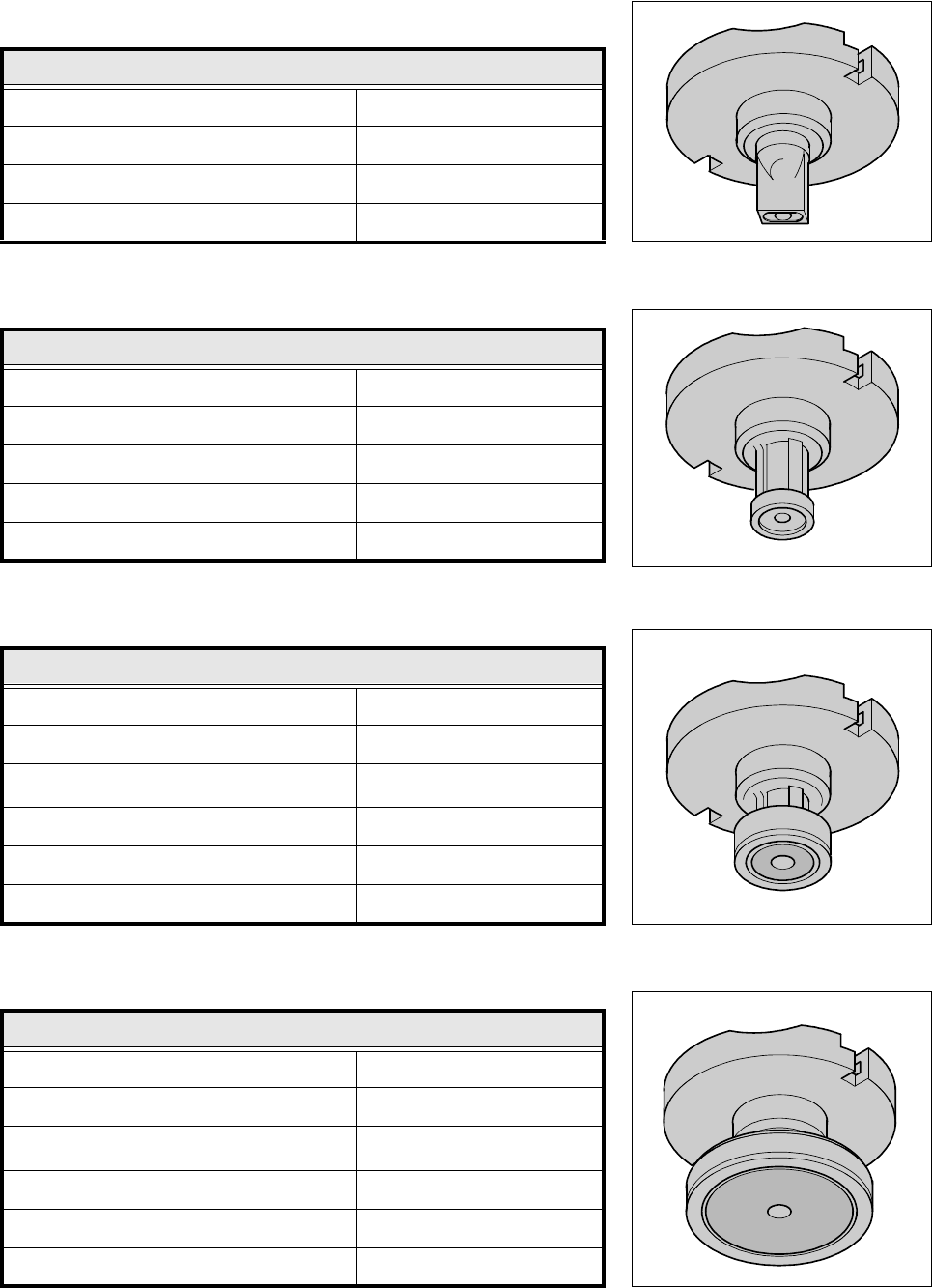

17.2.3 Nozzle types for the IC placement head
Nozzle type 416
Outside contour [mm] 3 x 6
Material Vectra A 700
Effective suction area [mm²] 9.1
From item number 00322545-01
Nozzle type 417
Outside diameter [mm] 8
Material Vectra A 700
Effective suction area [mm²] 28.3
Effective suction diameter [mm] 6
From item number 00322543-01
Nozzle type 418
Outside diameter [mm] 12.5
Material Vectra A 700
Effective suction area mm
2
78.5
Effective suction diameter [mm] 10
From item number 00322544-01
Membrane for nozzle 00307052-03
Nozzle type 419
Outside diameter [mm] 24
Material Vectra A 700
Effective suction area mm
2
363
Effective suction diameter [mm] 21.5
From item number 00322546-01
Membrane for nozzle 00310569-03
