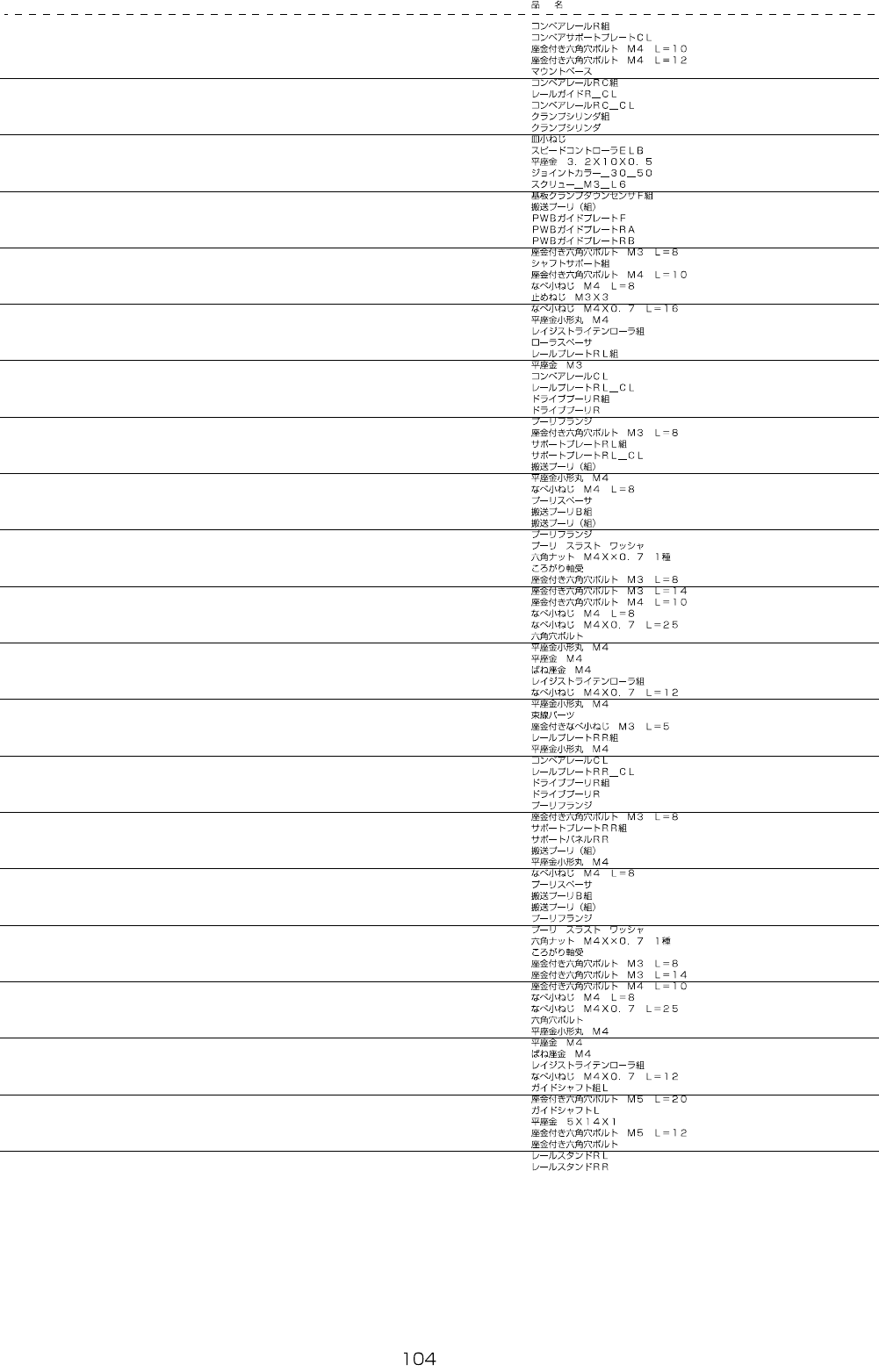

- - 53. CLINCHUNIT COMPONENTS(8 )(CONVE YOR)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 402-13923 CONVEYOR_RAIL_R_ASM 1

2 402-13783 CONV_SUPPORT_PLATE_CL (1)

3 SL-6041092-TN SCREWM4L=10 (10)

4 SL-6041292-TN SCREWM4L=12 (8)

5 HX-0070600-00 MOUNTBASE (9)

6 402-13941 CONVEYOR_RAIL_RC_ASM (1)

7 402-13786 RAIL_GUIDE_R_CL (1)

8 402-13785 CONNEYOR_RAIL_RC_CL (1)

9 402-13922 CLAMP_CYLINDER_ASM (1)

10 402-13777 CLAMP_CYLINDER (2)

11 402-13872 SCREW (4)

12 401-64345 SPEED_CONTROLLER_ELB (4)

13 WP-0320516-KP WASHER3.2X10X0.5 (4)

14 402-13846 JOINT_COLLAR_30_50 (2)

15 402-13843 SCREW_M3_L6 (2)

16 402-13479 PCBCLAMPDOWNSENSFASM (1)

17 E2111-715-0A0 CONVEYORPULLEYASM. (4)

18 E2123-721-000 PWBGUIDEPLATEF (2)

19 E2124-721-000 PWBGUIDEPLATERA (2)

20 E2125-721-000 PWBGUIDEPLATERB (2)

21 SL-6030892-TN SCREWM3L=8 (10)

22 E4105-729-0A0 SHAFTSUPPORTBASM. (2)

23 SL-6041092-TN SCREWM4L=10 (4)

24 SM-4040855-SC SCREW (4)

25 SM-8030302-TP SCREWM3X3 (2)

26 SM-4041601-SC SCREWM4X0.7L=16 (2)

27 WP-0430800-SC WASHERM4 (4)

28 401-38303 RESIST_LIGHTEN_ROLLER_ASM (2)

29 401-38182 ROLLER_SPACER (2)

30 402-13942 RAIL_PLATE_RL_ASM (1)

31 WP-0320501-SC WASHERM3 (1)

32 402-13842 CONVEYOR_RAIL_CL (1)

33 402-13779 RAIL_PLATE_RL_CL (1)

34 400-00839 DRIVE_PULLEY_R_ASM (1)

35 400-00840 DRIVE_PULLEY_R (1)

36 E2160-721-000 PULLEYFLANGE (1)

37 SL-6030892-TN SCREWM3L=8 (3)

38 402-13924 SUPPORTPLATERLASM (1)

39 402-13778 SUPPORT_PLATE_RL_CL (1)

40 E2111-715-0A0 CONVEYORPULLEYASM. (3)

41 WP-0430800-SC WASHERM4

(3)

42 SM-4040855-SC SCREW (3)

43 E2055-721-000 PULLEYSPACER (1)

44 E2089-721-0A0 CONVEYORPULLEYBASM. (1)

45 E2111-715-0A0 CONVEYORPULLEYASM. (2)

46 E2160-721-000 PULLEYFLANGE (1)

47 E3931-750-000 PULLEYWASHER (2)

48 NM-6040001-SC NUTM4X0.7TYPE1 (1)

49 SB-8200001-00 BEARING (2)

50 SL-6030892-TN SCREWM3L=8 (3)

51 SL-6031492-TN SCREWM3L=14 (4)

52 SL-6041092-TN SCREWM4L=10 (2)

53 SM-4040855-SC SCREW (2)

54 SM-4042501-SC SCREWM4X0.7L=25 (1)

55 SM-6051002-TN SCREW (8)

56 WP-0430800-SC WASHERM4 (2)

57 WP-0430801-SC WASHERM4 (1)

58 WS-0410002-KN SPRINGWASHERM4 (1)

59 401-38303 RESIST_LIGHTEN_ROLLER_ASM (2)

60 SM-4041201-SC SCREWM4X0.7L=12 (2)

61 WP-0430800-SC WASHERM4 (2)

62 HX-0034400-00 FIXEDBASE (6)

63 SL-4030591-SC SCREWM3L=5 (6)

64 402-13925 RAIL_PLATE_RR_ASM (1)

65 WP-0430800-SC WASHERM4 (2)

66 402-13842 CONVEYOR_RAIL_CL (1)

67 402-13845 RAIL_PLATE_RR_CL (1)

68 400-00839 DRIVE_PULLEY_R_ASM (2)

69 400-00840 DRIVE_PULLEY_R (1)

70 E2160-721-000 PULLEYFLANGE (1)

71 SL-6030892-TN SCREWM3L=8 (3)

72 401-37181 SUPPORTPLATERRASM (1)

73 401-36816 SUPPORT_PLATE_RR (1)

74 E2111-715-0A0 CONVEYORPULLEYASM. (6)

75 WP-0430800-SC WASHERM4 (6)

76 SM-4040855-SC SCREW (6)

77 E2055-721-000 PULLEYSPACER (1)

78 E2089-721-0A0 CONVEYORPULLEYBASM. (1)

79 E2111-715-0A0 CONVEYORPULLEYASM. (3)

80 E2160-721-000 PULLEYFLANGE (2)

81 E3931-750-000 PULLEYWASHER (4)

82 NM-6040001-SC NUTM4X0.7TYPE1 (2)

83 SB-8200001-00 BEARING (2)

84 SL-6030892-TN SCREWM3L=8 (6)

85 SL-6031492-TN SCREWM3L=14 (4)

86 SL-6041092-TN SCREWM4L=10 (2)

87 SM-4040855-SC SCREW (2)

88 SM-4042501-SC SCREWM4X0.7L=25 (2)

89 SM-6051002-TN SCREW (8)

90 WP-0430800-SC WASHERM4 (3)

91 WP-0430801-SC WASHERM4 (2)

92 WS-0410002-KN SPRINGWASHERM4 (2)

93 401-38303 RESIST_LIGHTEN_ROLLER_ASM (2)

94 SM-4041201-SC SCREWM4X0.7L=12 (2)

95 401-37167 GUIDE_SHAFT_ASM_L 4

96 SL-6052042-TN SCREWM5L=20 (1)

97 401-36819 GUIDE_SHAFT_L (1)

98 WP-0501046-SC WASHER5X14X1 (2)

99 SL-6051292-TN SCREWM5L=12 (1)

100 SL-6052092-TN SCREW 4

101 401-36817 RAIL_STAND_RL 1

102 401-36818 RAIL_STAND_RR 1

- -

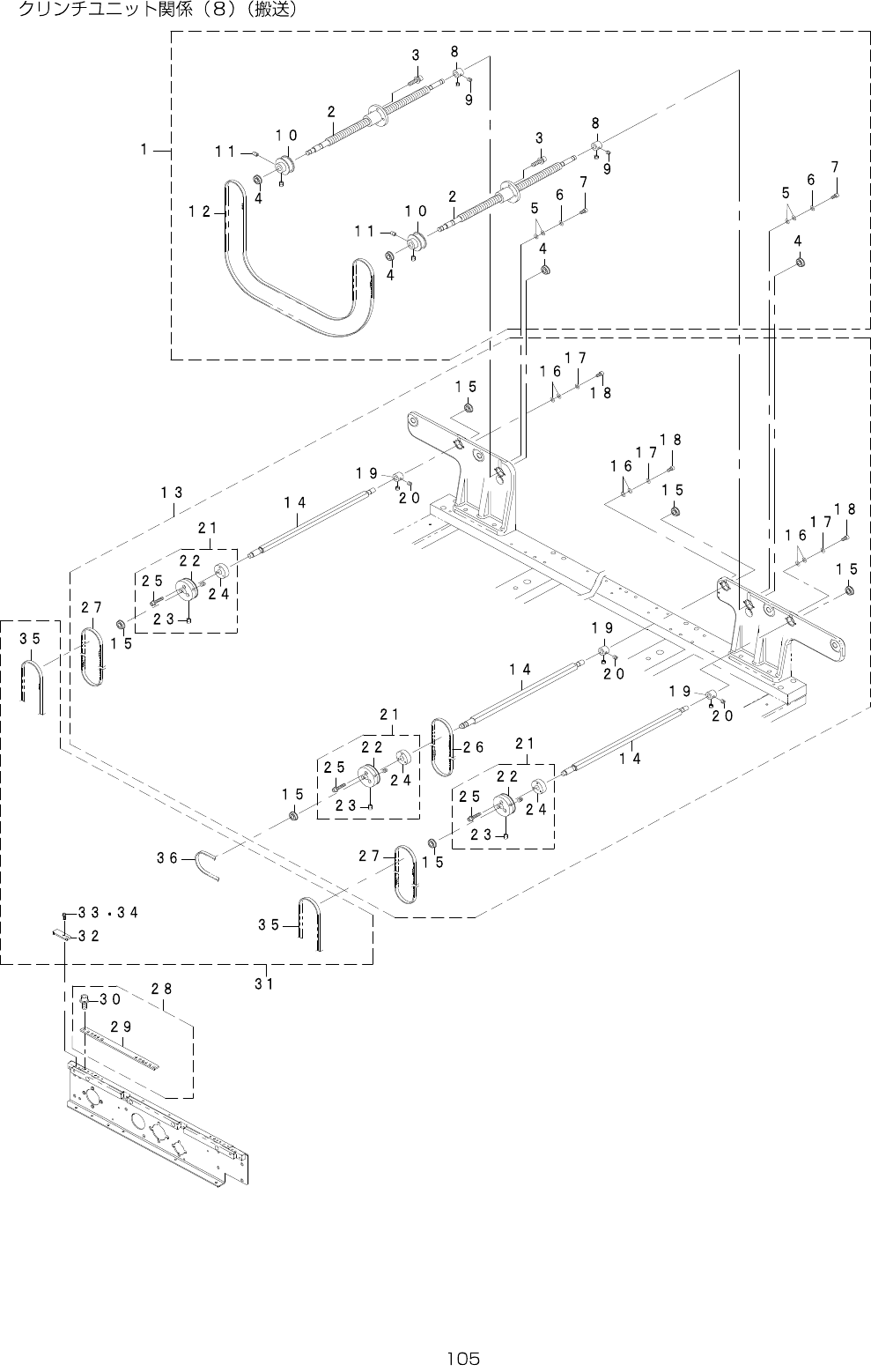

53.CLINCHUNITCOMPONENTS(8)(CONVEYOR)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 402-13943 SCREW_SHAFT_ASM 1

2 400-15578 SCREWSHAFT(L) (2)

3 SL-6041692-TN SCREWM4L=16 (8)

4 SB-1080002-00 BEARING (4)

5 WP-0320500-SF WASHER3.2X7X0.5 (8)

6 WP-0330516-SC WASHER3.3X8X0.5 (4)

7 SM-6030602-TN SCREWM3X6 (4)

8 E2141-721-000 STOPPERCOLLAR (2)

9 SM-8040402-TP SCREWM4X0.7L=4 (4)

10 E2156-721-000 PULLEYA (2)

11 SM-8040602-TP SCREWM4X0.7L=6 (4)

12 402-13782 BELT (1)

13 400-54803 DRIVESHAFTASML(6) 1

14 E2152-721-000 DRIVESHAFTC (3)

15 SB-1080002-00 BEARING (6)

16 WP-0320500-SF WASHER3.2X7X0.5 (12)

17 WP-0330516-SC WASHER3.3X8X0.5 (6)

18 SM-6030602-TN SCREWM3X6 (6)

19 E2141-721-000 STOPPERCOLLAR (3)

20 SM-8040402-TP SCREWM4X0.7L=4 (6)

21 400-00849 DRIVE_PULLEY_F_ASM (3)

22 400-00850 DRIVE_PULLEY_F (1)

23 SM-8040602-TP SCREWM4X0.7L=6 (2)

24 400-00851 MOTOR_PULLEY_B (1)

25 SL-6031642-TN SCREWM3L=16 (3)

26 400-01005 DRIVEBELTC(L) (1)

27 400-46033 DRIVEBELTS(6) (2)

28 400-00860 PWB_GUIDE_ASM 1

29 400-00861 PWB_GUIDE_U (8)

30 SL-6031092-TN SCREWM3L=10 (16)

31 400-01068 CONVEYORBELTASM(L) 1

32 E2046-725-000 PWBINNER (12)

33 SL-4031091-SC SCREWM3L=10 (8)

34 SL-6031092-TN SCREWM3L=10 (16)

35 400-00863 CONVEYOR_BELT_S (4)

36 400-01070 CONVEYORBELTC(L) (2)
