JM-100-Rev07 - 第16页

- - 6. BASEFRAME ELECTRICA PPARATUSCOM PONENTS(5)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 402-06695 ASM_JM100_ELECTRICAL_UNIT_A 1

#01

402-06707 ASM_JM100_ELECTRICAL_UNIT_A_EN 1

3 E1038-871-000 PLATENLOCKCAMSCREW (1)

4 SL-4030691-SC SCREWM3L=6 (13)

5 400-47075 DIN_RAIL (1)

6 401-11661 DIN_RAIL_350 (1)

7 SL-4040891-SC SCREWM4X8 (5)

#01

SL-4040891-SC SCREWM4X8 (7)

9 401-82150 EUP107WIREASM (1)

10 401-82153 EUP110WIREASM (1)

11 401-82154 EUP111WIREASM (1)

12 401-82155 EUP112WIREASM (1)

13 401-82382 BLOCKTERMINAL (1)

14 HA-0061900-00 MAGNETICCONTACTOR (1)

15 HA-0063000-00 MAGNETICCONTACTOR (1)

16 HA-0065100-00 CIRCUITPROTECTOR (1)

17 HA-0065100-0A CIRCUITPROTECTOR (1)

18 HK-0691900-0B BLOCKTERMINAL (2)

19 HK-0695500-10 BLOCKTERMINAL (17)

20 HK-0695900-00 BLOCKTERMINAL (1)

21 HK-0695900-0A BLOCKTERMINAL (3)

22 HK-0695900-20 TERMINAL (8)

23 HK-0696500-10 BLOCKTERMINAL (6)

24 HK-0696900-00 BLOCKTERMINAL (1)

25 HK-0696900-0A BLOCKTERMINAL (1)

26 HK-0696900-20 TERMINAL (3)

27 SL-4030891-SC SCREWM3L=8 (2)

28 EA-9500B01-00 CABLEBAND (8)

29 EA-9500B02-00 CABLEBAND (3)

30 HX-0067100-0A GROMMET (0.25)

31 402-06499 PSU_A_BRACKET (1)

32 401-82144 EUP101WIREASM (1)

#01

HA-0063000-00 MAGNETICCONTACTOR (2)

#01

HB-0015800-00 RELAY (1)

#01

HB-0013900-00 RELAY (7)

#01

HB-0013900-10 RELAY (7)

#01

HK-0691900-0B BLOCKTERMINAL (2)

#01

HK-0696900-30 TERMINAL (2)

#01

HK-0858900-00 BLOCKTERMINAL (1)

#01

HK-0696900-0A BLOCKTERMINAL (1)

#01

400-47145 DIN_RAIL (1)

#01

HK-0858500-10 BLOCKTERMINAL (10)

#01

SL-4030891-SC SCREWM3L=8 (2)

#01

EA-9500B01-00 CABLEBAND (25)

45 402-06696 ASM_JM100_POWER_SUPPLY_UNIT_B 1

#01

402-06708 ASM_JM100_POWER_SUPPLY_UNIT_B_EN 1

47 401-83001 PS_BRACKET_692 (4)

48 402-06628 PSU_BRACKET_R_SIDE (1)

49 401-83003 PSU_BRACKET_BOTTOM (1)

50 401-83004 PSU_BRACKET_M1 (1)

51 401-83005 PS_BRACKET_E_BANK (1)

52 402-06631 PSU_BRACKET_M2 (1)

53 402-06630 PSU_BRACKET_M3 (1)

54 402-06629 PSU_BRACKET_L_SIDE (1)

55 402-06504 PSU_BRACKET_F (1)

56 402-06626 PSU_B_FACE_BR (1)

57 402-06627 PAU_B_COVER (1)

58 401-83013 PS_BRACKET_CD (1)

59 SL-4040891-SC SCREWM4X8 (20)

60 SL-4030691-SC SCREWM3L=6 (21)

61 SL-6040892-TN SCREWM4L=8 (23)

62 HX-0070600-00 MOUNTBASE (13)

63 E1038-871-000 PLATENLOCKCAMSCREW (4)

64 400-47097 DIN_RAIL (1)

65 HX-0035400-0E SPACER (5)

66 401-28877 POWERPCBASM (1)

67 401-82160 EUP201WIREASM (1)

68 401-82178 EUP219WIREASM (1)

69 401-82179 EUP220WIREASM (1)

70 401-82180 EUP221WIREASM (1)

71 401-82378 POWERSUPPLY (1)

72 HA-0054200-0B CIRCUITPROTECTOR (1)

73 HA-0065000-00 CIRCUITPROTECTOR (1)

74 HA-0065000-0A CIRCUITPROTECTOR (3)

75 HB-0005800-10 RELAY (3)

76 HB-0012800-0C RELAY (3)

77 HK-0691900-0B BLOCKTERMINAL (2)

78 HK-0693500-10 BLOCKTERMINAL (2)

79 HK-0696500-10 BLOCKTERMINAL (6)

80 HK-0696900-00 BLOCKTERMINAL (1)

81 HK-0696900-0A BLOCKTERMINAL (1)

82 HK-0696900-20 TERMINAL (3)

83 HX-0069200-00 POWERSUPPLY (1)

84 HX-0071800-00 POWERSUPPLY (1)

85 HX-0071900-00 POWERSUPPLY (1)

86 HX-0067100-0A GROMMET (0.1)

87 EA-9500B01-00 CABLEBAND (14)

88 EA-9500B02-00 CABLEBAND (9)

#01

401-87797 PS_BRACKET_EN (1)

#01

401-87862 POWERSUPPLY (1)

#01

SL-4030691-SC SCREWM3L=6 (4)

#01

SL-6040892-TN SCREWM4L=8 (2)

#01

EA-9500B01-00 CABLEBAND (15)

#01

EA-9500B02-00 CABLEBAND (10)

- -

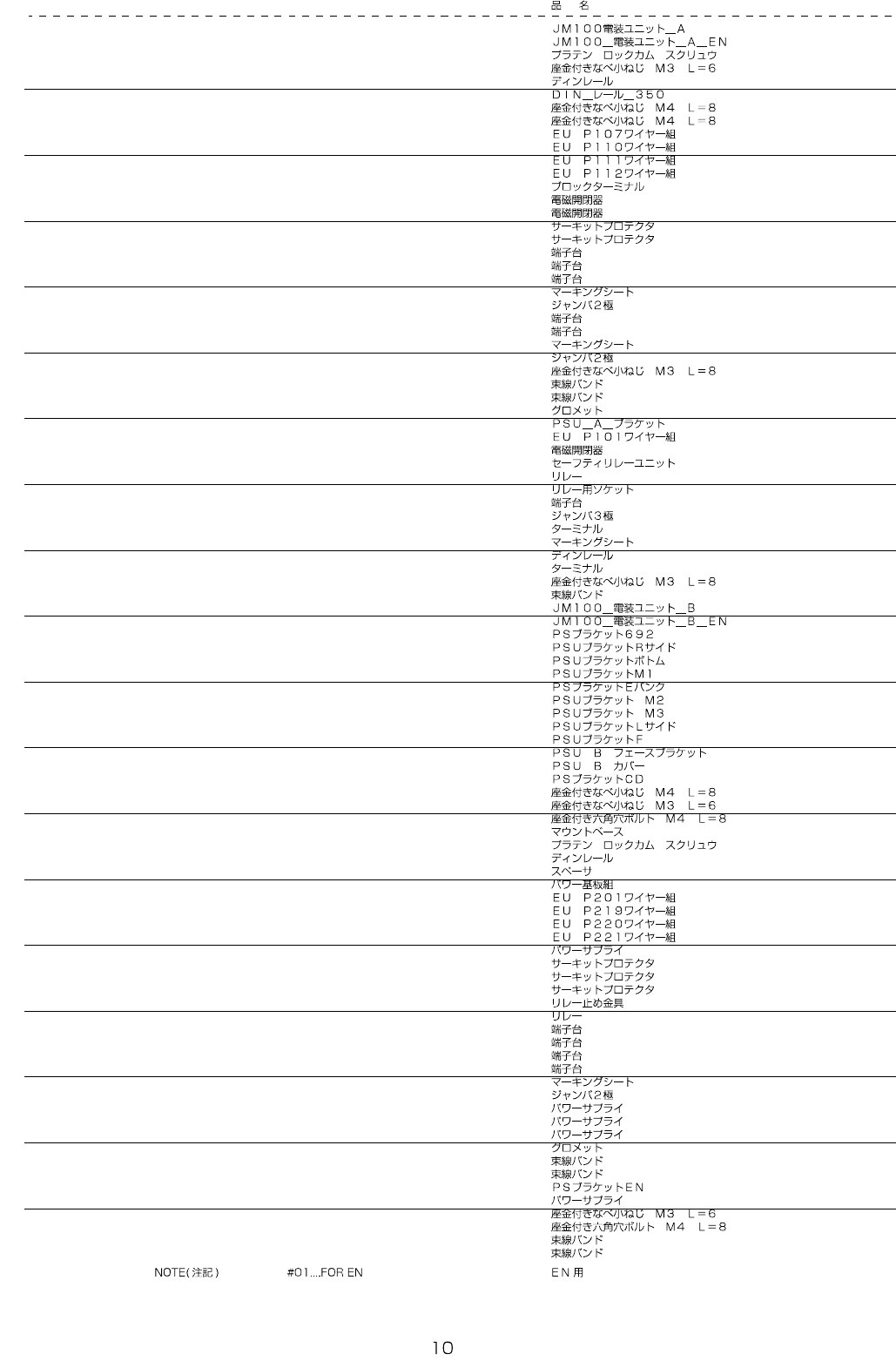

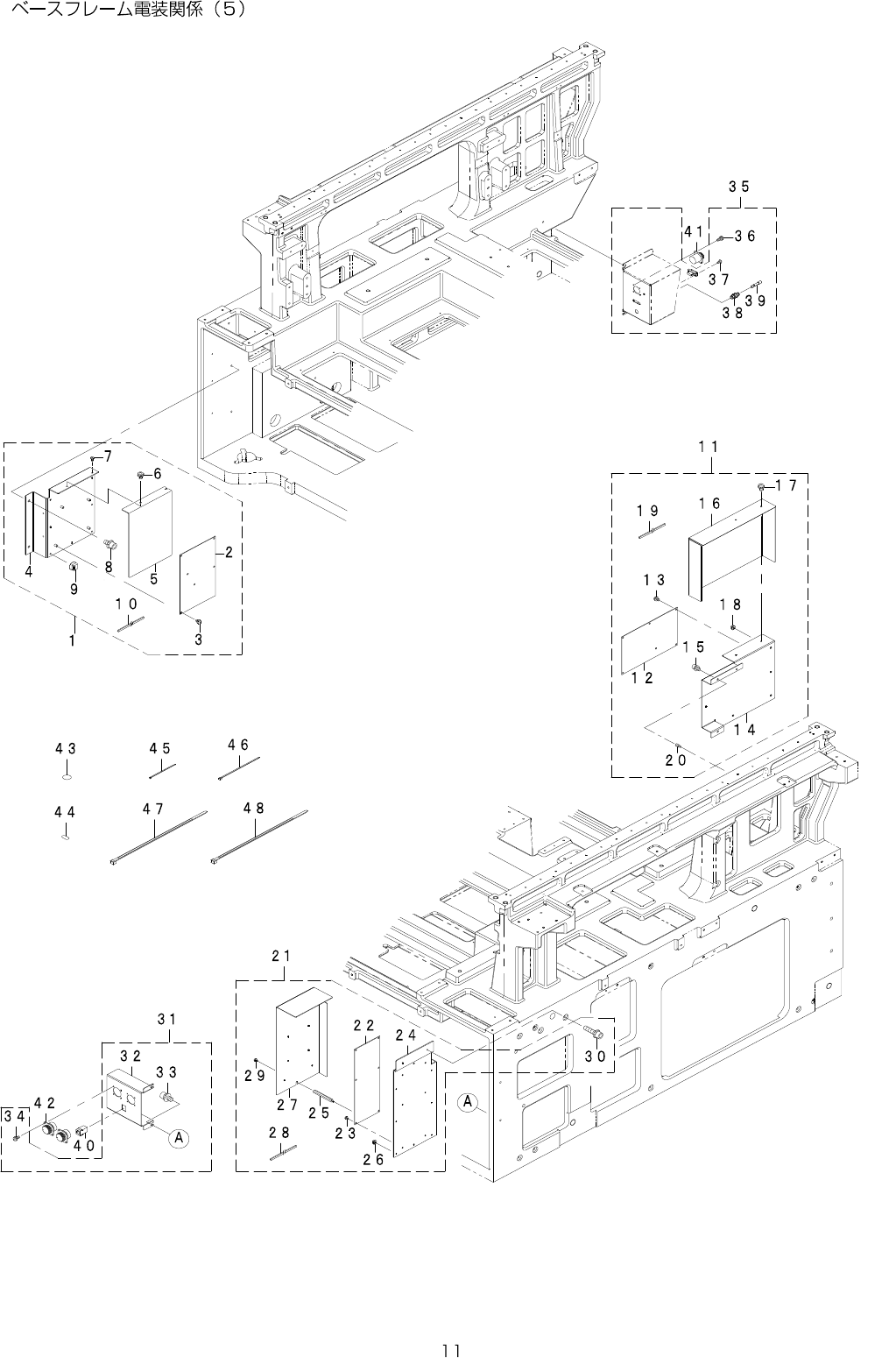

6. BASEFRAMEELECTRICAPPARATUSCOMPONENTS(5)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 402-06697 ASM_JM100_BANK_RELAY_F_ASSY 1

2 402-06240 MIBANKRELAYPCBASM (1)

3 SL-4030691-SC SCREWM3L=6 (6)

4 402-06501 BANK_RELAY_BR_F (1)

5 402-06625 BANK_RELAY_BR_F_COVER (1)

6 SL-4040891-SC SCREWM4X8 (1)

7 E1038-871-000 PLATENLOCKCAMSCREW (1)

8 SL-6061292-TN SCREWM6L=12 (2)

9 HX-0070600-0A MOUNTBASE (7)

10 HX-0067100-0A GROMMET (0.22)

11 402-06698 ASM_JM100_BANK_RELAY_R_ASSY 1

12 402-06240 MIBANKRELAYPCBASM (1)

13 SL-4030691-SC SCREWM3L=6 (6)

14 401-83018 BANK_RELAY_BR_R (1)

15 SL-6040892-TN SCREWM4L=8 (3)

16 401-83019 BANK_RELAY_COVER_R (1)

17 SL-4040891-SC SCREWM4X8 (2)

18 HX-0070600-0A MOUNTBASE (6)

19 HX-0067100-00 GROMMET (0.39)

20 HX-0033900-00 SPACER (3)

21 402-06699 ASM_JM100_SAFETY_PWB_ASSY 1

22 402-09949 SAFETYPCBASM (1)

23 SL-4040891-SC SCREWM4X8 (6)

24 402-06624 SAFETY_PWB_BR (1)

25 400-47078 STUD70 (2)

26 HX-0070600-0A MOUNTBASE (6)

27 402-06500 BANK_RELAY_COVER_F (1)

28 HX-0067100-0A GROMMET (0.15)

29 SL-4040891-SC SCREWM4X8 (2)

30 SL-6062592-TN SCREWM6L=25 (2)

31 402-06703 ASM_JM100_IF_PANEL_ASSY 1

32 402-06615 IF_PANEL_J1 (1)

33 SL-6061292-TN SCREWM6L=12 (2)

34 SL-4030881-SC SCREWM3L=8 (8)

35 402-06704 ASM_JM100_MTS_IF_P_E_ARD_ASSY 1

36 SL-4030881-SC SCREWM3L=8 (4)

37 SM-4860501-SC SCREWM2.6X5 (2)

38 PJ-2300062-00 PARTITIONUNION (1)

39 PX-9500010-00 PLUG6 (1)

40 HK-0651200-80 CONNECTOR 1

41 402-05719 SW-TF/MTSWIREASM2 1

42 401-29031 SMEMACABLEASM 2

43 100-04109 GROUNDMARK 3

44 CM-2001000-01 PEMARKLABEL 1

45 EA-9500B01-00 CABLEBAND 150

46 EA-9500B02-00 CABLEBAND 120

47 HX-0006500-0B CABLEBAND 50

48 HX-0006500-0C CABLEBAND 30
