28.PWBCONVEYORCOMPONENTS(7)
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-10205 BUUNITL 1
2 401-06045 BUBASEL (1)
3 400-71334 BU_TIMING_BELT (1)
4 SB-8160001-00 BEARING (3)
5 400-80446 GUIDESHAFTUNIT (3)
6 400-76103 BUGUIDESHAFT (1)
7 L177E-521-000 GUIDESHAFTHOLDER (1)
8 SL-6041042-TN SCREWM4L=10 (2)
9 SM-6040802-TN SCREWM4X0.7L=8 (12)
10 400-93903 ENCORDERUNIT (1)
11 400-93612 ENCORDERPULLEY (1)
12 SM-8040602-TP SCREWM4X0.7L=6 (2)
13 SB-1100005-00 BEARING (2)
14 E9433-729-0A0 BUENCASM. (1)
15 SM-6030502-TN SCREWM3L=5 (2)
16 400-93904 ENCORDERBR (1)
17 SL-6041092-TN SCREWM4L=10 (4)
18 400-93905 ENCORDERSHAFT (1)
19 RC-0100001-KP SNAPRINGM10 (1)
20 400-93906 STOPPERDISC (1)
21 SL-6042092-TN SCREWM4L=20 (4)
22 WP-0320501-SC WASHERM3 (2)
23 400-93901 BUMOTORUNIT (1)
24 400-93902 BUMOTORBR (1)
25 L177E-621-0A0 TORQUESUPPORTUNIT (1)
26 E4156-729-000 NUT(M17X1) (1)
27 E4144-729-000 THRUSTCOLLAR (2)
28 L177E-621-000 TORQUESUPPORT (1)
29 402-00134 SCREW_M5_10_M (2)
30 L177E-721-000 SPTTBLMOTORPULLEY (1)
31 E4142-729-000 STOPPERPIN (2)
32 SB-1170001-00 BEARING (2)
33 L177E-821-000 TORTIONSPRING (1)
34 400-48076 BACKUPMOTORASM (1)
35 SL-6051292-TN SCREWM5L=12 (4)
36 SL-6051692-TN SCREWM5L=16 (4)
37 400-82786 STBLBALLSCREWUNIT 3
38 L176E-821-000 SPTTBLBALLSCREW (1)
39 SM-6041002-TN SCREW (18)
40 SL-6041642-TN SCREW (4)
41 L176E-921-000 CLAMPHOLDER (1)
42 L177E-021-000 HOLDERCUSHION (1)
43 E4124-729-000 SHAFTHOLDER (1)
44 SL-6041092-TN SCREWM4L=10 (1)
45 L177E-221-000 SPTTBLPULLEY (1)
46 401-10206 SUPPORTTABLELASM 1
47 SL-6040892-TN SCREWM4L=8 (1)
48 L177E-121-000 BALLSCREWSUPPORTPLATE (3)
49 401-10111 SUPPORTTABLEL (1)
50 L177E-421-000 GUIDESHAFTPLATE (3)
51 L176E-121-000 SIDEBEAM (2)
52 SL-6031092-TN SCREWM3L=10 (8)
53 SM-1040801-SC SCREWM4X0.7L=8 (9)
54 SL-6041092-TN SCREWM4L=10 (12)
55 400-93909 BUSENSORDOG (1)
56
#01
401-88596 BUSTOPPERASM_RS-1 1
57 SM-6051002-TN SCREW (2)
58 PA-1501011-00 DUALRODCYLINDER (1)
59 SM-6042002-TN SCREW (2)
60 400-94746 BUSTOPPERBR (1)
61 PC-0105080-00 SPEEDCONTROLLER (2)
62 400-92574 BULOCKSENSASM (1)
63 HX-0029400-00 FIXEDBASE (1)
64 SM-4040801-SC SCREWM4X0.7L=8 (1)
65 PV-1502090-00 5-PORTSOLENOIDVALVE (1)
66 400-00970 BUSTOPER (1)
67 BT-0400251-EA URETHANETUBEBLUE4X2.5 (2.5)
68 SL-6082092-TN SCREWM8L=20 4
69 SM-6051402-TN SCREWM5L=14 2
70 SL-6040892-TN SCREWM4L=8 15
- -

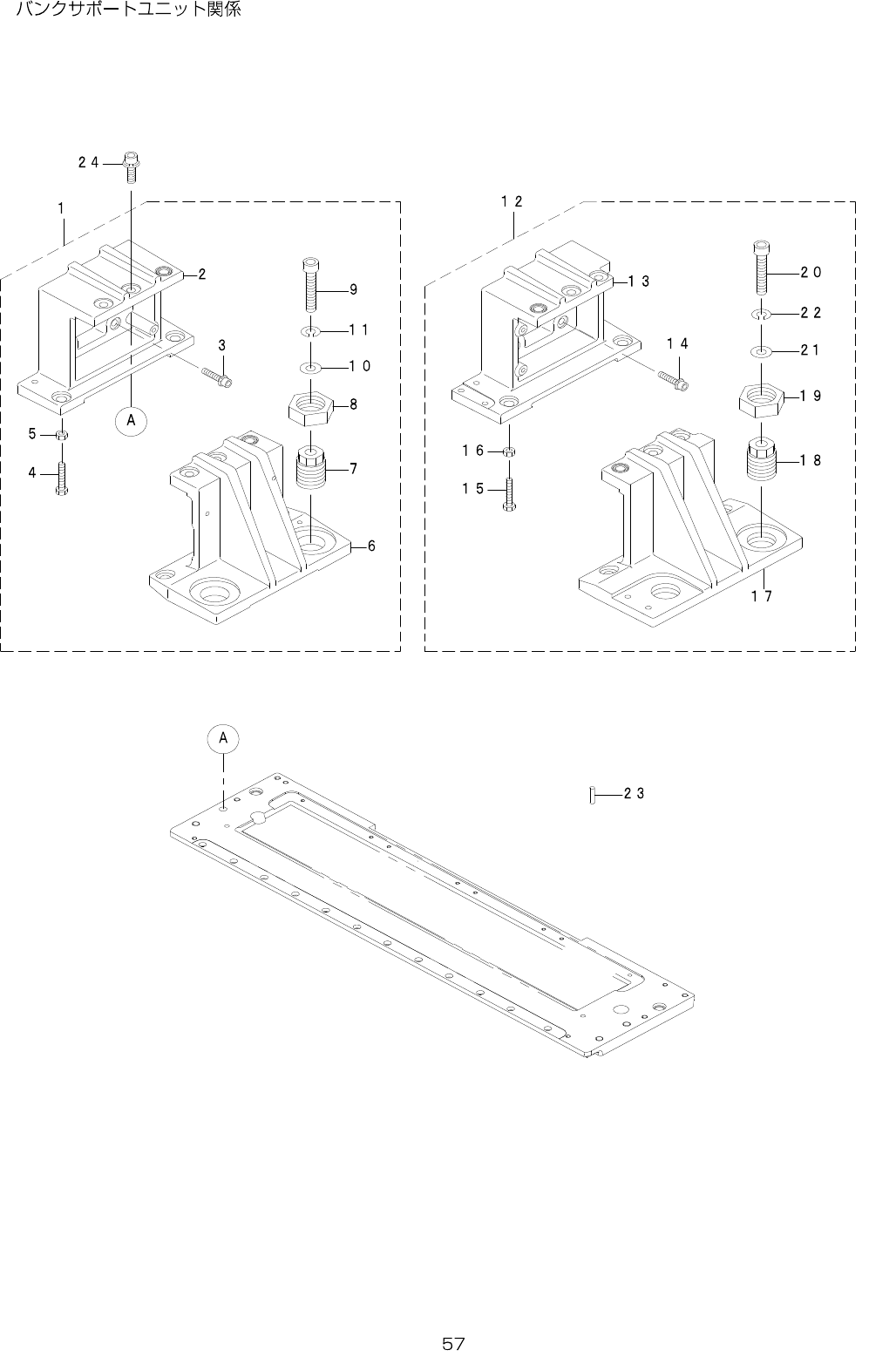

29.BANKSUPPORTUNITCOMPONENTS
