JM-100-Rev07 - 第66页

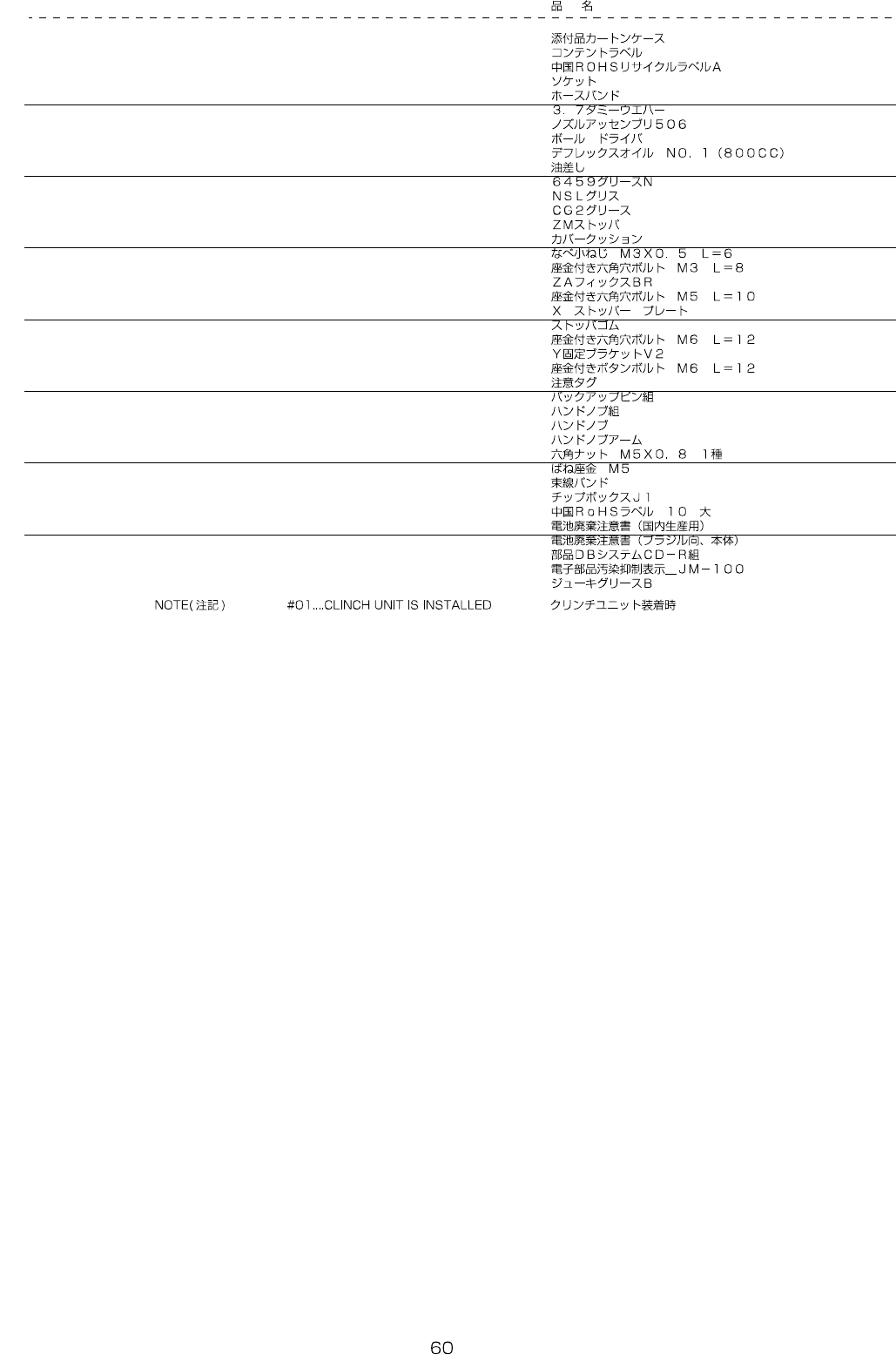

- - OPTION 31. FEEDERBANK COMPONENTS (1)
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1 400-77701 ACCESSORYCARTONCASE 1
2 E6953-861-B00 CONTENTLABEL 2
3 400-61008 CHINA_ROHS_RECYCLE_LABEL_A 1
4 PJ-0700000-01 SOCKET 1
5 161-21907 HOSEBAND 1
6 400-35043 3.7DUMMYWAFER 1
7 400-01344 NOZZLEASSEMBLY506 1
8 J1080-000-000 BALLDRIVER 1
9 MDF-RX1001L0-9 DEFRIXOILNO.1(800CC) 1
10 J1067-000-000 OILER 1
11 400-32449 6459GREASEN 1
12 400-94361 NSL_GREASE 1
13 400-46643 CG2GREASE 1
14 402-10361 ZM_STOPPER 2
15 400-49671 COVERCUSHION 8
16 SM-4030601-SC SCREWM3X0.5L=6 8
17 SL-6030892-TN SCREWM3L=8 4
18 402-06652 ZA_FIXED_BR 1
19 SL-6051092-TN SCREWM5L=10 1
20 L132E-821-000 XSTOPPERPLATE 1
21 E2424-725-000 STOPPERRUBBERR 1
22 SL-6061292-TN SCREWM6L=12 2
23 401-06051 Y_FIX_BR_V2 2
24 SL-3061232-TN SCREWM6L=12 8
25 400-87186 CAUTION_TAG 8
26 400-34506 BACKUPPINASSEMBLY 12
27 400-72349 HANDKNOBASM 1
28 400-72363 HANDKNOB (1)
29 400-72364 HANDKNOBARM (1)
30 NM-6050001-SC NUTM5X0.8TYPE1 (1)
31 WS-0510002-KN SPRINGWASHERM5 (1)
32 EA-9500B02-00 CABLEBAND 10
33 402-14550 CHIP_BOX_J1 1
34 CM-6005001-03 CHINAROHSLABEL10L 1
35 400-81445 INFORMATIONOFTHEBATTERYDISPOSAL(JP) 1
36 400-89308 INFOOFTHEBATTERYDISPOSAL(FORBRAZIL) 1
37 400-99050 COMPONENTDBSYSTEMCD-RASM 1
38 402-06234 E-PARTCOMPPOLLUTIONJM-100 1
39
#01
400-13640 JUKI_GREASE_B_TUBE 1
- -
OPTION

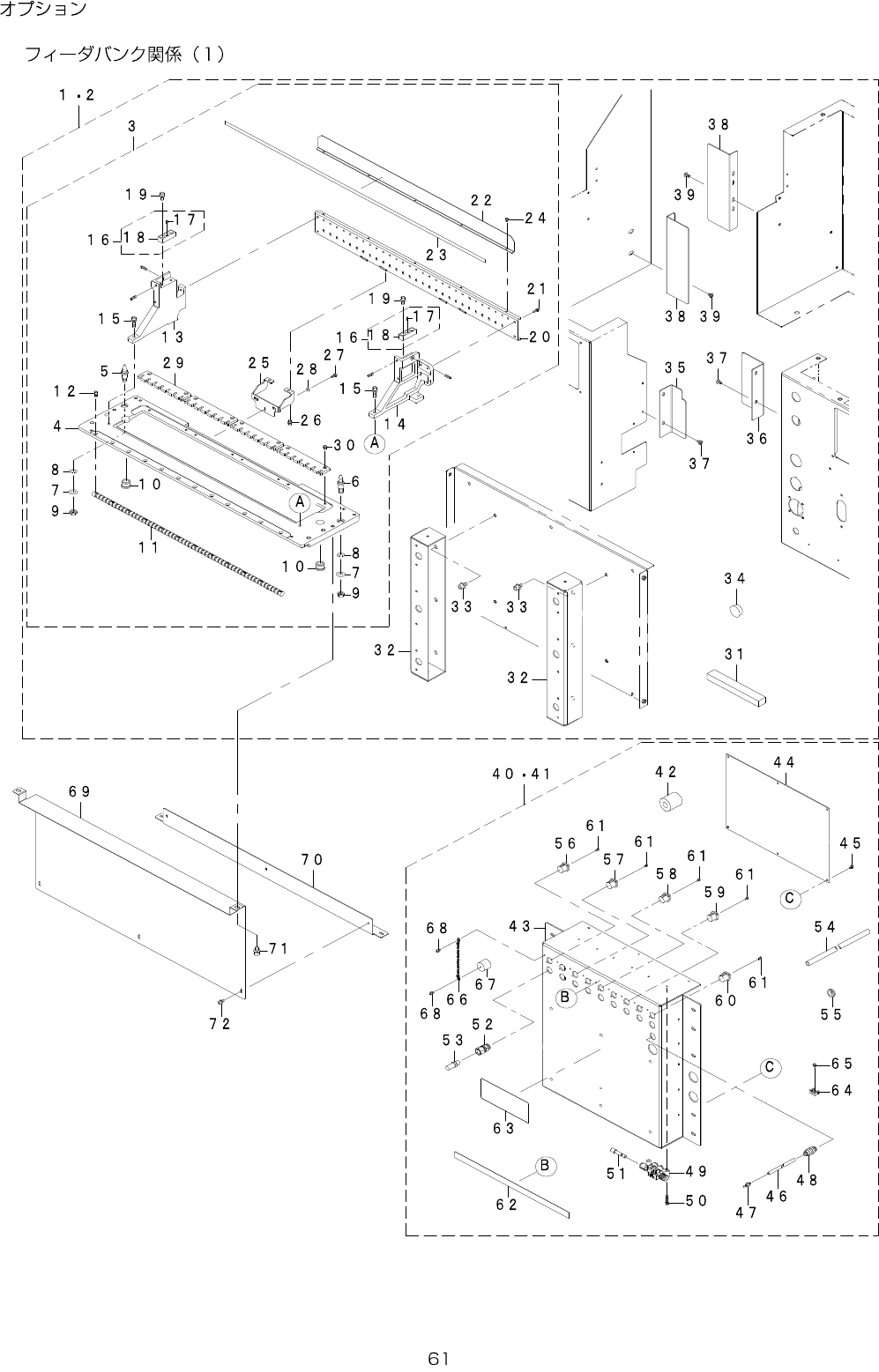

31.FEEDERBANKCOMPONENTS(1)
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1
#01
402-07408 BANK_UNIT_FS 1
2
#02
402-07409 BANK_UNIT_RS 1
3 402-07387 BANK_ASM_J1 (1)
4 402-06443 BANK_BASE (1)
5 E2609-721-000 BANKLOCATEPINA (1)
6 E2610-721-000 BANKLOCATEPINB (1)
7 WP-0841601-SC WASHERM8 (2)
8 WS-0820002-KN SPRINGWASHERM8 (2)
9 NM-6080003-SC NUTM8X1.25TYPE3 (2)
10 E2602-721-000 BANKLOCATEBUSHA (2)
11 402-06452 LOCK_SH (1)
12 SM-6040802-TN SCREWM4X0.7L=8 (12)
13 E2502-729-000 PLATESTANDL (1)
14 E2503-729-000 PLATESTANDR (1)
15 SL-6052092-TN SCREWM5L=20 (4)
16 E2505-729-0A0 MARKASM. (2)
17 E2601-725-000 MARK (1)
18 E2505-729-000 MARKBASE (1)
19 SL-6041292-TN SCREWM4L=12 (4)
20 402-06448 FIXING_PLATE (1)
21 SL-6041292-TN SCREWM4L=12 (5)
22 402-06450 NUMBER_PLATE (1)
23 402-06455 POSITION_LABEL (1)
24 SM-6030552-KS SCREW (5)
25 402-06449 PLATE_SUPPORT (2)
26 SL-6040892-TN SCREWM4L=8 (4)
27 SL-6031092-TN SCREWM3L=10 (6)
28 WP-0430801-SC WASHERM4 (6)
29 402-06451 FIXING_PLATE_B (4)
30 SM-4040655-SN SCREWM4X0.7L=6 (8)
31
#02
401-99894 SEALING_PACKING_140 (1)
32 401-36921 CONECTOR_BR_SUPPORT (2)
33 SL-6061292-TN SCREWM6L=12 (4)
34 HX-0032600-0A GROMMET (1)
35
#01
402-06647 SIDE_COVER_FL_FIX (1)
36
#01
402-06648 SIDE_COVER_FR_FIX (1)
37
#01
400-81751 B_COVER_SCREW (4)
38
#02
402-06638 SIDE_COVER_R_FIX (2)
39
#02
400-81751 B_COVER_SCREW (4)
40
#02
402-07397 CONNECTOR_BRACKET_UNIT 2
41
#03
402-07398 CONNECTOR_BRACKET_UNIT_EN 2
42
#03
EZ-1482181-11 FERRITECLAMP(GRFC-13) (1)
43 402-06444 CONNECTOR_BR (1)
44 401-30360 FEEDERI/FPCBASM (1)
45 SL-4030691-SC SCREWM3L=6 (6)
46 BT-0600400-EC URETHANETUBEBLUE6X4 (1)
47 PJ-0320090-05 AIRCOUPLERNIPPLE (1)
48 PJ-2300061-00 PARTITIONUNION06 (1)
49 PJ-3090600-03 QUICKMANIFOLD5PX6 (3)
50 SL-6032092-TN SCREWM3L=20 (6)
51 PX-9500010-00 PLUG6 (1)
52 PJ-3010651-06 FEMALEUNION (9)
53 E2904-700-000 SOCKET (9)
54 BT-1000651-EA URETHANETUBEBLUE10X6.5 (1)
55 HX-0022100-0F GROMMET (1)
56 402-05750 RADIALCBCABLE1ASM (1)
57 402-05751 RADIALCBCABLE2ASM (1)
58 402-05752 RADIALCBCABLE3ASM (1)
59 402-05753 RADIALCBCABLE4ASM (1)
60 402-05754 RADIALCBCABLE5ASM (1)
61 SM-4850501-SC SCREWM2.5L=5 (18)
62 402-06454 CONN_LABEL_MI (1)
63 401-36861 MI_BANK_CON_NOTICE_LABEL (1)
64 HX-0029400-00 FIXEDBASE (14)
65 SL-4030591-SC SCREWM3L=5 (14)
66
#03
401-16750 BALL_CHAIN (9)
67
#03
401-16749 CONNECTOR_CAP (9)
68
#03
SL-6030692-TN SCREWM3L=6 (18)
69
#03
402-11111 BANK_UNDER_COVER_S 1
70
#03
402-11112 BANK_UNDER_COVER_BR_S 1
71
#03
SL-6061292-TN SCREWM6L=12 2
72
#03
SL-6040892-TN SCREWM4L=8 3
