PREVENTIVE MAINTENANCE
CLEANING, LUBRICATION AND MAINTENANCE DIAGRAMS
1.58 Maintenance Manual Chapter Issue 2, July 16
Camera System (Rotary)
Figure 1-6 Top View of Camera System
Item Description Item Description
1 Camera Y Belt 4 Camera X Belt
2 Y Axis Linear Bearing Guides 5 X Axis Linear Bearing Guide
3 Camera Lenses
PREVENTIVE MAINTENANCE
CLEANING, LUBRICATION AND MAINTENANCE DIAGRAMS
Chapter Issue 2, July 16 Maintenance Manual 1.59

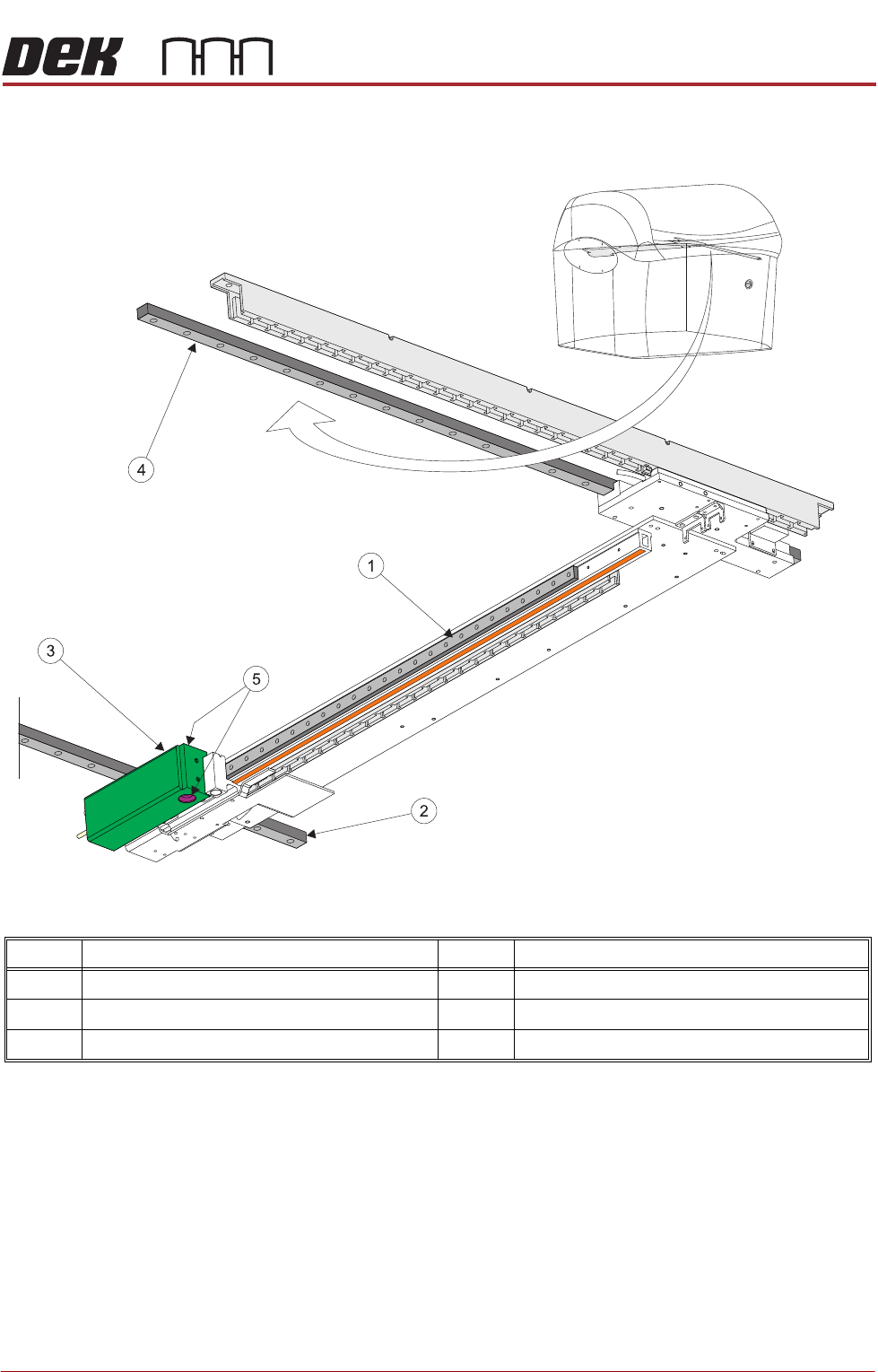

Camera System (Linear)
Figure 1-7 Underside View of Camera System
Item Description Item Description
1 Camera X Linear Bearing Guide 4 Camera Y Linear Bearing Guide (right)
2 Camera Y Linear Bearing Guide (left) 5 Camera Lenses
3Camera
PREVENTIVE MAINTENANCE
CLEANING, LUBRICATION AND MAINTENANCE DIAGRAMS
1.60 Maintenance Manual Chapter Issue 2, July 16
Chase Omni Track Bearings
Figure 1-8 Left Side View on Chase Assembly
Item Description Item Description
1 Omni Track Bearings (in 4 Positions) 4 Omni Bearing
2Chase Clamp 5Chase
3 Track Plate
