PREVENTIVE MAINTENANCE CLEANING, LUBRICATION AND MAINTENANCE DIAGRAMS 1.66 Maintenance Manual Chapter Issue 2, July 16 Squeegee Mechanism Figure 1-14 V iew on Squeegee Mechanism Item Description Item Description 1 Leadsc…
PREVENTIVE MAINTENANCE
CLEANING, LUBRICATION AND MAINTENANCE DIAGRAMS
Chapter Issue 2, July 16 Maintenance Manual 1.65
Stencil Change Mechanism
Figure 1-13 View on Stencil Change Mechanism and Drip Tray
Item Description Item Description
1 Auto Drip Tray Actuator Piston 3 Stencil at Stop Sensor
2 Auto Drip Tray 4 Stencil Stop Actuator Arm Lever
PREVENTIVE MAINTENANCE
CLEANING, LUBRICATION AND MAINTENANCE DIAGRAMS
1.66 Maintenance Manual Chapter Issue 2, July 16
Squeegee Mechanism
Figure 1-14 View on Squeegee Mechanism
Item Description Item Description
1 Leadscrew (rear squeegee leadscrew not shown) 4 Grease Nipples
2 Supernut (rear squeegee supernut not shown) 5 Drive Belts
3 Spindle Shafts
PREVENTIVE MAINTENANCE
CLEANING, LUBRICATION AND MAINTENANCE DIAGRAMS
Chapter Issue 2, July 16 Maintenance Manual 1.67
ProFlow

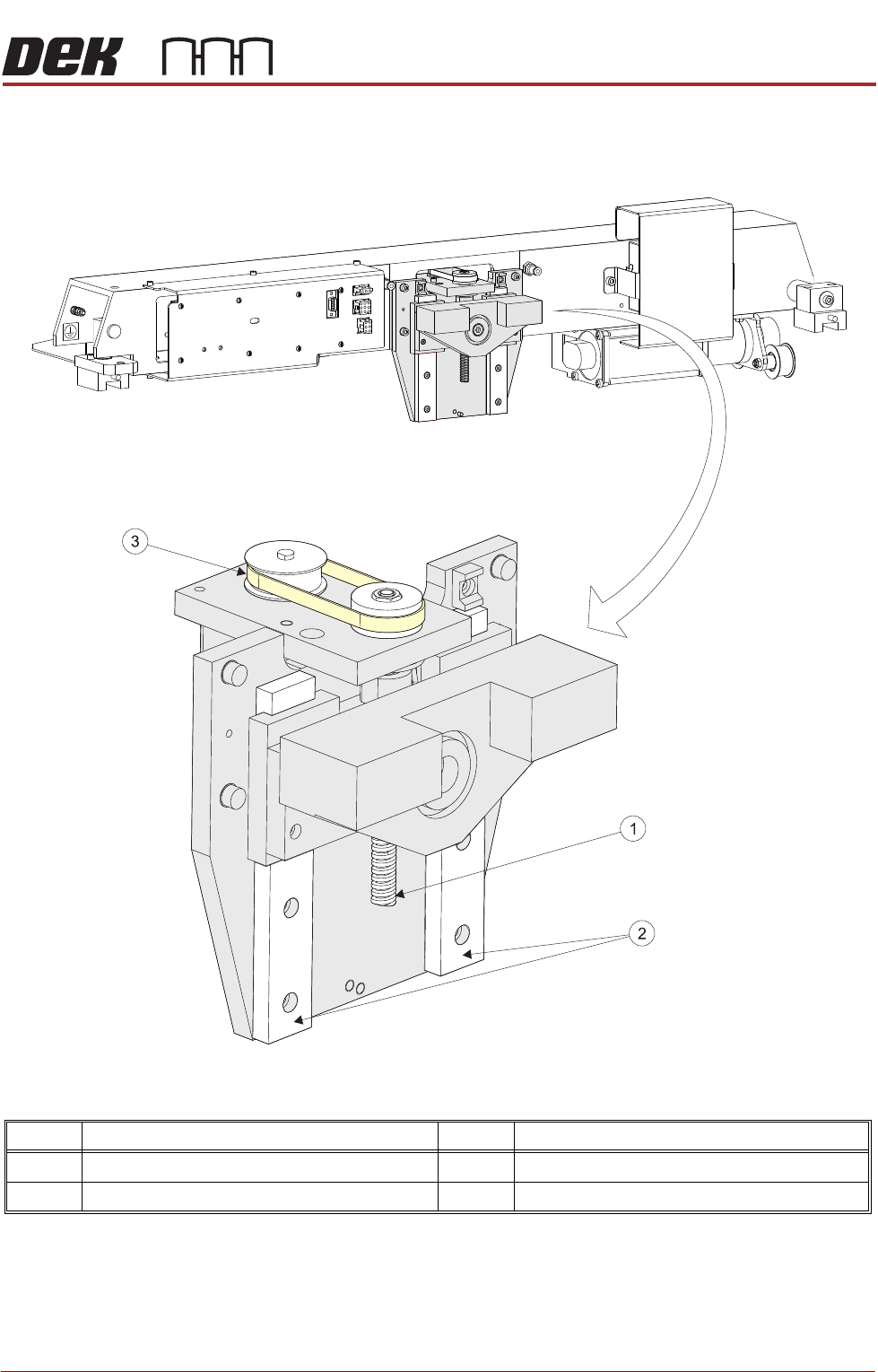

Figure 1-15 View on ProFlow Mount
Item Description Item Description
1 Leadscrew 3 Drive Belt
2 Linear Bearing Guides
