VACUUM FILTRATION UNITS FILTER REPLACEMENT 2.8 Maintenance Manual Chapter Issue 2, Jul 16 unit. 8. Release the filter ret aining clip (7) to detach the carbon filter u nit from the vacuum filtration unit. 9. Remove the c…
VACUUM FILTRATION UNITS
FILTER REPLACEMENT
Chapter Issue 2, Jul 16 Maintenance Manual 2.7
side and one on the right side of the vacuum filtration unit.
5. Carefully slide the vacuum filtration unit out of the machine ensuring that the
cables do not snag and place the unit on the floor.
6. Disconnect the mains connector (5) from the vacuum filtration unit.
7. Disconnect the communications connector (6) from the vacuum filtration
4
VACUUM FILTRATION UNITS
FILTER REPLACEMENT
2.8 Maintenance Manual Chapter Issue 2, Jul 16
unit.
8. Release the filter retaining clip (7) to detach the carbon filter unit from the
vacuum filtration unit.
9. Remove the carbon filter unit.
6
5
7
VACUUM FILTRATION UNITS
FILTER REPLACEMENT
Chapter Issue 2, Jul 16 Maintenance Manual 2.9

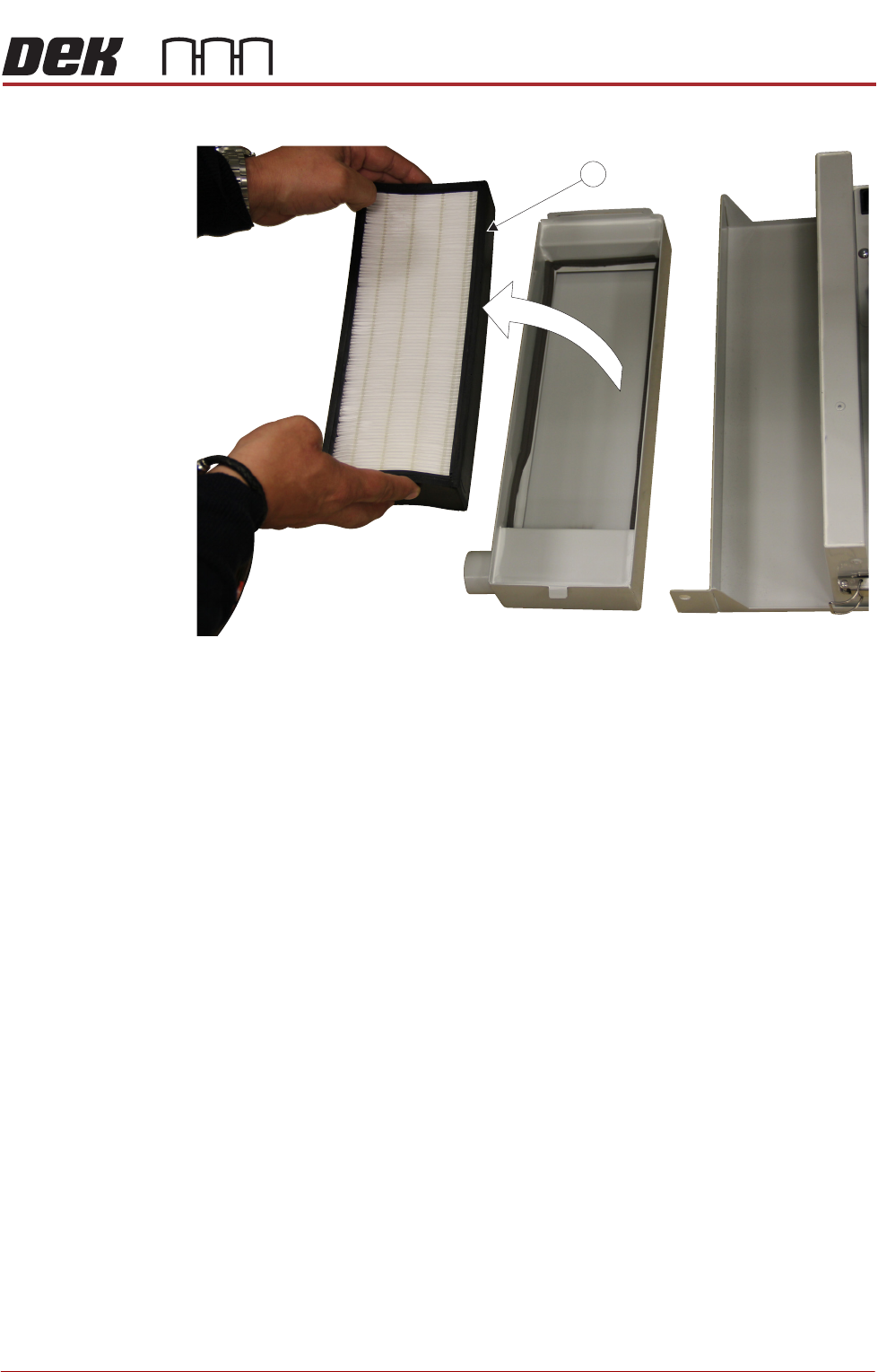

10. Lift the pre-filter unit (8) from the carbon filter unit.
11. Replace the pre-filter as required and refit the pre-filter into the carbon filter
unit.
12. Refit the carbon filter unit to the vacuum filtration unit.
13. Secure the carbon filter unit using the filter retaining clip.
14. Refit the vacuum filtration unit and secure with securing screws.
15. Refit and secure the air duct to the carbon filter unit.
16. Refit the panel removed in Step 2.
8
