VACUUM FILTRATION UNITS FILTER REPLACEMENT 2.14 Maintenance Manual Chapter Issue 2, Jul 16 Figure 2-1 View on Front o f Machine with Front Cover Removed Item Description Item De scription 1 Machine Frame 3 Filter Case 2 …
VACUUM FILTRATION UNITS
FILTER REPLACEMENT
Chapter Issue 2, Jul 16 Maintenance Manual 2.13
VF10 Vacuum Filtration Unit
MANDATORY
TOXIC CHEMICALS MAY BE PRESENT. SAFETY GLOVES MUST BE WORN.
MANDATORY
TOXIC CHEMICALS MAY BE PRESENT. EYE PROTECTION MUST BE WORN.
Location
1
2
3
4
VACUUM FILTRATION UNITS
FILTER REPLACEMENT
2.14 Maintenance Manual Chapter Issue 2, Jul 16
Figure 2-1 View on Front of Machine with Front Cover Removed
Item Description Item Description
1 Machine Frame 3 Filter Case
2 Vacuum Tooling (if fitted) 4 VF10 Vacuum Filtration Unit
VACUUM FILTRATION UNITS
FILTER REPLACEMENT
Chapter Issue 2, Jul 16 Maintenance Manual 2.15
Filter Replacement To replace the filter in the Vacuum Filtration Unit, carry out the following:
NOTE
Numbers in brackets e.g. (1), refers to the numbers in the graphics in the
procedure.
1. Ensure the machine is switched OFF.
2. Remove the machine front panel.
3. Unscrew the filter case from the vacuum filtration unit.

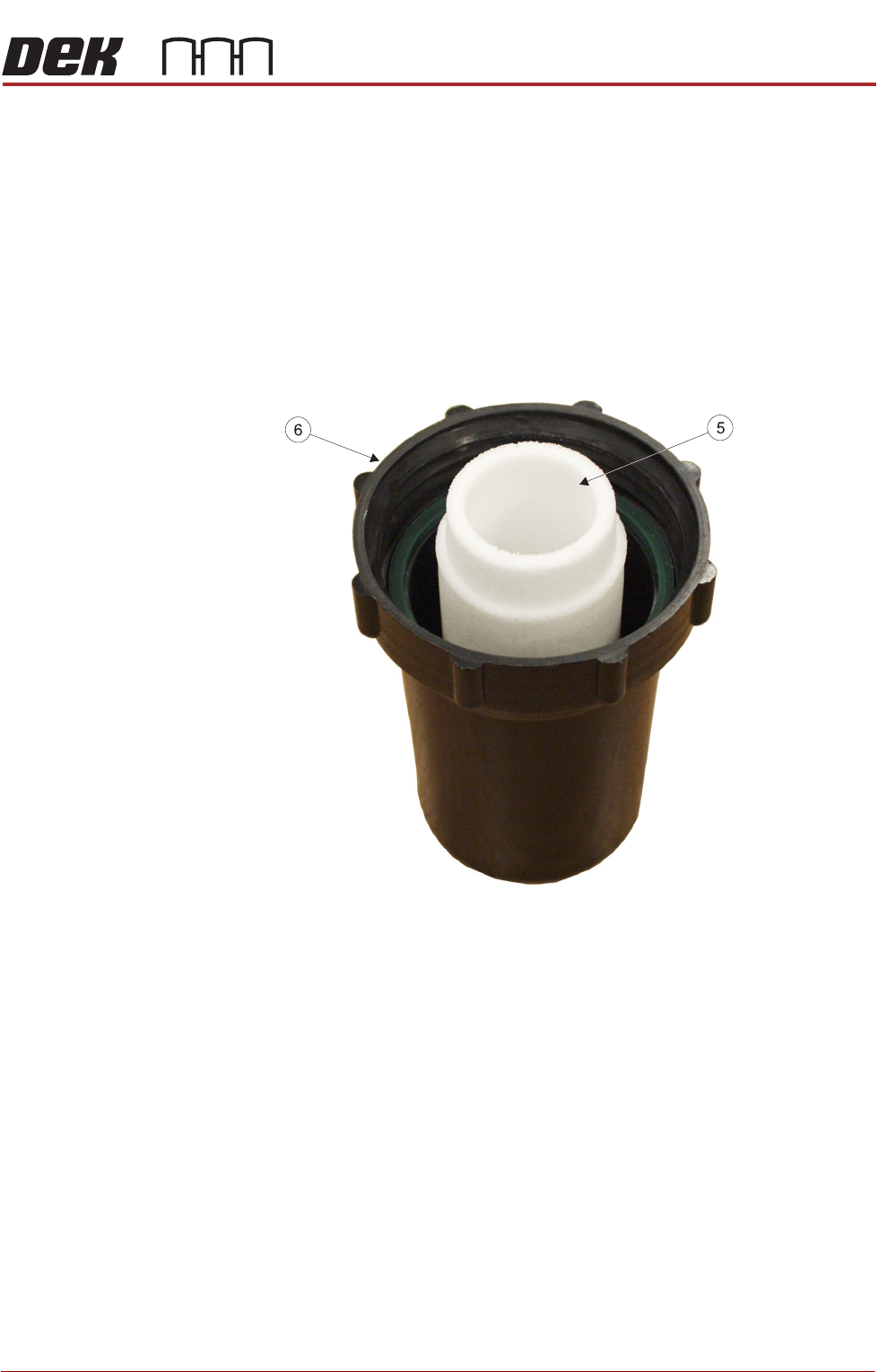

4. Replace the white HDPE foam filter (5) and refit the filter case (6) to the
vacuum filtration unit.
5. Refit the panel removed in Step 2.
