SIPLACE Pro 3.0 Programming Interface for Component Shapes
SIPLACE Pro Reports for LC Import and Conversion Procedure Converting the Component Shape with LC Import from a UNIX/LINUX Line
Student Guide SIPLACE Vision (Customer)
Edition 12/2008 EN SIPLACE Pro 3.0 Programming Interface for Component Shapes
161
7.2.3 SIPLACE Pro Reports for LC Import and Conversion Procedure
Notification message and error reports
LC import report
Any messages and errors from the LC import procedure are displayed in the CS programming window.
Right-click with the mouse (as always in SIPLACE Pro) to save these reports as files.
Example.: C:\log file\notification_LRU_imp_030305.xml (we recommend adding the task and date to the
file name).
Inspection and type conversion report
This function shows where the automatic CS interpretation function (for recognition in SIPLACE Vision)
achieved unclear results. By correcting the original data, you can usually find a common data basis for
both Vision systems (ICOS description rules are flexible). However, should this fail, separate group and
lead descriptions can be set up for the component shape. In extreme cases, a totally new component
description can be created for SIPLACE Vision.
Component shape check (plausibility test) report
This tool allows SIPLACE Pro to follow the same procedure as SIPLACE Vision and check that a
component adheres to the description rules.
Excerpt from error list file
……
Error! Hyperlink reference invalid.
<NotificationElement>
<Category>Component Shape Type</Category>
<Text>Josef\10704 was recognized as Plcc</
Text>
<Type>3</Type>
<TimeStamp>3:58:34 PM</TimeStamp>
</NotificationElement>
Error! Hyperlink reference invalid.
<NotificationElement> error converting CS
<Category>Component Shape Type</Category>
<Text>Josef\3159: Component Shape Type was
recognized as 'Soxx' but reset to 'Undefined'
because of compatibility problems to SIPLACE
Vision, error code:...</Text>
<Type>1</Type>
<TimeStamp>3:58:34 PM</TimeStamp>
</NotificationElement>
……
SIPLACE Pro 3.0 Programming Interface for Component Shapes
Converting the Component Shape with LC Import from a UNIX/LINUX Line Computer SIPLACE Pro Reports for LC Import and Conversion
Student Guide SIPLACE Vision (Customer)
SIPLACE Pro 3.0 Programming Interface for Component Shapes Edition 12/2008 EN
162
Correction
CS type correction:) If the component shape needs to be corrected, the edited values will be
overwritten by standard values (without query), if the description rules do not correspond with the
new type.
CS body correction:
If the component body needs to be corrected, the edited values will be overwritten by standard
values (without query).
CS lead type correction:
If the component shape lead type needs to be corrected, the edited values will be overwritten by
standard values (without query).
Additional tools will be provided with SIPLACE Pro 3.1
CS report tools:
SIPLACE Pro individual shape report; excerpts
from ICOS and SIPLACE Vision
Changing the lead group offsets directly
influences the placement accuracy or
component placement. SIPLACE Pro 3.1 CS
report via component shape directory or
component shape selection
SIPLACE Pro 3.0 Programming Interface for Component Shapes
Programming Interface for Body Dimensions and 'Basics' Programming the Component Shapes in SIPLACE Vision
Student Guide SIPLACE Vision (Customer)
Edition 12/2008 EN SIPLACE Pro 3.0 Programming Interface for Component Shapes
163
7.3 Programming the Component Shapes in SIPLACE Vision
The SIPLACE Pro component shape editor allows you to program component shapes for optical
centering in SIPLACE Vision (on X machines) and in ICOS systems (on H, HS and S, F machines.
The basic features of the SIPLACE Pro programming interface are shown in the screenshots for the
individual sections.
Use the TAB button to confirm the individual programming values. You can then see whether the
value entered is plausible.

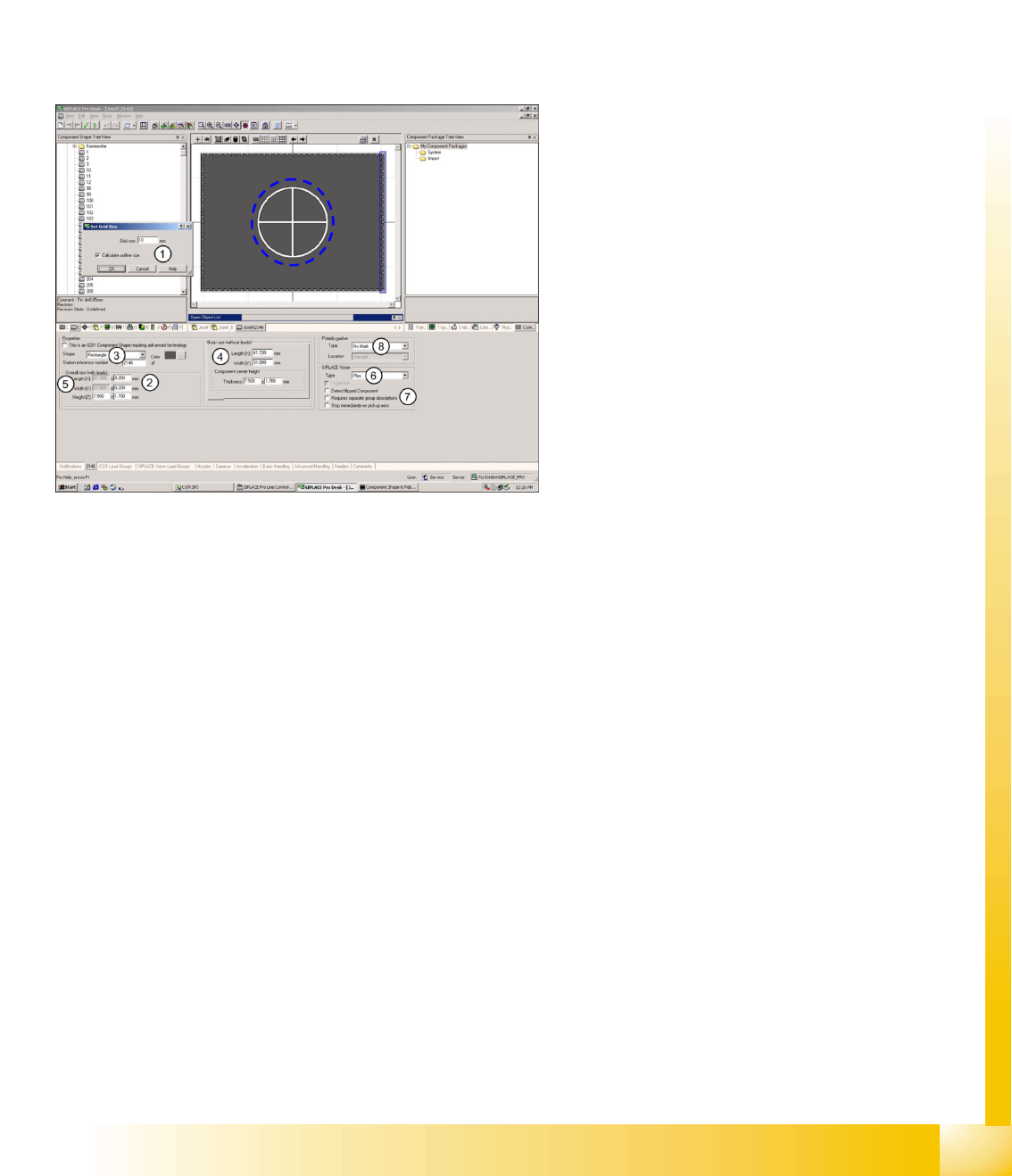

7.3.1 Programming Interface for Body Dimensions and 'Basics'
Legend
1. Option available: window for automatic
calculation of overall dimensions with leads.
2. CS dimensions with leads: X/Y target values
are insensitive when automatically calculated.
3. Body shape: rectangular, horizontal or vertical
(upright) cylinder.
4. Body dimensions without leads: individually
programmable (new) with CO height for CO
sensor
5. Insensitive target values: these will be
automatically calculated if option 2 is set.
6. SIPLACE Vision component type: 17 different
classifications possible. (minimum entry SV!)
7. SIPLACE Vision parameters: inspection
(component-specific); detected flipped
component; Requires separate group
description (for SV and ICOS); stop
immediately on pick up error.
8. Polarity marker in the component diagrams of
the SIPLACE Pro programming interface.
This does not influence optical centering in
SIPLACE Vision or ICOS.
The component diagram in the top middle window
shows the programming parameters for BOTH
Vision systems, if Requires separate group
description was selected and programmed.
