Vision Teach Station User Manual 7 Software
05/2015 Edition 7.2 Software upgrade
145
7.2.4 Installing the new version
7.2.4.1 Installing the CD "SIPLACE NET Support Media" CD
Insert the "SIPLACE NET Support Media" CD. If it does not start automatically, run the
AUTORUN.CMD file.
Select the "Requirements" button under "Analysis and Administration" and follow the instruc-
tions.

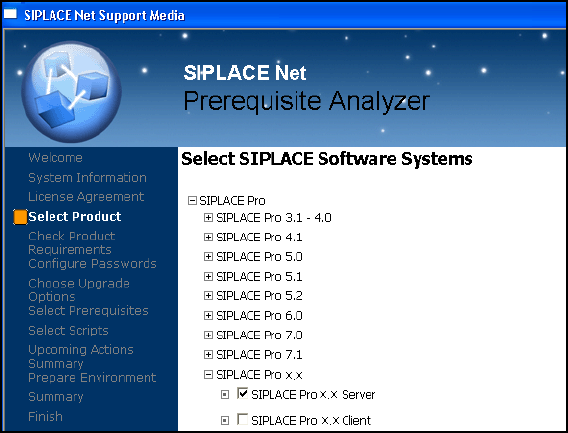

In the "Select SIPLACE Software Systems" window, select the
"Siplace Pro > Siplace Pro x.x > SIPLACE Pro x.x Server" product.
Fig. 7.2 - 2 Product choice für SIPLACE Pro x.x
7
If an SQL database already exists, the "Choose Upgrade Options" dialog box will be opened.
Select the update to the existing SQL version.
Let the "Server" option be selected in the "License Manager" window and click on "OK".
7 Software Vision Teach Station User Manual
7.2 Software upgrade 05/2015 Edition
146

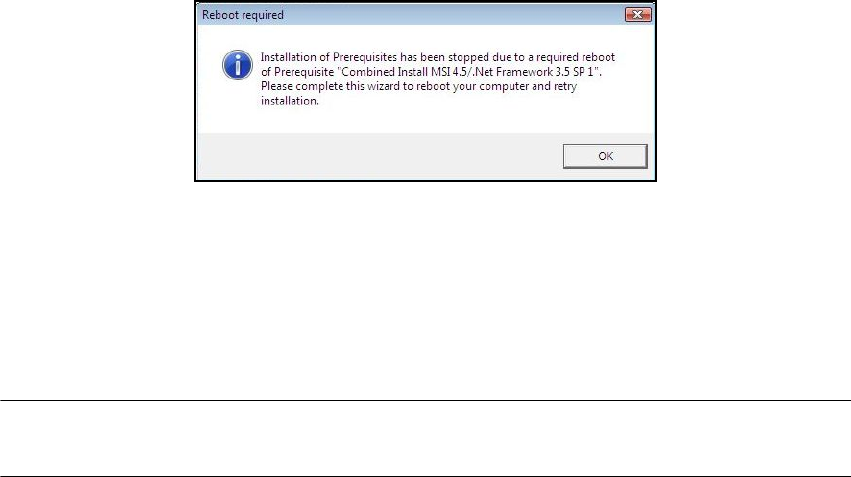

The updates of .NET-Framework 3.5 and Windows Installer 4.5 may need a restart. This will
NOT be automatically performed by the Suppot Media DVD. If displayed, confirm the
following message with "OK".
7
Click on "Next" several times until the wizard exits. In the last step the wizard performs the re-
start. After the subsequent run-up, the wizard continues installing.
Permit a restart after installation.
7.2.4.2 Installing the "SIPLACE Pro Application1" CD
PLEASE NOTE: Please ensure that you have a valid license key at your fingertips. During the
installation you will be prompted to enter this key. 7
Install SIPLACE Pro as described in the "SiplaceProInstall_eng.pdf" document ("SIPLACE Pro
Application" setup CD in the "Documentation" directory).
Select the "SIPLACE Pro programming system" type from the "Setup Type" window.
Vision Teach Station User Manual 7 Software
05/2015 Edition 7.2 Software upgrade
147
7
Fig. 7.2 - 3 Installing SIPLACE Pro - Selecting the setup type
When the License Manager is opened, import your license key via the "File" - "Import License
Key" menu item. For this you need the following password:
User ID: Administrator
Password: Siplace.1
7
Click Next to ignore the following message about remaining old files.
