MODEL RFK.MAGNET KIT 12 CODE No. LG4-M8AP9-000 APPLICABLE FEEDER F1-12 F2-12
I･pulse F1, F2 Series
F1-16, F2-16
【OPTION】
No. Code No. Parts Name Q'ty Parts No.
LG4-M8AP8-000
RFK.TAPE GUIDE 16 1 AS-A16-8119-03
1
LG4-M5AH2-000
TAPE GUIDE PLATE 1
FTA-A16-8119-03
2
LG4-M5A42-000
SHUTTER PLATE 1
FTA-A16-8120-C
3
LG4-M1A45-000 SHUTTER GUIDE PIN
2
FTA-A08-8121
4
LG4-M1A44-000 SHUTTER PUSH SPRING
1
FTA-A08-8122-B
5
LG4-M5A43-000 SHUTTER GUARD PLATE
1
FTA-A16-8123-B
6
LG4-M1A47-000 T.G. GUIDE PIN
1
FTA-A08-8125
7
LG4-M1A46-000 LOCK LEVER
1
FTA-A08-8127-B
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33

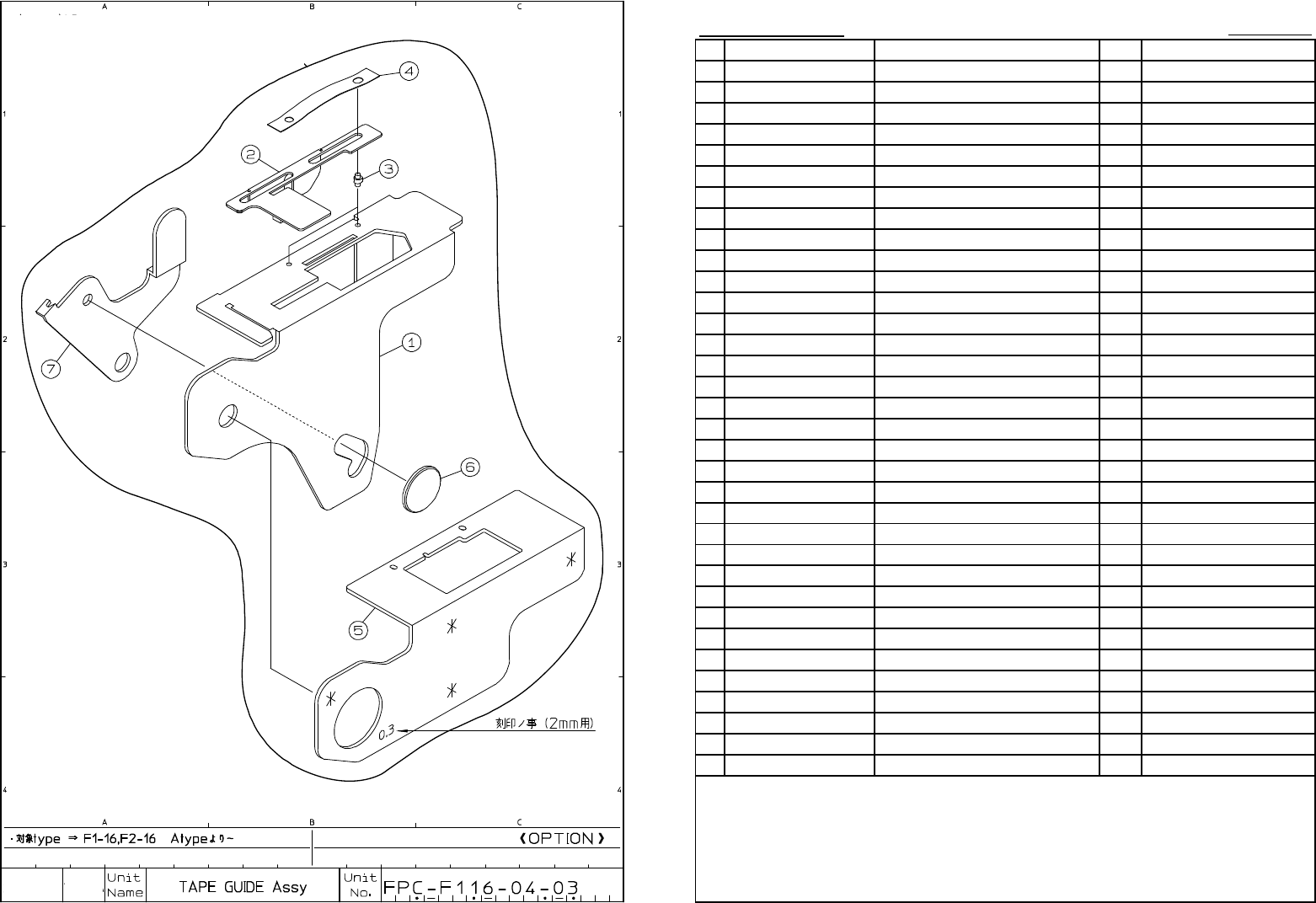

LG4-M8AP8-000
RFK.TAPE GUIDE 16
MODEL RFK.MAGNET KIT 12
CODE No. LG4-M8AP9-000
APPLICABLE FEEDER
F1-12
F2-12
I･pulse F1, F2 Series
F1-12, F2-12 (A type～)
【OPTION】
No. Code No. Parts Name Q'ty Parts No.
LG4-M8AP9-000 RFK.MAGNET KIT 12
1 AS1-A12-8128-MG
1 K87-M111G-000 PUSH PIN 1
CTF-M08- 16
2
LG4-M4AH4-000
MAGNET BLOCK 1
FTA-A12-8128-MG
3
LG4-M4AH5-000
MAGNET 1
FTA-A12-8128-MG1
4 K87-MB01H-000 BOLT,HEX SOCKET HEAD 1
3MX-8-P
5 K87-M111R-000 SCREW,SET 1
3MY-5-F
6
LG4-M4AH6-000 SHIM 0.5
1
FTA-A12-8128-05
7
LG4-M4AH7-000 SHIM 0.1
5
FTA-A12-8128-01
8
9
10
11
12
13
14
15
LG4-M8AP9-000
RFK.MAGNET KIT 12
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
