MODEL RFK.TAPE GUIDE 84 CODE No. LG4-M8APN-000 APPLICABLE FEEDER F1-84 : 1A～3900C
I･pulse F1 ＆ F2 Series
F1 (E type～) / F2 (B type～) - 16mm
P 4-OP2
No. Code No. Parts Name Q'ty Parts No.
S02D-M9J0C-000
T.G.PLATE ASSY 16 1 ASS-A16-8119-E1
1 LG4-M5A41-011
TAPE GUIDE PLATE 1
FTA-A16-8119-E1
2
LG4-M1A45-000 SHUTTER GUIDE PIN
2
FTA-A08-8121
3
LG4-M5A43-010 SHUTTER GUARD PLATE
1
FTA-A16-8123-C
4
LG4-M1A47-000 T.G. GUIDE PIN
1
FTA-A08-8125
5
LG4-M1A46-000 LOCK LEVER
1
FTA-A08-8127-B
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33

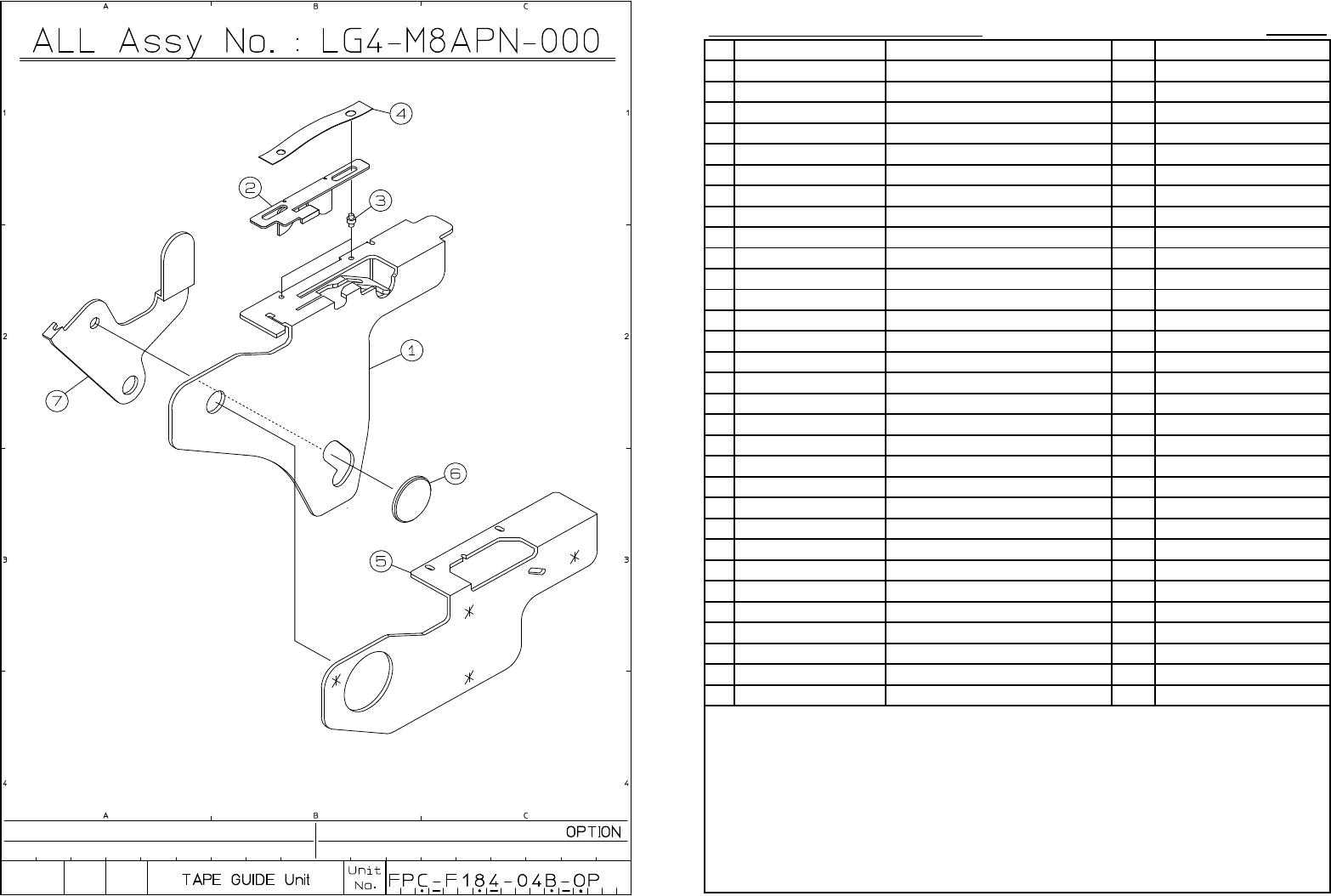

MODEL RFK.TAPE GUIDE 84
CODE No. LG4-M8APN-000
APPLICABLE FEEDER
F1-84 : 1A～3900C
I･pulse F1 Series
F1-84 (～ C type)
P 4-OP
No. Code No. Parts Name Q'ty Parts No.
LG4-M8APN-000
RFK. TAPE GUIDE 84 1
1 LG4-M1A41-010
TAPE GUIDE PLATE 1 FTA-A08-8119-C
2
LG4-M1A42-001
SHUTTER PLATE 1 FTA-A08-8120-C
3 LG4-M1A45-000
SHUTTER GUIDE PIN 2 FTA-A08-8121
4
LG4-M1A44-001
SHUTTER PUSH SPRING 1 FTA-A08-8122-B
5 LG4-M8APN-100
SHUTTER GUARD PLATE 1 FTA-A08-8123-F
6 LG4-M1A47-000
T.G. GUIDE PIN 1 FTA-A08-8125
7 LG4-M1A46-000
LOCK LEVER 1 FTA-A08-8127-B
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
F1-84 : 1A～3900C
